DKS 6002 - SECTION 2 - CONTROL PANEL INSTALLATION & WIRING

SECTION 2 – CONTROL PANEL INSTALLATION & WIRING
Before attempting to connect any wiring to the control panel, be sure that the circuit breaker in the
electrical panel is in the OFF position. Permanent wiring must be installed to the operator as required
by local electrical codes. It is recommended that a licensed electrical contractor perform this work.
Since building codes vary from city to city, we highly recommend that you check with your
local building department prior to installing any permanent wiring to be sure that all wiring to
the operator (both high and low voltage) complies with local code requirements.
THIS CONTROL BOX MUST BE PROPERLY GROUNDED!!
2.1 Typical Installation / Conduit Requirements

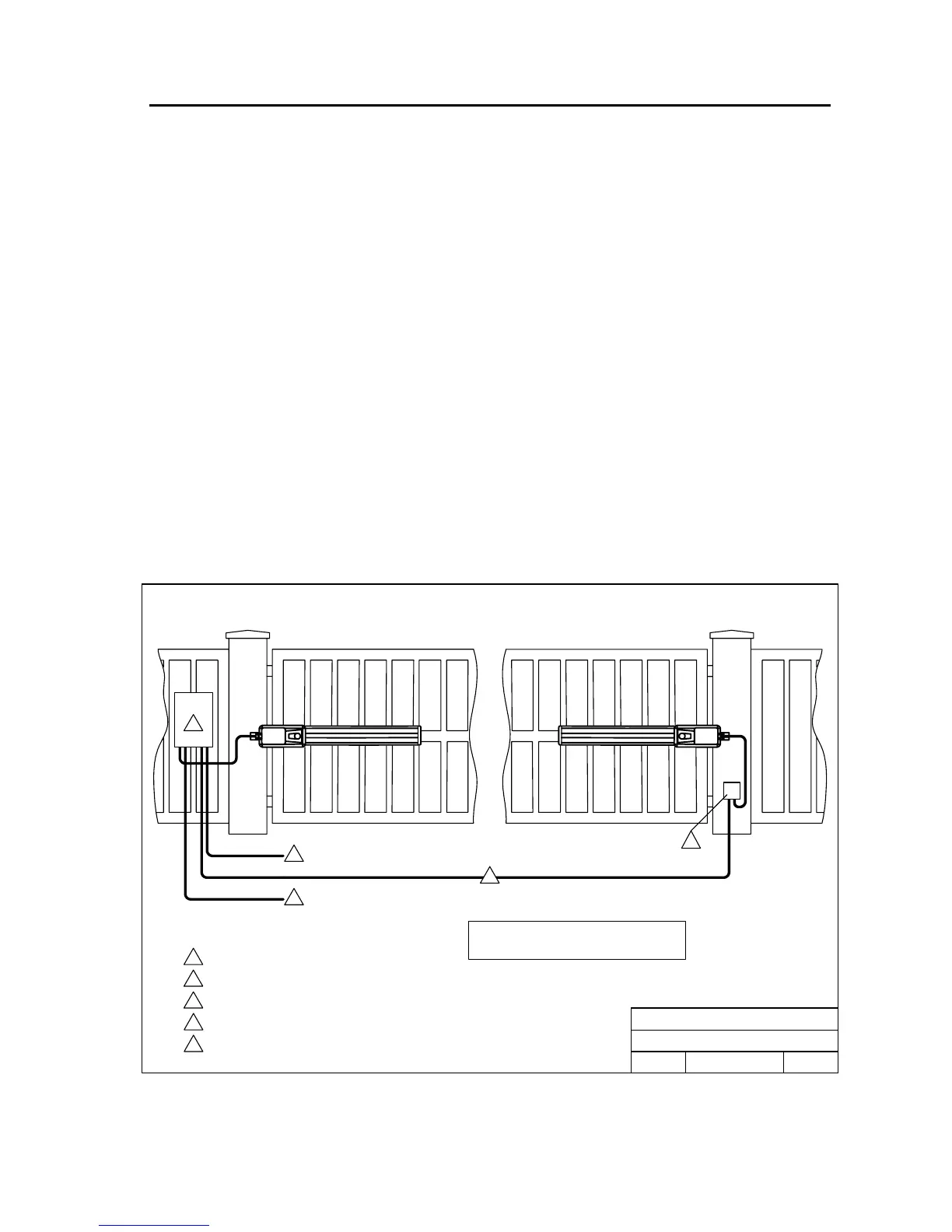

• The conduit requirements shown in figure 13 are for a typical dual swing gate installation.
The conduit requirements for your application may vary from this depending on your specific
needs.
• Use only sweeps for conduit bends. Do not use 90° connectors as this will make wire pulls
very difficult and can cause damage to wire insulation.
• Be sure that all conduits are installed in accordance with local codes.
3
4
1
2
5
Not shown in drawing:
1. Secondary entrapment prevention device(s).
2. Optional solar panel charging system.
DOORKING, INC., INGLEWOOD, CA 90301
Title:
Date: Rev.Dwg. No.
Model 6002 Actuator Typical Installation.
B
5/04 M6001-065-1
Control Panel.
1
Junction box (not supplied).
2
3
4
Lead-in wire(s) from loop(s).
5
115 VAC Input power.
Master / slave interface cable (not supplied).
