SECTION 3 – ADJUSTMENTS

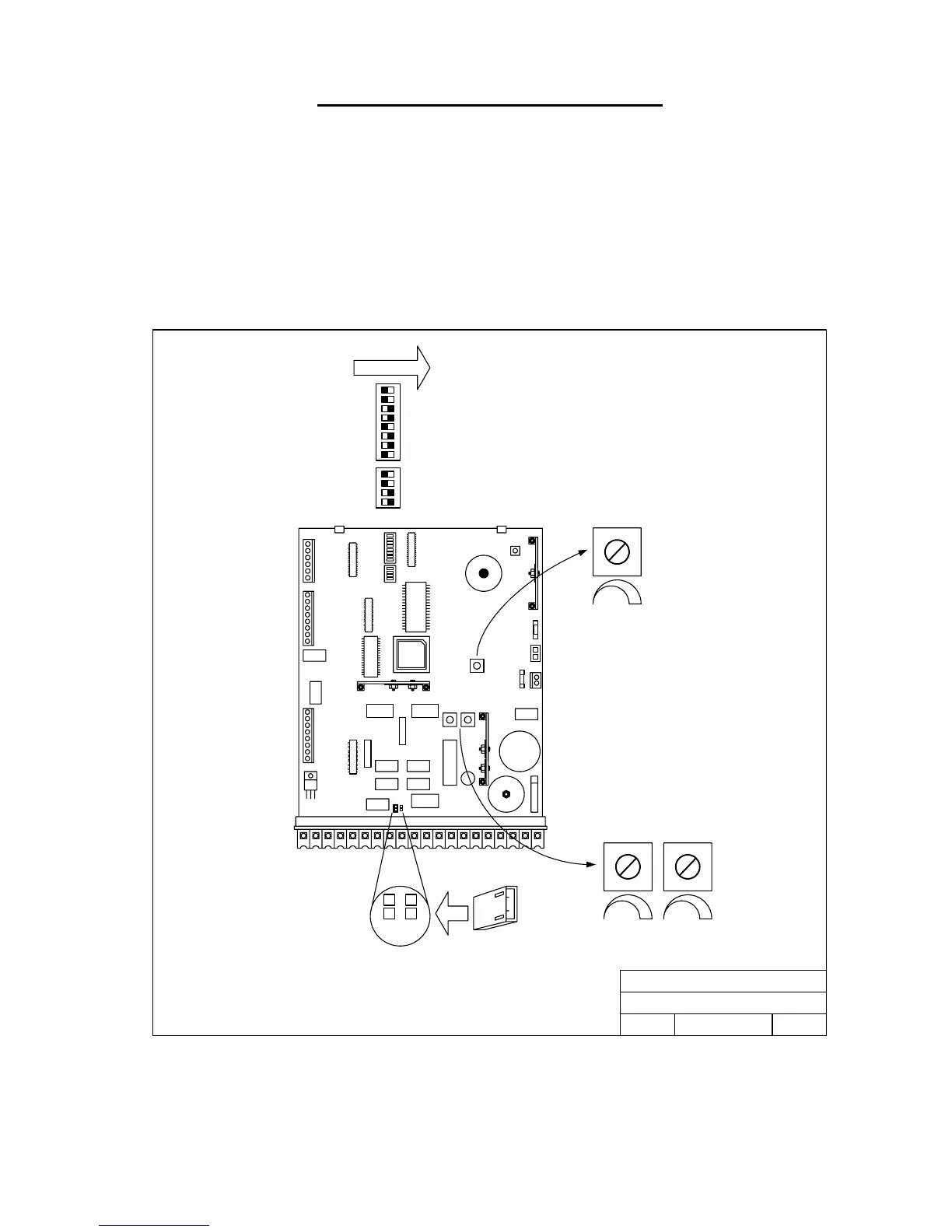

3.1 Control Board Adjustments
The switch settings and adjustments in this chapter should be made after your installation and wiring
to the operator(s) is complete. Whenever any of the programming switches on the circuit board
are changed, batteries and solar panels must be disconnected and main power must be shut-
off. After the switch settings are changed, turn main power on and then re-connect the
batteries and solar panels. The new switch settings will not take effect unless this procedure
is followed.
TIMER
MIN MAX
NC
NO
0 - 23 Seconds
SW1, Switch 4 ON
Relay Contact Setting
NO - Relay Normally Open (factory)
NC - Relay Normally Closed
REVERSE SENSOR
MIN MAX
MIN MAX
MASTER SLAVE
1
2
3
4
1
2
3
4
5
6
7
8
SW1 SW2
ON
DOORKING, INC., INGLEWOOD, CA 90301
Title:
Date: Rev.Dwg. No.
Control Board Adjustments
A
7/03 M6001-065-8
Figure 19
Page 27
