DMP Electronics 734 - Page 14

10 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
Zone 1
Zone 2
Zone 3
Zone 4
1
2
3
4 5 6 7
8
10
11 12 13 14
9
LC ASRED WHT GRN BLK Z1 Z2 Z3 Z4+ Z4–RA GND GND
1K EOL
1K EOL
1K EOL
1K EOL

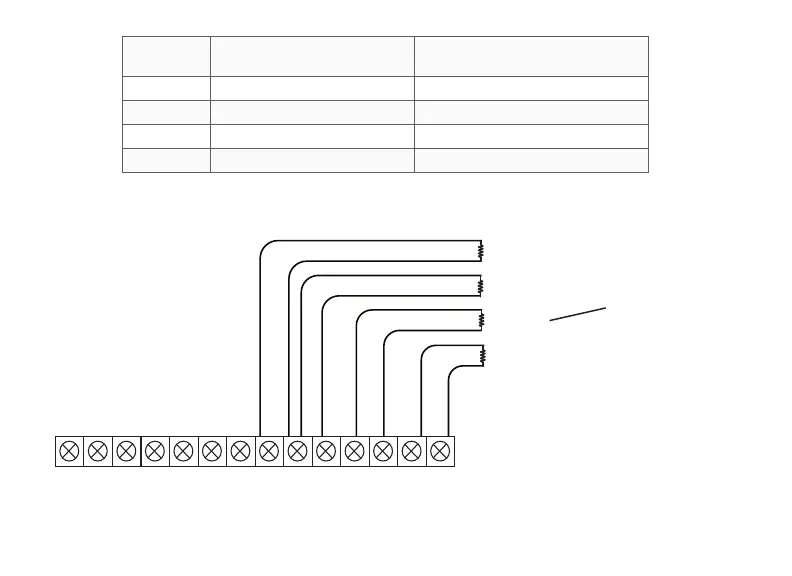

Figure8: 734 Zone Terminal Wiring
ZONE #
RECOMMENDED
DEVICE
RESIDENTIAL FIRE
DEVICES?
1 Any burglary device No
2 Door Contact No
3 REX (PIR or Button) No
4 Any device Yes
Table1: 734 Zone Uses
Zone 3 can also
be wired normally
closed with an
in-line 1K Ohm
resistor
