DMP Electronics 734 - PCB Features

Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 3

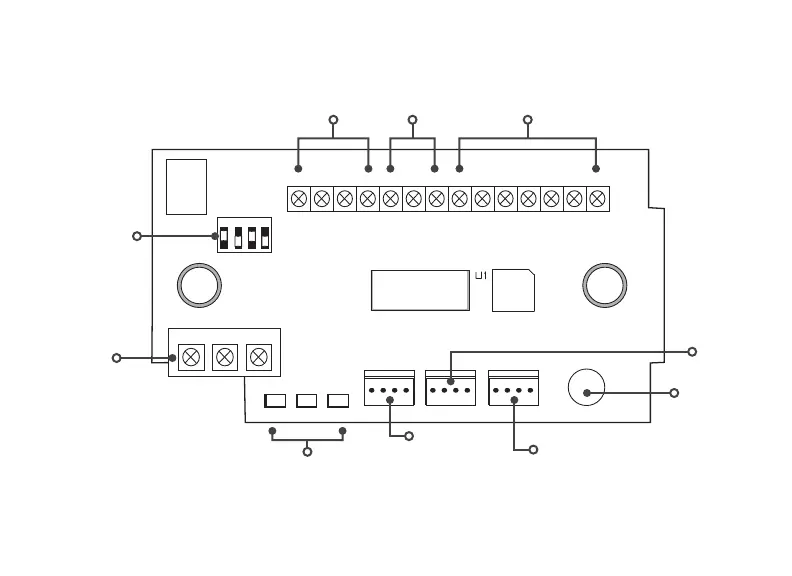

PCB FEATURES
RED
PROG
J2
RED
J5
J4
KYPD OUT
S1
J3
J1
DATA
XMT LED
WIEGAND
READ LED
RELAY
ON
NC
C
NO
GRN
YEL
RED
+ –
ON
Piezo
1
2
3
4 5 6 7
8
10
11 12 13 14
9
LC ASRED WHT GRN BLK Z1 Z2 Z3 Z4+ Z4–RA GND GND
KYPD IN
RED
Door Relay
Terminal
Wiegand
Inputs
Status
Indicator
Outputs
Zones
To Panel
Keypad Bus
or AX‑Bus
To Other
Keypad Bus
or AX‑Bus
Piezo
Indicator
LEDs
Keypad
Programming
Header
Address DIP
Switches
Figure1: PCB Features
