DMP Electronics 734 Installation And Programming Guide

Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 15
AX‑Bus Addresses Explained
XR550 panels are capable of access
control expansion using any of the five
AX/LX‑Bus headers (AX/LX500, 600,
700, 800, and 900). An AX‑Bus address
can accommodate one door output and
one expansion zone. Because the 734
has a built‑in four‑zone expander, three
extra zones will be mapped to the 734
automatically.
A 734 with an address of 1 on AX500 would
represent door501 and zones501‑504. A
734 with an address of 2 on AX500 would
represent door505 and zones505‑508. A
734 with an address of 1 on AX700 would
represent door701 and zones701‑704.
Note: Hardwired zone expanders
and addressable points and
modules do not communicate on
an AX‑Bus. AX‑Bus doors do not
have programmable device or
communication types and do not have
assignable display areas.
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4

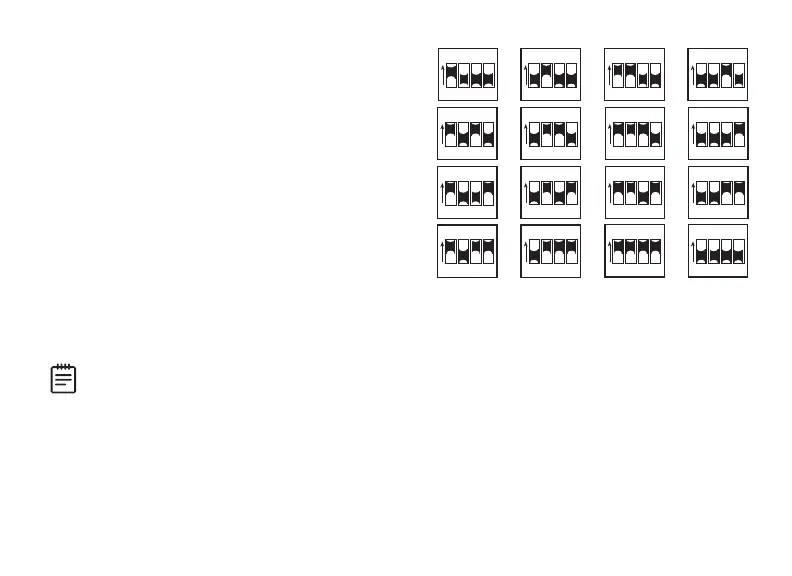

Figure11: AX‑Bus Addresses
