XT30/XT50 Installation Guide Digital Monitoring Products
21
WIRING DIAGRAMS
Wiring Diagrams

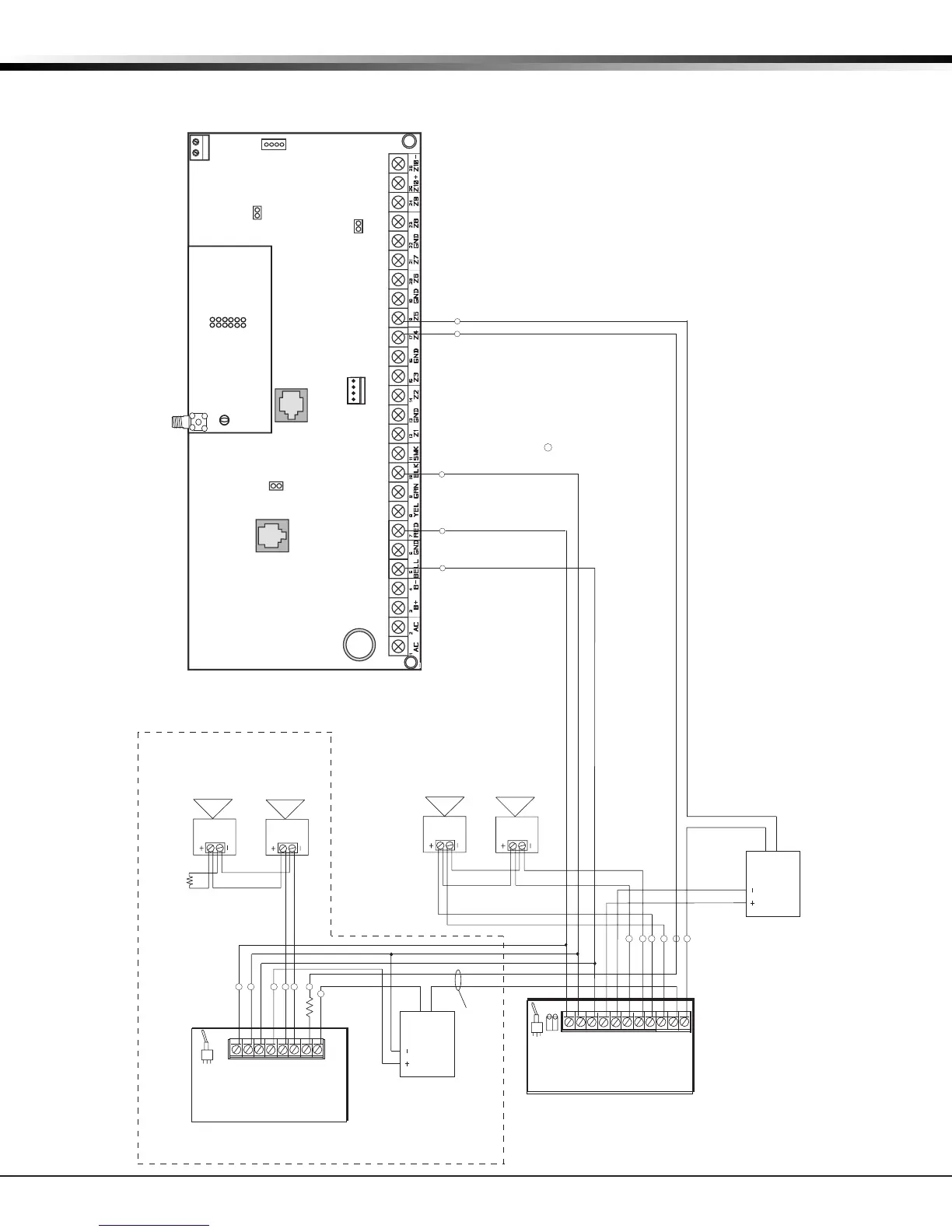

28.1 Multiple Indicating Circuit Modules Installation
J3
Phone Line
Outputs
J11
1
2
3
4
J1
Ethernet
J16
Reset
J20
Wireless
Antenna
connection
J7 RJ
Supervision
J24 Celllular
header
connection
J18
Load
RED
Programming
J8
S
AUXILIARY
POWER
SUPPLY
12 or 24VDC
5 Amp Maximum
Power Supply
Trouble Contacts
N/C
NOTE: If an auxiliary supply is not used,
terminals 3 and 4 on the 866 Indicating
Circuit Module can be jumpered together
to supply bell power from the XT30 panel.
Each 866 Indicating Circuit Module
in alarm draws up to 35mA from its
terminal 3 alarm input.
The Auxiliary Power Supply and Indicating Circuit Module
trouble contact zone must be programmed as a Supervisory
Type zone and must be selected for display in the keypad
status list.
= Supervised Circuit
S
1
2
3
4
5
6
7
8
Auxiliary Power
Ground
Alarm Input
Bell Power + Input
Bell Power Ð Input
Bell A + Output -
Bell A Ð Output
Bell B + Output
Bell T rouble
Bell T rouble
Bell B Ð Output
9
10
11
UL Listed, Polarized
Indicating Devices.
Style Z
Notification Circuit Modul
e
DMP Model 865
85mA at 12VDC
AUXILIARY
POWER
SUPPLY
Power Supply
Trouble Contacts
N/C
S
S
1
2
3
4
5
6
7
8
Auxiliary Power
Ground
Alarm Input
Bell Power Input
Bell Output +
Bell Output -
Bell T rouble
Bell T rouble
UL Listed, Polarized
notification Devices.
10k W EOL Resistor
DMP Model 308
Notification Circuit Modul
e
DMP Model 866
37mA at 12VDC
1k W
Optional Module installation
Each 865 Notification Circuit Module
in alarm draws up to 85mA from its
terminal 3 alarm input.
S
S
S
S
S
S
S
S
S
S
Style W
S
S
S
S
S
263C or 263H
Cellular
Communicator
To Next Page
