2.2 Front Panel Connections

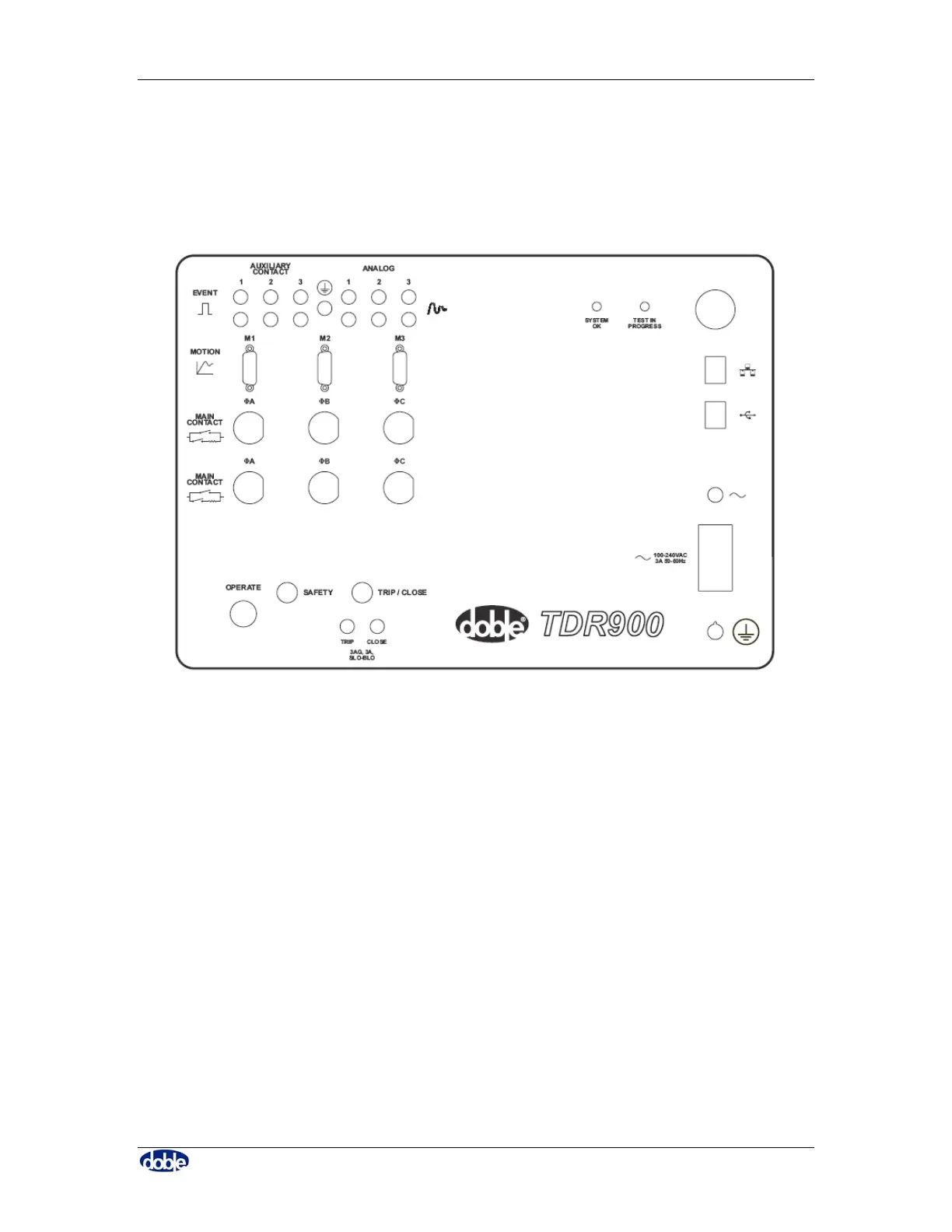

Figure 3 gives a schematic view of the front panel connections on the TDR900.
Figure 3. Schematic of Front Panel Connections
2.3 Basic Cables and Accessories
The TDR900 comes with basic cables to allow communication with the PC, safety
grounding and control.
