Doble TDR900 User Guide
72A-2612-01 Rev. A 09/06
40

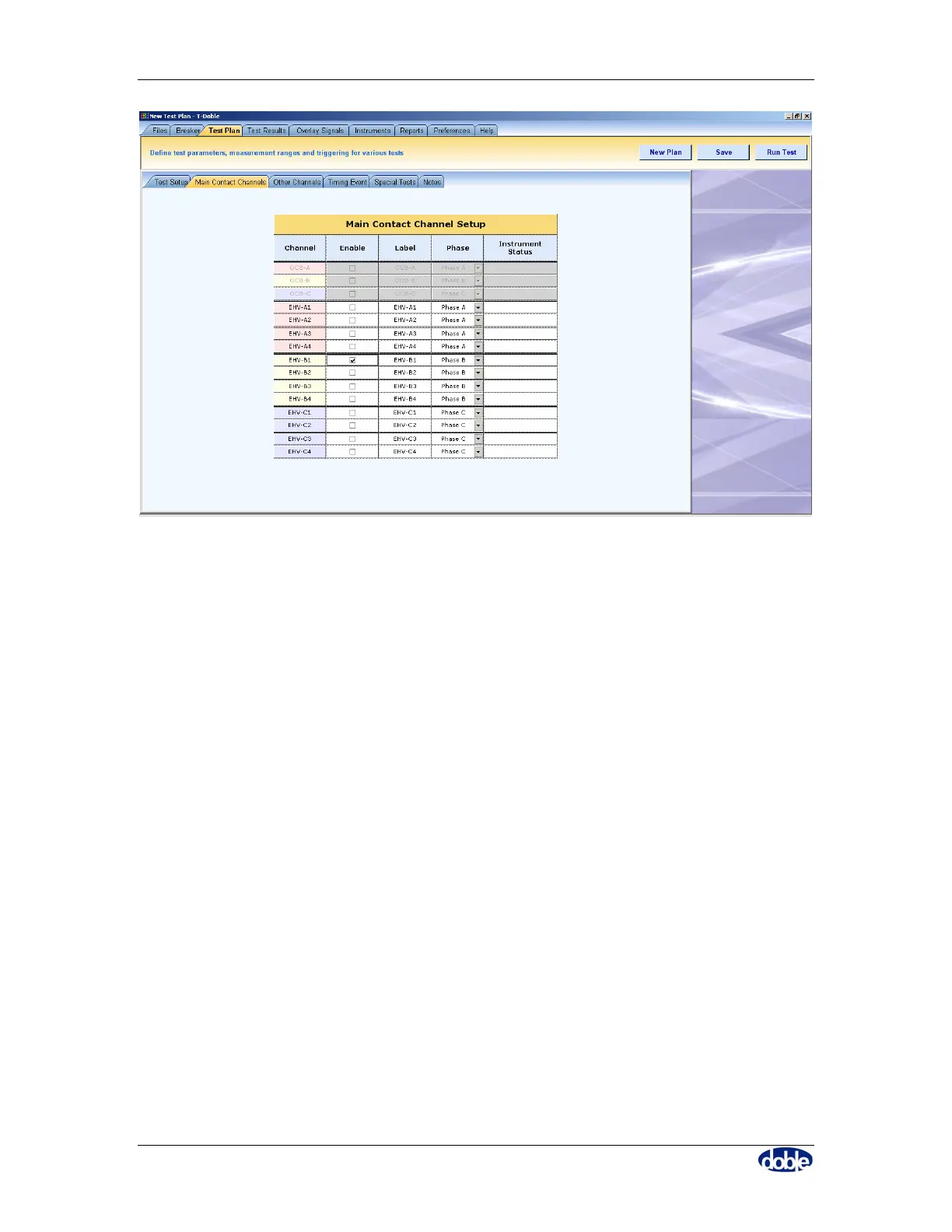

Figure 30. Test Plan –Main Contact Channels Sub-tab – EHV Selected
6.6.3.3. Other Channels
The TDR900 comes complete with:
• 3 Motion channels
• 3 Analog inputs
• 3 Event (digital) inputs
Configuring these channels is through the “Other Channels” tab, see Figure 31.
