doble TDR900 - Figure 40. Test Results - Resistor Contacts Sub-Tab

Doble TDR900 User Guide
72A-2612-01 Rev. A 09/06
48
6.6.4.3. Resistor Contacts
Resistor contact timings are reported on the “Resistor Contacts” tab, Figure 40. If limits
were available from the specification, then these are used to assign “OK” or “Investigate”
values.

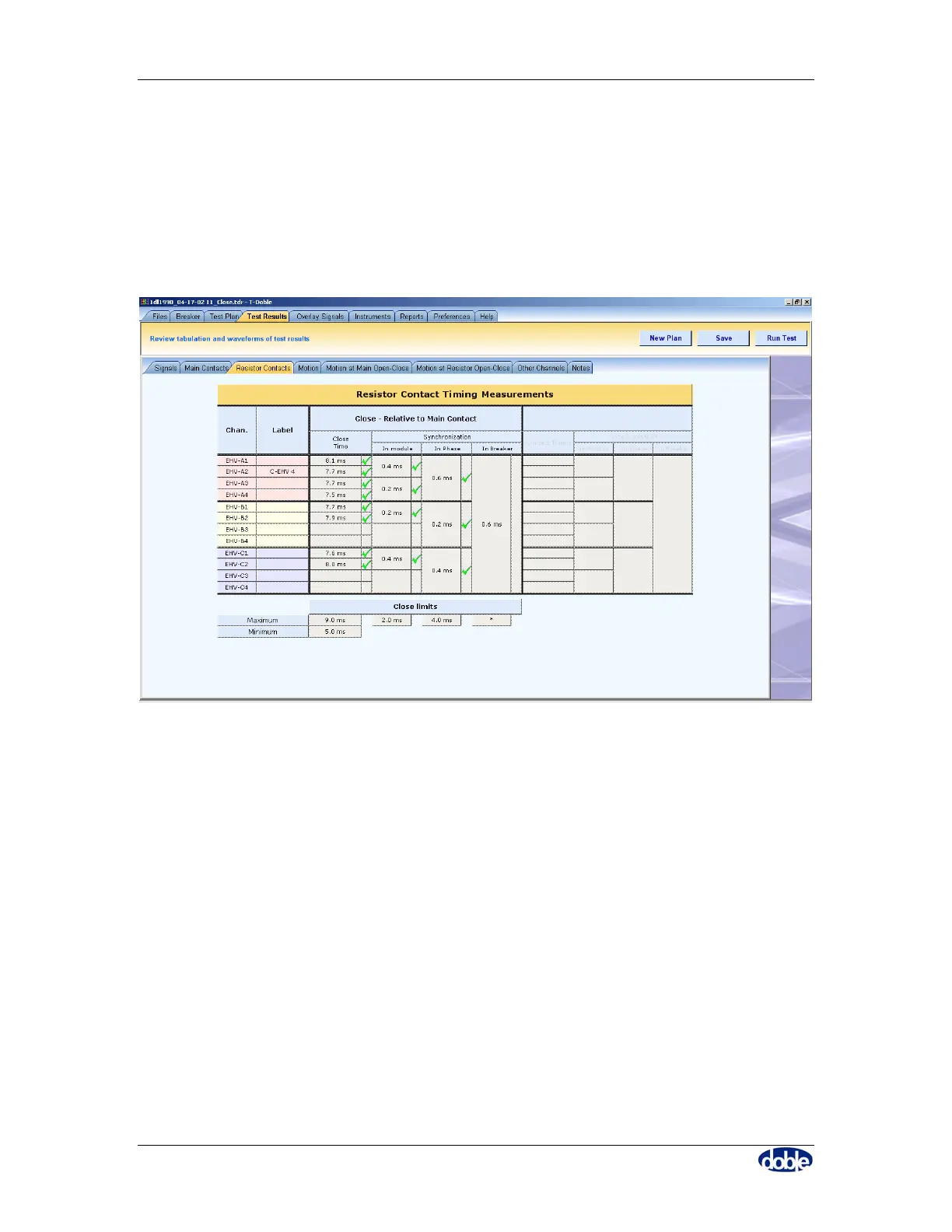

Figure 40. Test Results – Resistor Contacts Sub-tab
6.6.4.4. Motion
Results of motion measurements are given in the “Motion” tab shown in Figure 41.
Motion results include:
• Total Travel
• Over Travel
• Rebound Contact Wipe
• Damping
Where specification values exist for these, an analysis is made to provide “OK” or
“Investigate” for each value.
