Doble TDR900 User Guide
72A-2612-01 Rev. A 09/06
38
• Sequencing
• Recording Time
• Sample Time
• Pre-trigger Duration
• Bounce Discrimination
• Bounce Reporting

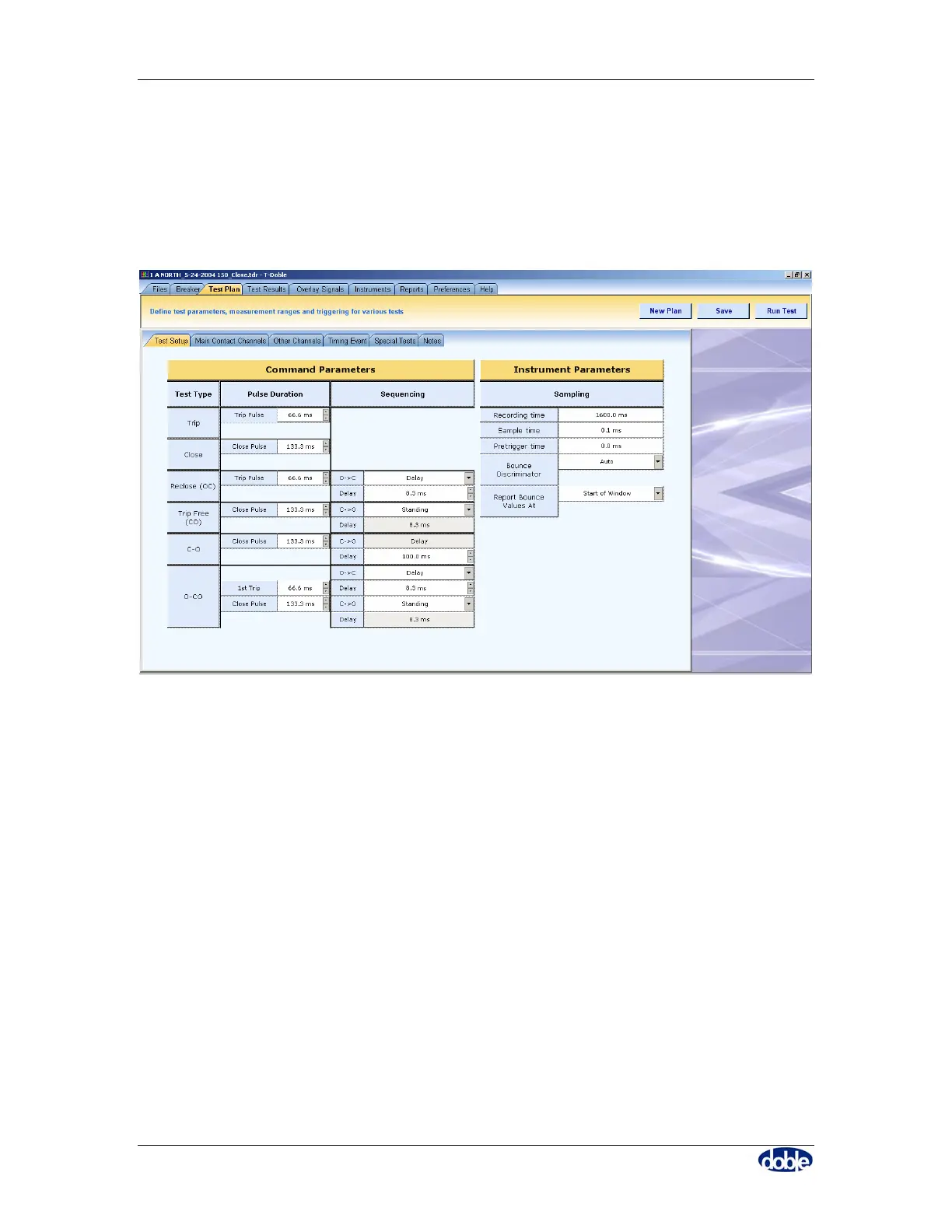

Figure 27. Test Plan – Test Setup Sub-tab
6.6.3.2. Main Contact Channels
The default “Main Contact” channels tab, Figure 28, allows for selection of either EHV
or OCB type of measurements.
