Doble TDR900 User Guide
72A-2612-01 Rev. A 09/06
45

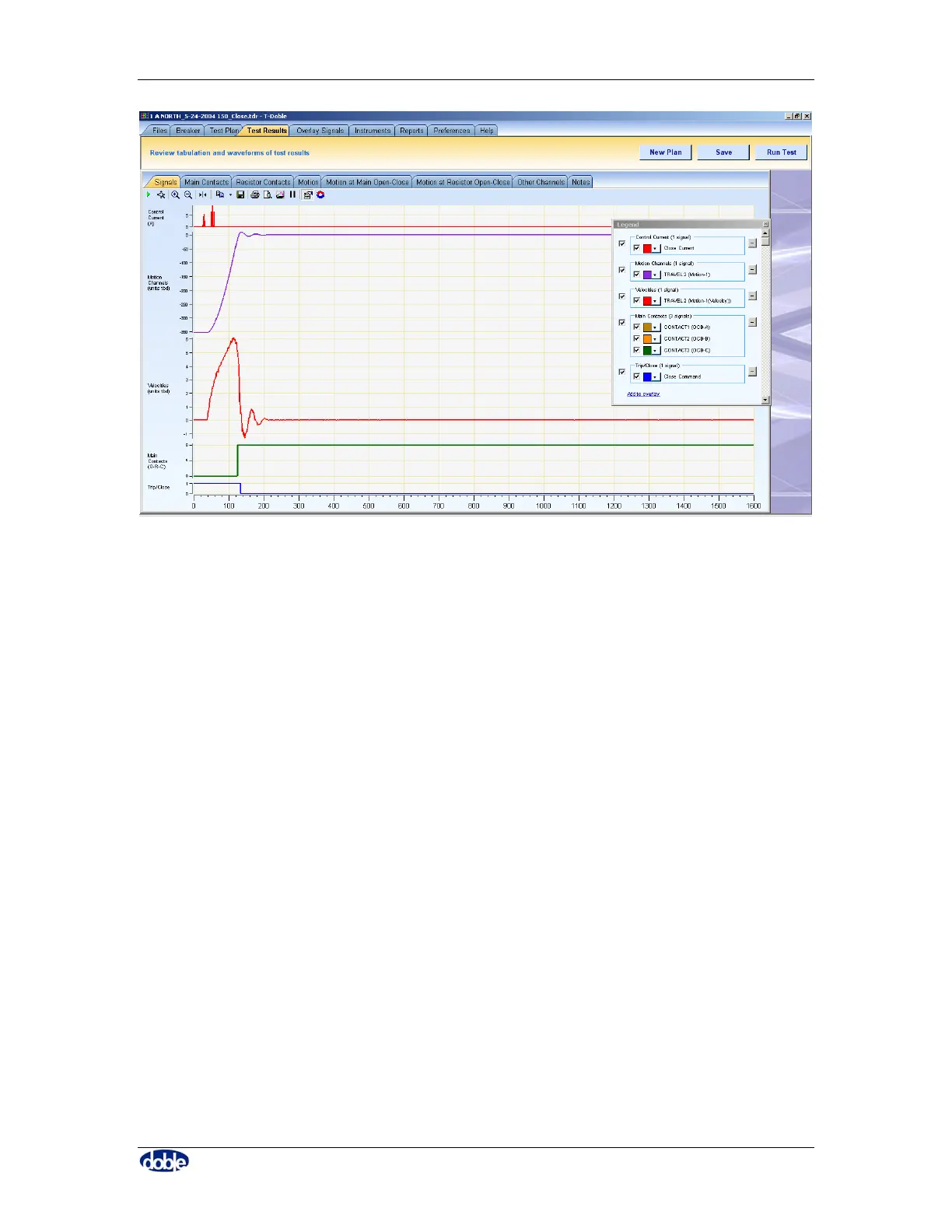

Figure 36. Test Results – Signals sub-tab
There are eight sub-tabs:
• Signals
• Main Contacts
• Resistor Contacts
• Motion at Main Open-Close
• Motion at Resistor Open-Close
• Other Channels
• Notes
6.6.4.1. Signals
The “Signals” sub-tab is a graphical representation of the test results as shown in Figure
36. It features a Legend, as discussed in section 6.5.1. The Legend is used to control
signal display order, overlay of individual signals etc.
6.6.4.2. Main Contacts
Results for the Main Contacts are shown on the “Main Contacts” tab in Figure 37.
