Doble TDR900 User Guide
72A-2612-01 Rev. A 09/06
36

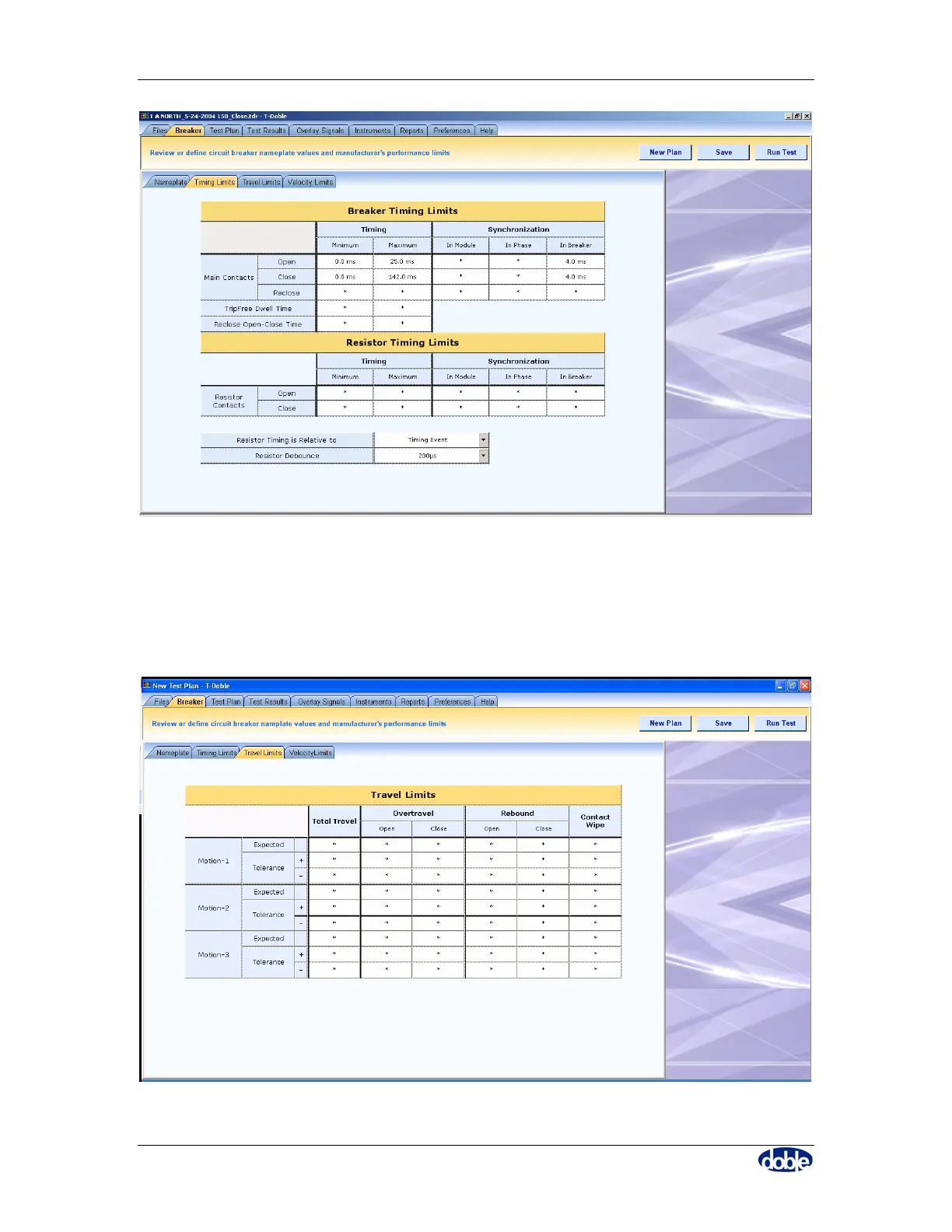

Figure 24. Breaker – Timing Limits Sub-tab
6.6.2.3. Travel Limits
The “Travel Limits” tab, as shown in Figure 25, allows entry of specific timing values for
a breaker.
Figure 25. Breaker – Travel Limits Sub-tab
