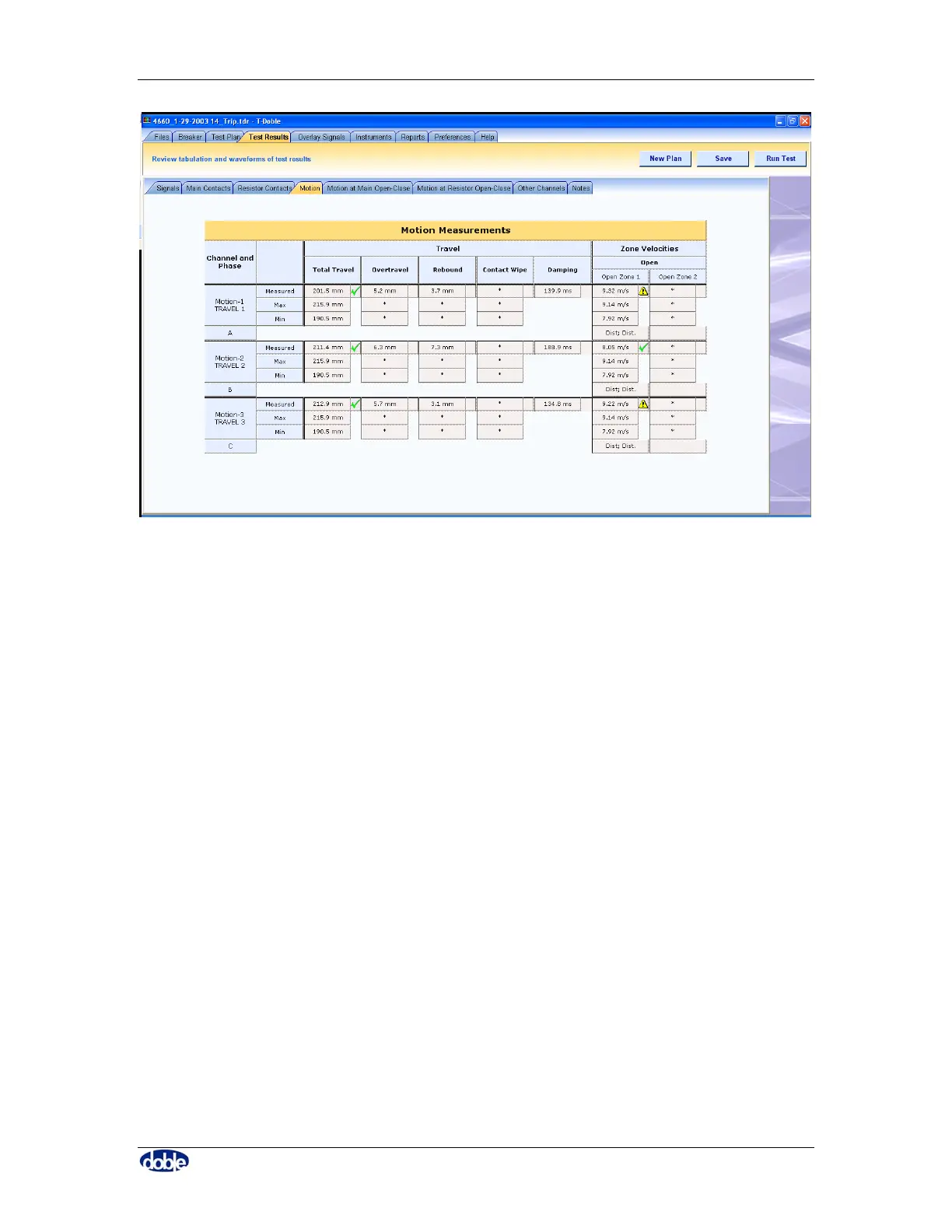

Figure 41. Test Results – Motion Sub-tab
6.6.4.5. Motion at Main Open-Close
“Motion at Main Open-Close” tab reports average velocity at operation, using travel
distance and timing measurements for calculations, as shown in Figure 42.
If a rotary transducer is used, then results are in degrees, rather than linear measure, as
shown in Figure 42.
