Doble TDR900 User Guide
72A-2612-01 Rev. A 09/06
56

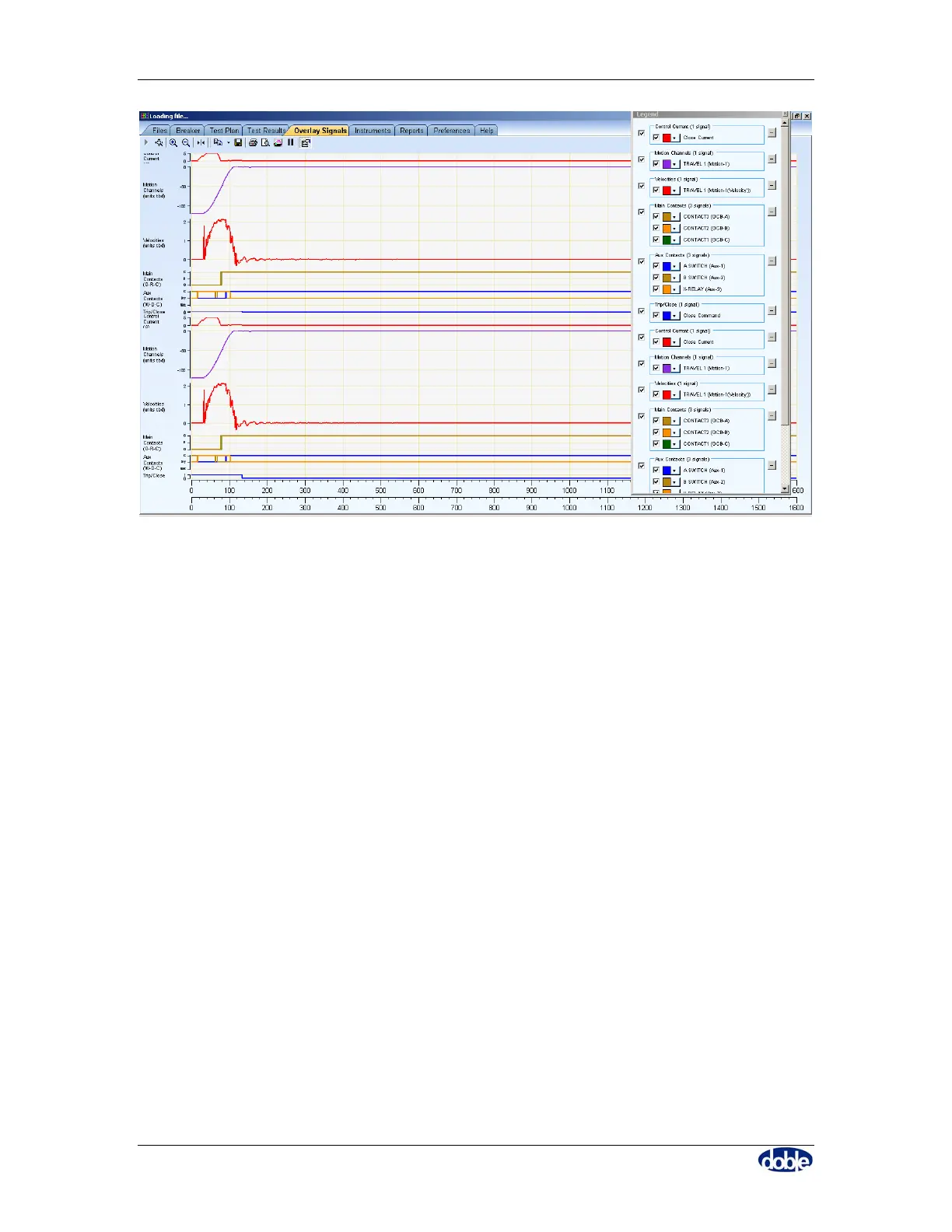

Figure 49. Overlay Tab with Two Results Added
As can be seen in Figure 49, the Legend can become quite extensive. Signals of
corresponding format may be overlaid on each other by dragging and dropping the legend
entry.
6.6.6 Instruments
The “Instruments” tab, as shown in Figure 50 allows for connection and communication
between the PC and the TDR900 Instrument.
