6.6.2.4. Velocity Limits
The “Velocity Limits” tab, as shown in Figure 26, allows entry of generic velocity limits
for a library test plan or breaker specific velocity limits for a breaker test plan.

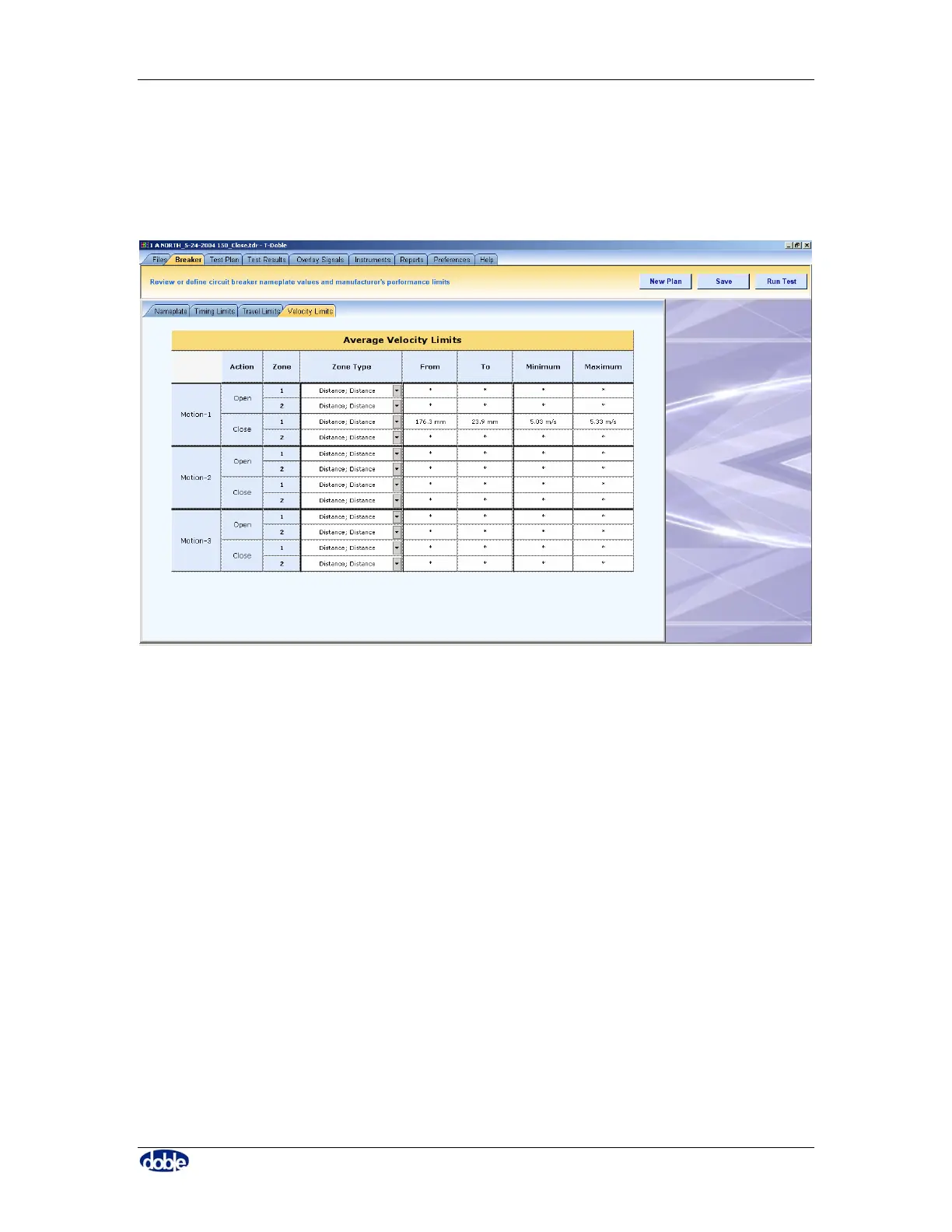

Figure 26. Breaker – Velocity Limits Sub-tab
6.6.3 Test Plan
The Test Plan tab is where specific test details are set up. There are six sub-tabs:
• Test Setup
• Main Contact Channels
• Other Channels
• Timing Event
• Special tests
• Notes
Details may be entered for all test set ups, but individual tests may be performed as
required.
6.6.3.1. Test Setup
The “Test Setup” tab, Figure 27, allows set-up of many of the test parameters for any
individual breaker test: whether open, close or other test. These include:
• Trip Pulse Duration
• Close Pulse Duration
