Doble TDR900 User Guide
72A-2612-01 Rev. A 09/06
52
6.6.4.7. Other Channels – Auxiliary Channels
If data is recorded on auxiliary channels, it is displayed on the “Other Channels” tab, as
in Figure 44.
In the case shown, the Aux channels were recorded, and the rows for each channel show
what event was recorded and the duration.

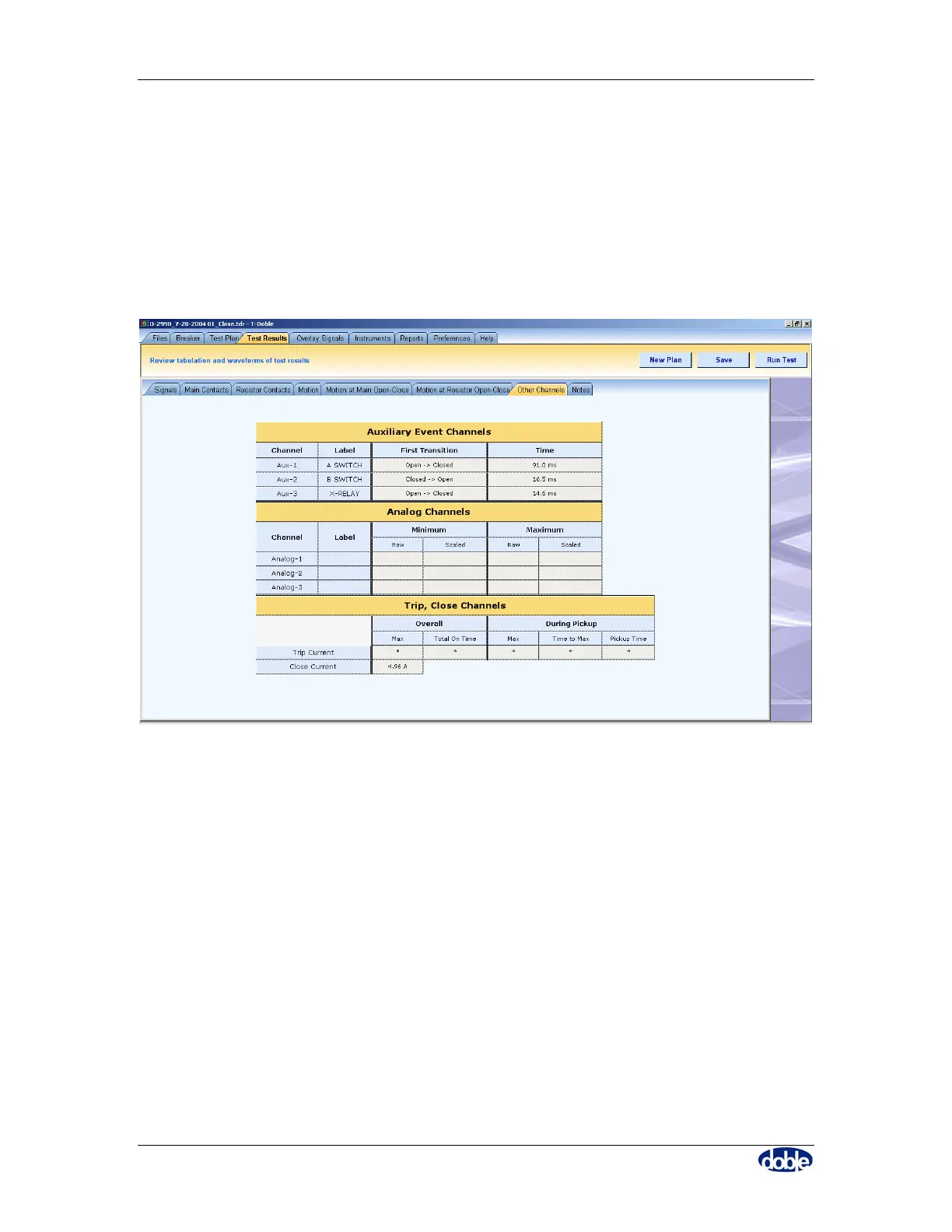

Figure 44. Test Results – Other Channels Sub-tab
