(2) Disconnect sensor pigtail harness from engine
wire harness. Sensor pigtail harness is clipped to
vehicle near its electrical connector.
(3) Pry sensor straight up from battery tray
mounting hole.
INSTALLATION
(1) Feed pigtail harness through hole in top of bat-
tery tray and press sensor into top of battery tray.
(2) Connect pigtail harness.
(3) Install battery. Refer to Group 8A, Battery for
procedures.
SPECIFICATIONS
GENERATOR RATINGS
TYPE PART NUMBER RATED SAE AMPS ENGINES
MINIMUM TEST
AMPS
DENSO 56041324AC 136 4.7L 100
DENSO 56027912AB 117 3.9L/5.2L/5.9L 90
DENSO 56027913AB 136 3.9L/5.2L/5.9L 100
TORQUE CHART
DESCRIPTION TORQUE
Generator Mounting Bolt—
3.9L/5.2L/5.9L Engines ..... 41N·m(30ft.lbs.)
Generator Pivot Bolt—
3.9L/5.2L/5.9L Engines ..... 41N·m(30ft.lbs.)
Generator Vertical Mounting Bolt—
4.7L V–8 Engine .......... 55N·m(40ft.lbs.)
Generator (long) Horizontal Mounting Bolt—
4.7L V–8 Engine .......... 55N·m(40ft.lbs.)
Generator (short) Horizontal Mounting Bolt—
4.7L V–8 Engine .......... 74N·m(55ft.lbs.)
Generator B+ Output Cable
Terminal Nut ............ 8.5N·m(75in.lbs.)

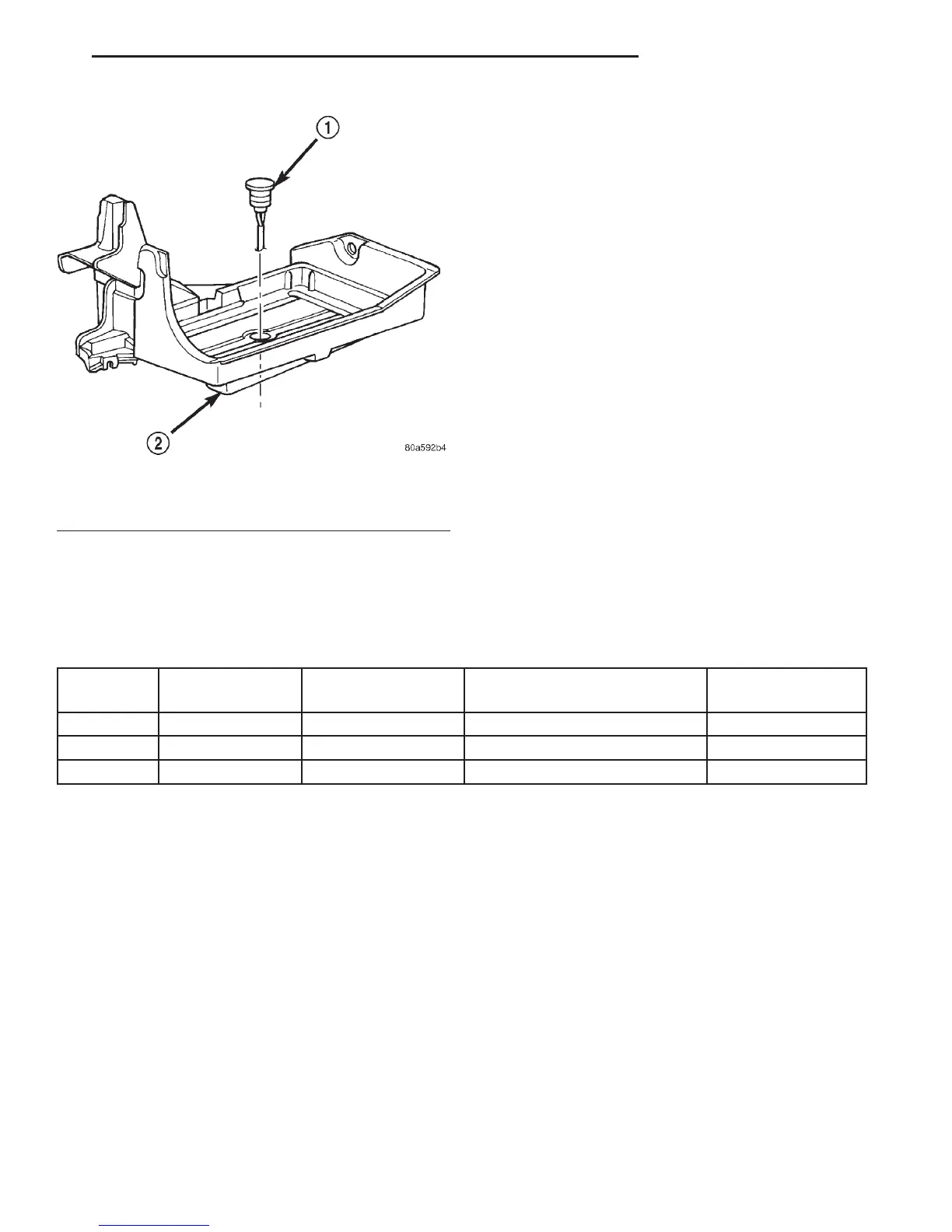

Fig. 5 Battery Temperature Sensor Location
1 – BATTERY TEMPERATURE SENSOR
2 – BATTERY TRAY
DN CHARGING SYSTEM 8C - 5
REMOVAL AND INSTALLATION (Continued)
