(6) Connect electrical connector at servo.
(7) Connect servo cable to throttle body. Refer to
Servo Cable Removal/Installation in this group.
(8) Connect negative battery cable to battery.
(9) Before starting engine, operate accelerator
pedal to check for any binding.
SPEED CONTROL SWITCHES
REMOVAL
WARNING: BEFORE BEGINNING ANY AIRBAG SYS-
TEM COMPONENT REMOVAL OR INSTALLATION,
REMOVE AND ISOLATE THE NEGATIVE (-) CABLE
FROM THE BATTERY. THIS IS THE ONLY SURE
WAY TO DISABLE THE AIRBAG SYSTEM. THEN
WAIT TWO MINUTES FOR SYSTEM CAPACITOR TO
DISCHARGE BEFORE FURTHER SYSTEM SERVICE.
FAILURE TO DO THIS COULD RESULT IN ACCIDEN-
TAL AIRBAG DEPLOYMENT AND POSSIBLE
INJURY.
(1) Disconnect and isolate negative battery cable.
(2) Remove airbag module. Refer to Group 8M,
Passive Restraint Systems for procedures.
(3) Remove switch-to-steering wheel mounting
screws (Fig. 3).
(4) Remove switch.
(5) Remove electrical connector at switch.
INSTALLATION
(1) Install electrical connector to switch.
(2) Install switch and mounting screws.
(3) Tighten screws to 1.5 N·m (14 in. lbs.) torque.
(4) Install airbag module. Refer to Group 8M, Pas-
sive Restraint Systems for procedures.
(5) Connect negative battery cable.

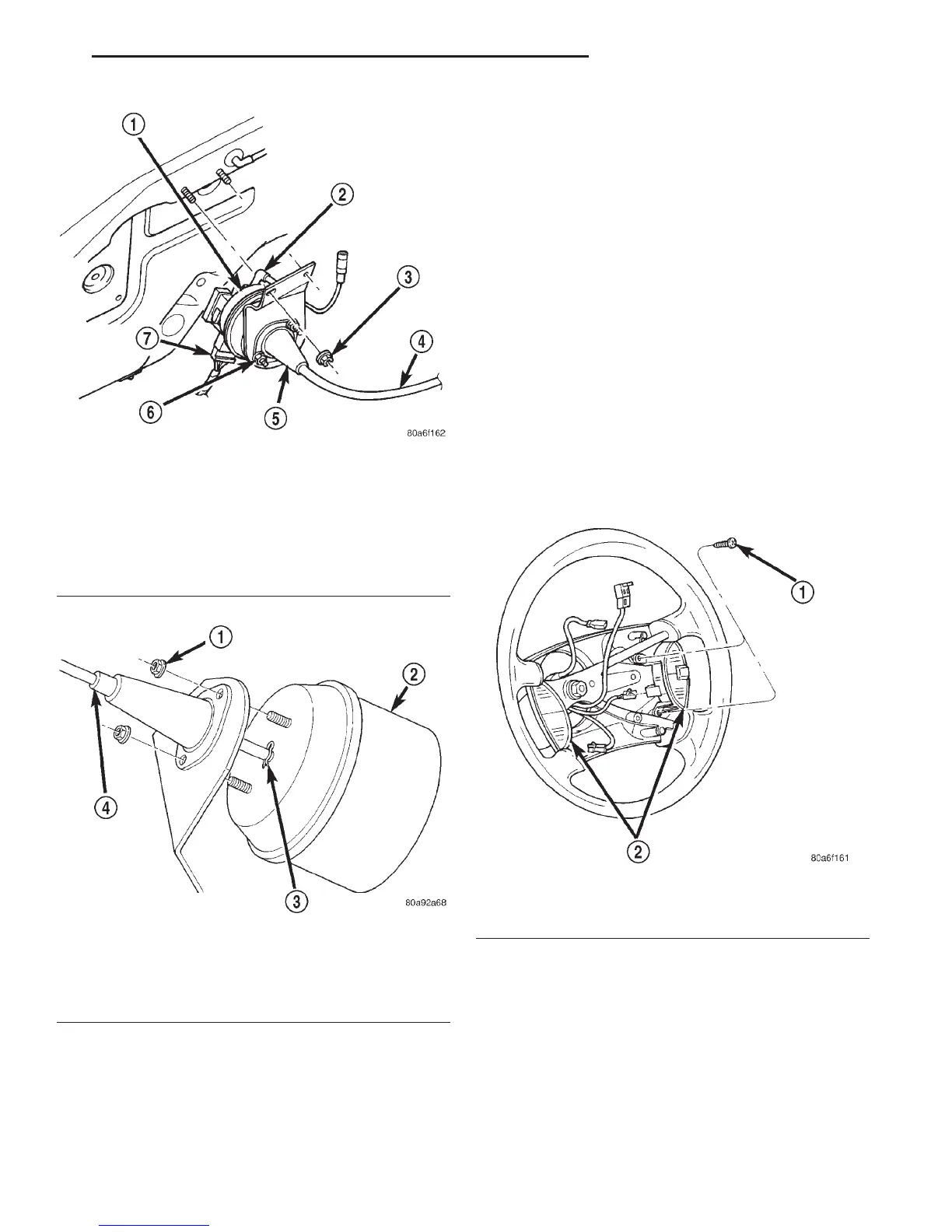

Fig. 1 Speed Control Servo Location
1 – SPEED CONTROL SERVO
2 – VACUUM HOSE
3 – SERVO BRACKET NUTS (2)
4 – SERVO CABLE
5 – CABLE SLEEVE
6 – SERVO MOUNTING NUTS (2)
7 – ELECTRICAL CONNECTOR
Fig. 2 Servo Cable Clip Remove/Install—Typical
1 – SERVO MOUNTING NUTS (2)
2 – SERVO
3 – CABLE RETAINING CLIP
4 – SERVO CABLE AND SLEEVE
Fig. 3 Speed Control Switches
1 – MOUNTING SCREWS (2)
2 – SPEED CONTROL SWITCHES (2)
