REAR
WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, REFER TO GROUP 8M - PASSIVE
RESTRAINT SYSTEMS BEFORE ATTEMPTING ANY
STEERING WHEEL, STEERING COLUMN, OR
INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the lower bezel from the instrument
panel. Refer to Instrument Panel Lower Bezel in the
Removal and Installation section of Group 8E -
Instrument Panel Systems for the procedures.
(3) Remove the two screws that secure the rear
window switch pod to the instrument panel lower
bezel (Fig. 19).
(4) Remove the rear window switch pod from the
instrument panel lower bezel.
(5) Reverse the removal procedures to install.
Tighten the mounting screws to 2.2 N·m (20 in. lbs.).

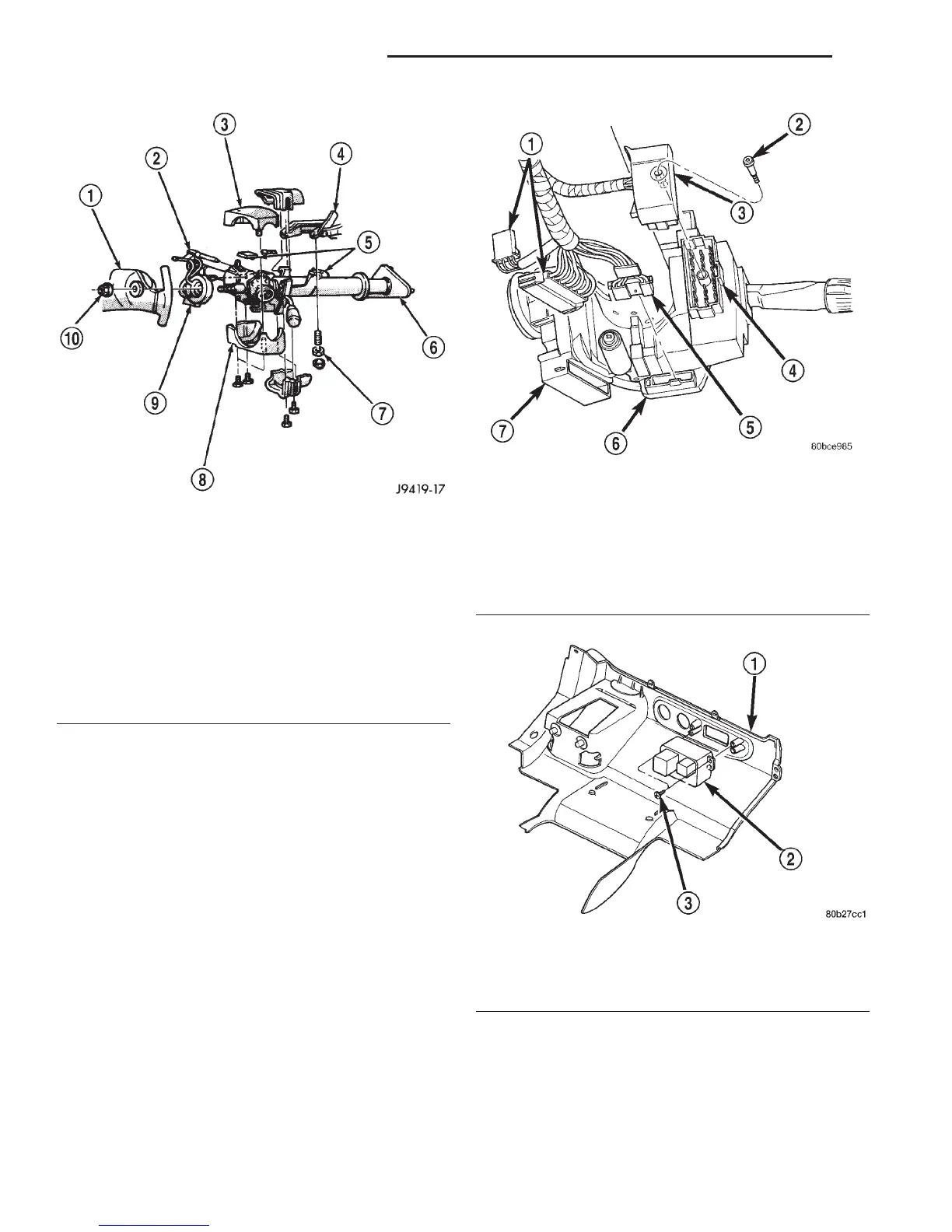

Fig. 17 Steering Column Shrouds Remove/Install -
Typical
1 – STEERING WHEEL
2 – TILT LEVER
3 – UPPER SHROUD
4 – PANEL BRACKET
5 – SPACER
6 – TOE PLATE
7 – NUT
8 – LOWER SHROUD
9 – CLOCK SPRING
10 – NUT
Fig. 18 Multi-Function Switch Connector
1 – WIRE HARNESS CONNECTORS
2 – SCREW
3 – WIRE HARNESS CONNECTOR
4 – MULTI-FUNCTION SWITCH
5 – WIRE HARNESS CONNECTOR
6 – CLOCKSPRING
7 – IGNITION SWITCH
Fig. 19 Rear Window Switch Pod Remove/Install
1 – INSTRUMENT PANEL LOWER BEZEL
2 – REAR WINDOW SWITCH POD
3 – SCREWS (2)
8K - 16 WIPER AND WASHER SYSTEMS DN
REMOVAL AND INSTALLATION (Continued)
