FOG LAMP ALIGNMENT
Prepare an alignment screen. Refer to Alignment
Screen Preparation paragraph in this section. A prop-
erly aligned fog lamp will project a pattern on the
alignment screen 100 mm (4 in.) below the fog lamp
centerline and straight ahead (Fig. 3). Rotate the
adjustment screw to adjust beam height (Fig. 4).

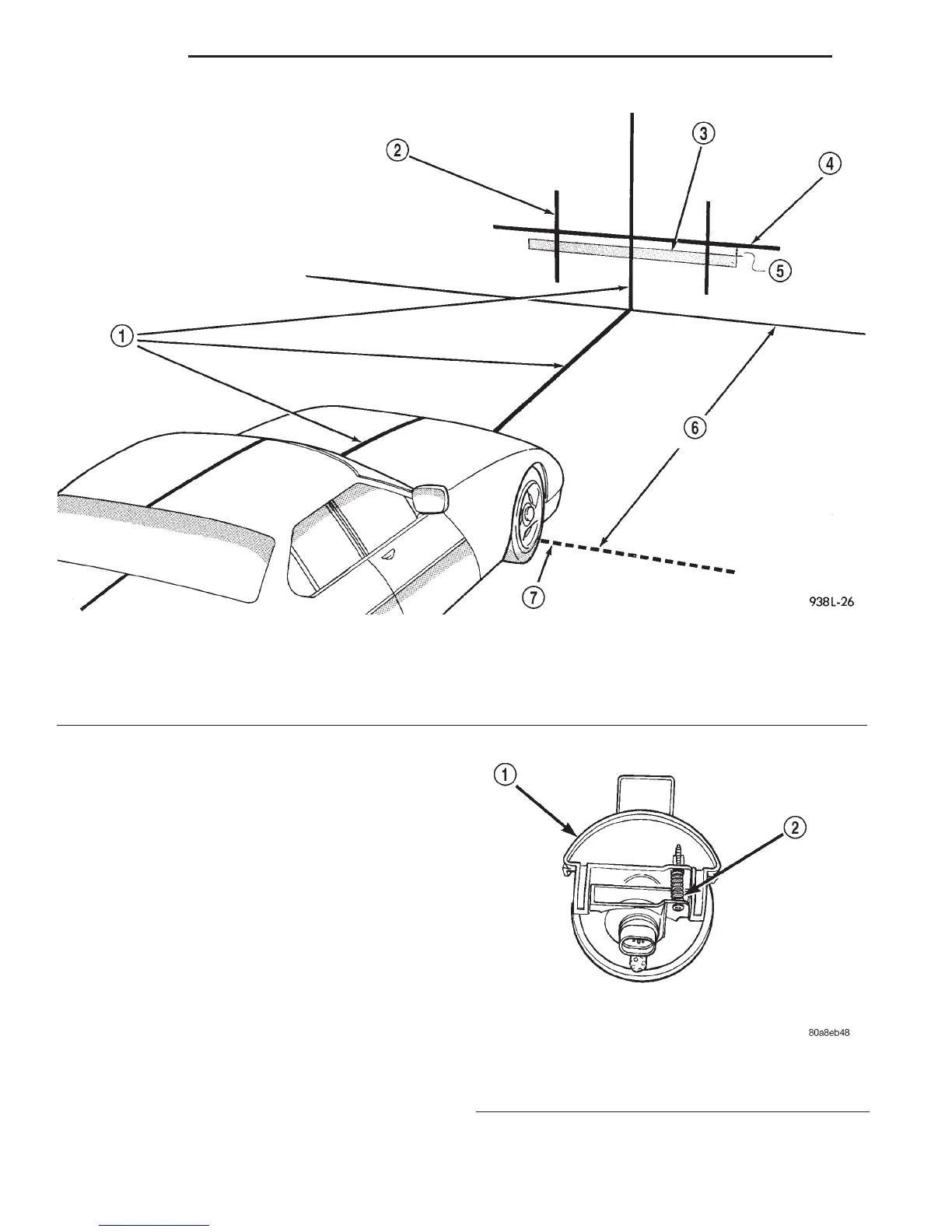

Fig. 3 Fog Lamp Alignment —Typical
1 – VEHICLE CENTERLINE
2 – CENTER OF VEHICLE TO CENTER OF FOG LAMP LENS
3 – HIGH-INTENSITY AREA
4 – FLOOR TO CENTER OF FOG LAMP LENS
5 – 100 mm (4 in.)
6 – 7.62 METERS (25 FEET)
7 – FRONT OF FOG LAMP
Fig. 4 Fog Lamp Adjustment
1 – FOG LAMP
2 – ADJUSTMENT SCREW
8L - 8 LAMPS DN
SERVICE PROCEDURES (Continued)
