LAMP BULB SERVICE
TABLE OF CONTENTS
page page
REMOVAL AND INSTALLATION
HEADLAMP BULB ........................10
FOG LAMP BULB.........................10
PARK AND TURN SIGNAL LAMP BULBS .......11
FRONT SIDE MARKER LAMP BULB...........11
CENTER HIGH MOUNTED STOP LAMP
(CHMSL) BULB .........................11
LIFTGATE/CARGO LAMP BULB ..............11
TAIL, BRAKE, TURN SIGNAL AND BACK-UP
LAMP BULB ...........................11
LICENSE PLATE LAMP BULB ...............12
UNDERHOOD LAMP BULB .................12
DOME LAMP BULB .......................13
2ND SEAT DOME/READING LAMP BULB.......13
OVERHEAD CONSOLE READING LAMP BULB
..14
REMOVAL AND INSTALLATION
HEADLAMP BULB
REMOVAL
(1) Open hood.
(2) Remove headlamp assembly. See headlamp
removal in the lamp service section.
(3) Remove the retaining ring holding bulb to
headlamp.
(4) Pull bulb socket from headlamp (Fig. 1).
(5) Grasp bulb and pull from socket.
INSTALLATION
CAUTION: Do not touch the bulb glass with fingers
or other oily surfaces. Reduced bulb life will result.
(1) Position bulb into socket and push into place.
(2) Position bulb socket in headlamp.
(3) Install retaining ring holding bulb to head-
lamp.
(4) Install headlamp assembly.
FOG LAMP BULB
REMOVAL
(1) Disengage fog lamp harness connector.
(2) Rotate bulb socket a 1/4 turn counterclockwise
and pull from lamp to separate (Fig. 2).
(3) Grasp bulb and pull from lamp.
INSTALLATION
CAUTION: Do not touch the bulb glass with fingers
or other oily surfaces. Reduced bulb life will result.
(1) Position bulb in lamp, push to seat and rotate
a 1/4 turn clockwise.
(2) Connect fog lamp harness connector.

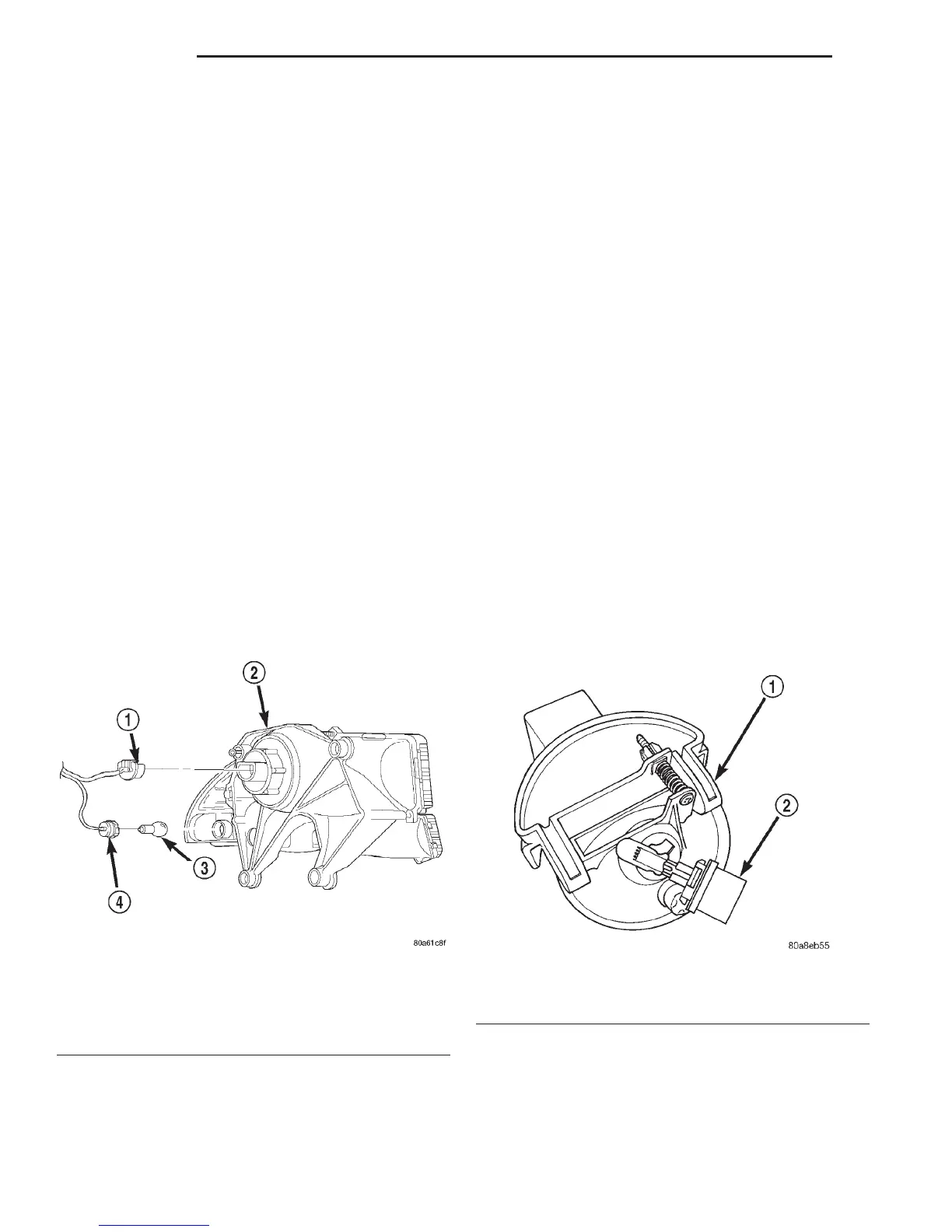

Fig. 1 Headlamp Bulb
1 – HEADLAMP BULB SOCKET
2 – HEADLAMP
3 – BULB
4 – SIDE MARKER LAMP BULB SOCKET
Fig. 2 Fog Lamp Bulb
1 – FOG LAMP
2 – FOG LAMP BULB
8L - 10 LAMPS DN
