REMOVAL AND INSTALLATION
DAYTIME RUNNING LAMP MODULE (DRLM) . . . 21
REMOVAL AND INSTALLATION
DAYTIME RUNNING LAMP MODULE (DRLM)
REMOVAL
The Daytime Running Lamp Module is located on
the left inner fender.
(1) Remove the bolt attaching the module to the
inner fender (Fig. 1).
(2) Disconnect the electrical connector.
INSTALLATION
(1) Connect the electrical connector.
(2) Insert the tab on the DRLM into the slot on
the left inner fender.
(3) Install the bolt attaching the module to the left
inner fender.

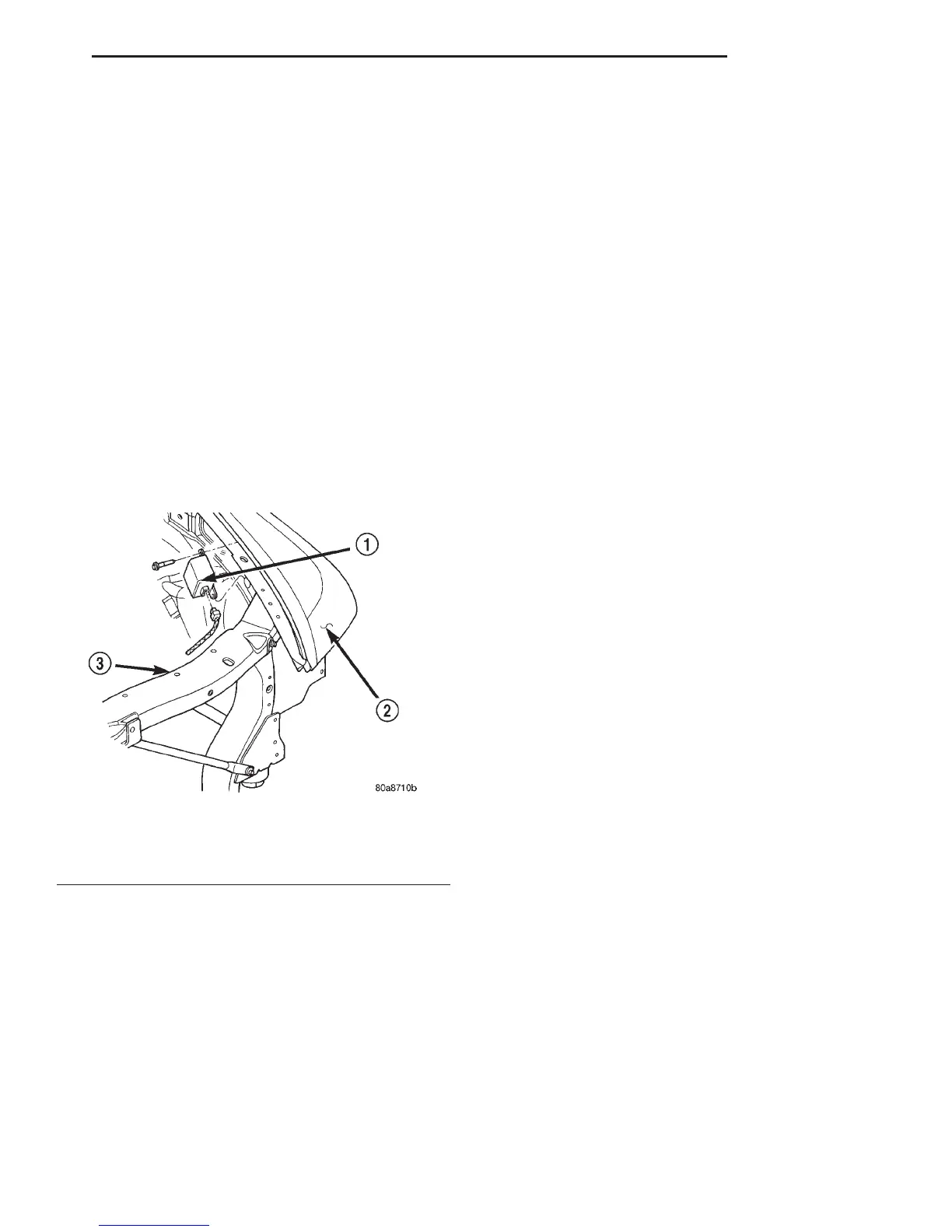

Fig. 1 Daytime Running Lamp Module
1 – DAYTIME RUNNING LAMP MODULE
2 – LEFT FENDER
3 – RADIATOR CLOSURE PANEL
