HORN RELAY
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the fuse access panel from the left end
of the instrument panel (Fig. 5).
(3) Refer to the label on the inside of the fuse
access panel for horn relay identification and loca-
tion.
(4) Unplug the horn relay from the Junction Block
(JB).
(5) Install the horn relay by aligning the relay ter-
minals with the cavities in the JB and pushing the
relay firmly into place.
(6) Install the fuse access panel.
(7) Connect the battery negative cable.
(8) Test the relay operation.

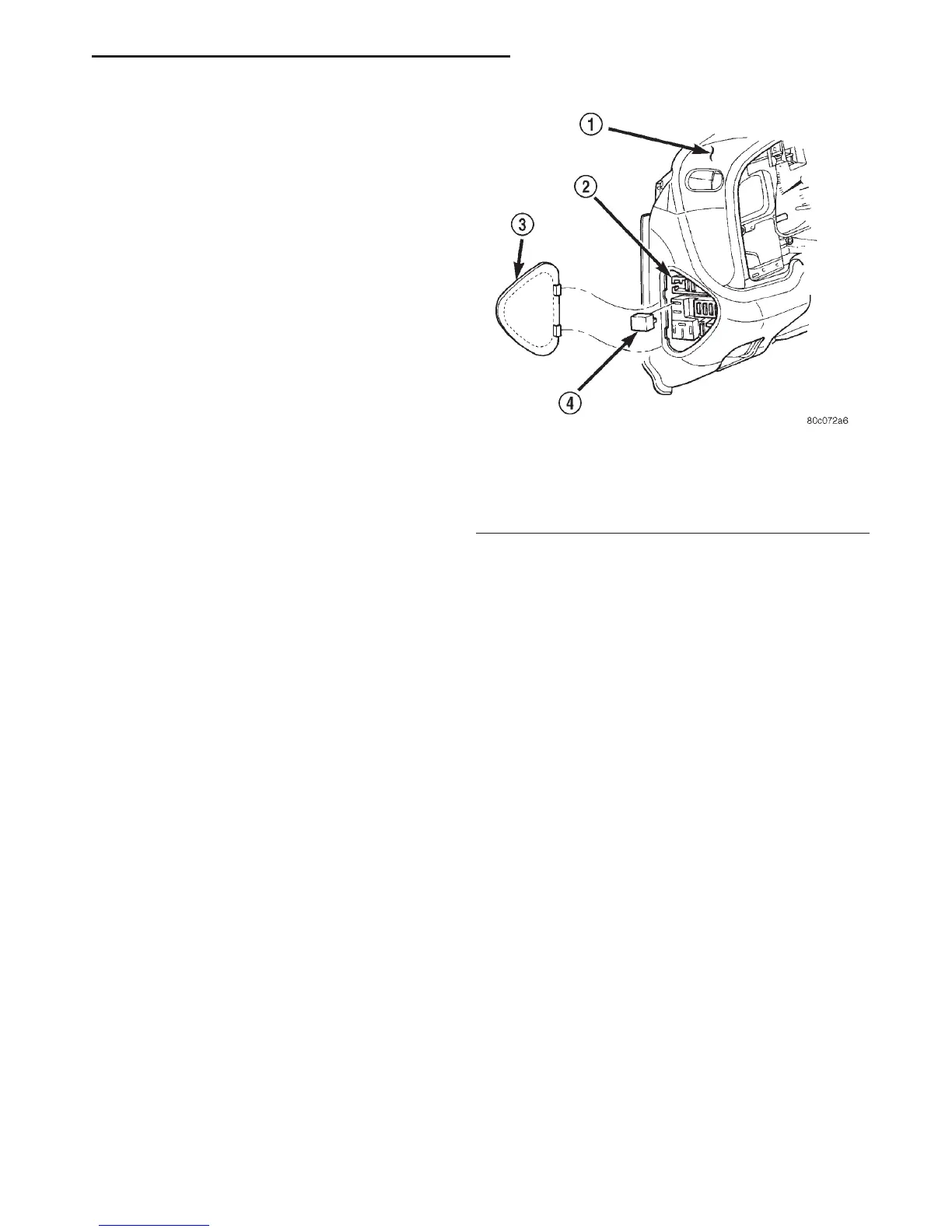

Fig. 5 Horn Relay Remove/Install
1 – INSTRUMENT PANEL
2 – JUNCTION BLOCK
3 – FUSE ACCESS PANEL
4 – HORN RELAY
