OVERHEAD CONSOLE SYSTEMS
TABLE OF CONTENTS
page page
DESCRIPTION AND OPERATION
OVERHEAD CONSOLE SYSTEM..............1
OVERHEAD CONSOLE .....................1
COMPASS MINI-TRIP COMPUTER............2
OVERHEAD CONSOLE READING AND
COURTESY LAMP .......................3
GARAGE DOOR OPENER STORAGE BIN .......3
PAPERCLIP..............................4
SUNGLASSES STORAGE BIN................4
AMBIENT TEMPERATURE SENSOR ...........4
DIAGNOSIS AND TESTING
COMPASS MINI-TRIP COMPUTER............5
AMBIENT TEMPERATURE SENSOR ...........6
SERVICE PROCEDURES
COMPASS VARIATION ADJUSTMENT .........6
COMPASS CALIBRATION ...................6
COMPASS DEMAGNETIZING ................7
REMOVAL AND INSTALLATION
OVERHEAD CONSOLE READING AND
COURTESY LAMP LENS ..................8
OVERHEAD CONSOLE .....................9
PAPERCLIP.............................10
COMPASS MINI-TRIP COMPUTER...........11
OVERHEAD CONSOLE READING AND
COURTESY LAMP HOUSING..............11
SUNGLASSES STORAGE BIN...............12
GARAGE DOOR OPENER STORAGE BIN
DOOR................................13
AMBIENT TEMPERATURE SENSOR ..........13
SPECIAL TOOLS
OVERHEAD CONSOLE SYSTEMS............14
DESCRIPTION AND OPERATION
OVERHEAD CONSOLE SYSTEM
DESCRIPTION
An overhead console unit is an available factory-in-
stalled option on this model. The overhead console
unit features a garage door opener storage bin, a
sunglasses storage bin, two reading and courtesy
lamps and either a standard paperclip or an optional
compass mini-trip computer. See the owner’s manual
in the vehicle glove box for more information on the
features, use and operation of all of the overhead
console components and systems. Refer to Overhead
Console in the Contents of Group 8W - Wiring Dia-
grams for complete circuit diagrams.
OVERHEAD CONSOLE
DESCRIPTION
The overhead console (Fig. 1) for this model
includes two front-mounted reading and courtesy
lamps, a garage door opener storage bin, a sun-
glasses storage bin and either a standard paperclip
or an optional compass mini-trip computer.
The overhead console is secured with two snap
clips at the rear and a single screw at the front to
the overhead console mounting bracket. The front of
the overhead console mounting bracket is secured to
the roof header near the windshield with two screws,
and the rear of the bracket is secured with double-

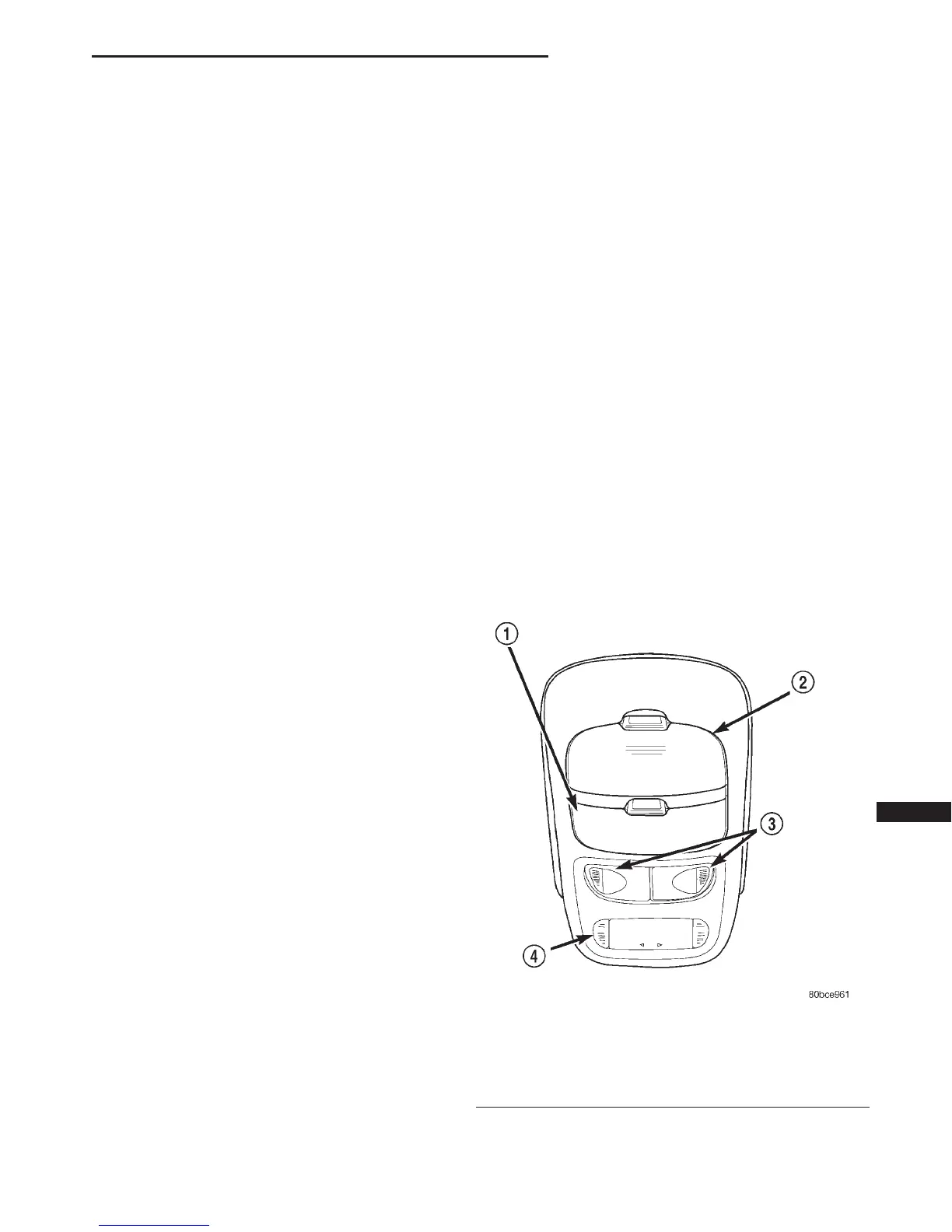

Fig. 1 Overhead Console
1 – SUNGLASSES STORAGE BIN
2 – GARAGE DOOR OPENER STORAGE BIN
3 – READING AND COURTESY LAMPS
4 – PAPERCLIP OR COMPASS MINI-TRIP COMPUTER
DN OVERHEAD CONSOLE SYSTEMS 8V - 1
