(12) Remove cylinder head cover retaining bolts.
(13) Remove cylinder head cover.
NOTE: The gasket may be used again, provided no
cuts, tears, or deformation has occurred.
INSTALLATION
CAUTION: Do not use harsh cleaners to clean the
cylinder head covers. Severe damage to covers
may occur.

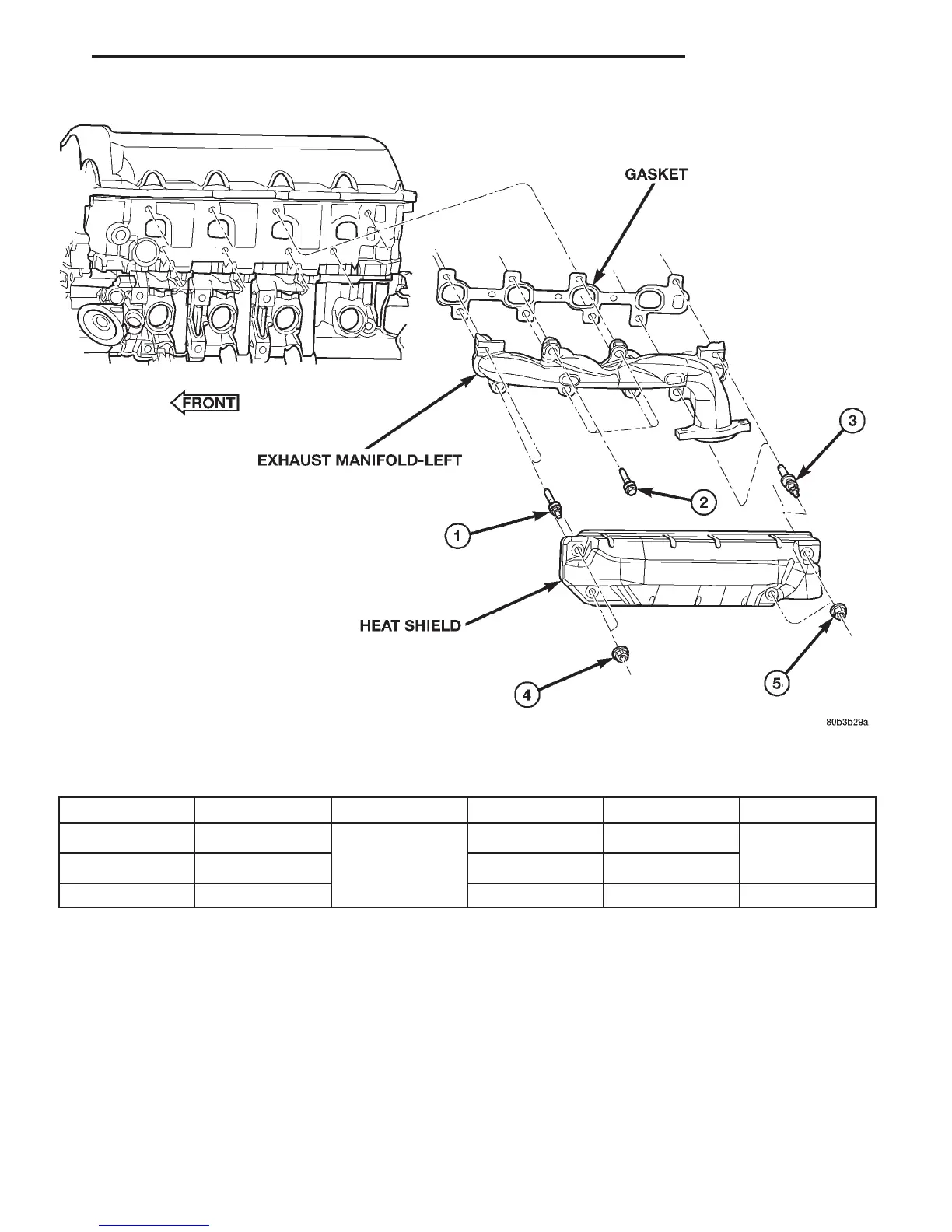

Fig. 53 Exhaust Manifold—Left
ITEM DESCRIPTION TORQUE ITEM DESCRIPTION TORQUE
1 Stud (Qty 2)
25 N·m (18 ft.
lbs.)
4 Nut (Qty 2) 8 N·m (72 in.
lbs.), then loosen
45 degrees
2 Bolt (Qty 4) 5 Nut (Qty 2)
3 Stud (Qty 2)
DN 4.7L ENGINE 9 - 39
REMOVAL AND INSTALLATION (Continued)
