(10) Remove both left and right side engine mount
through bolts (Fig. 107).
(11) Raise engine to provide clearance to remove
oil pan.

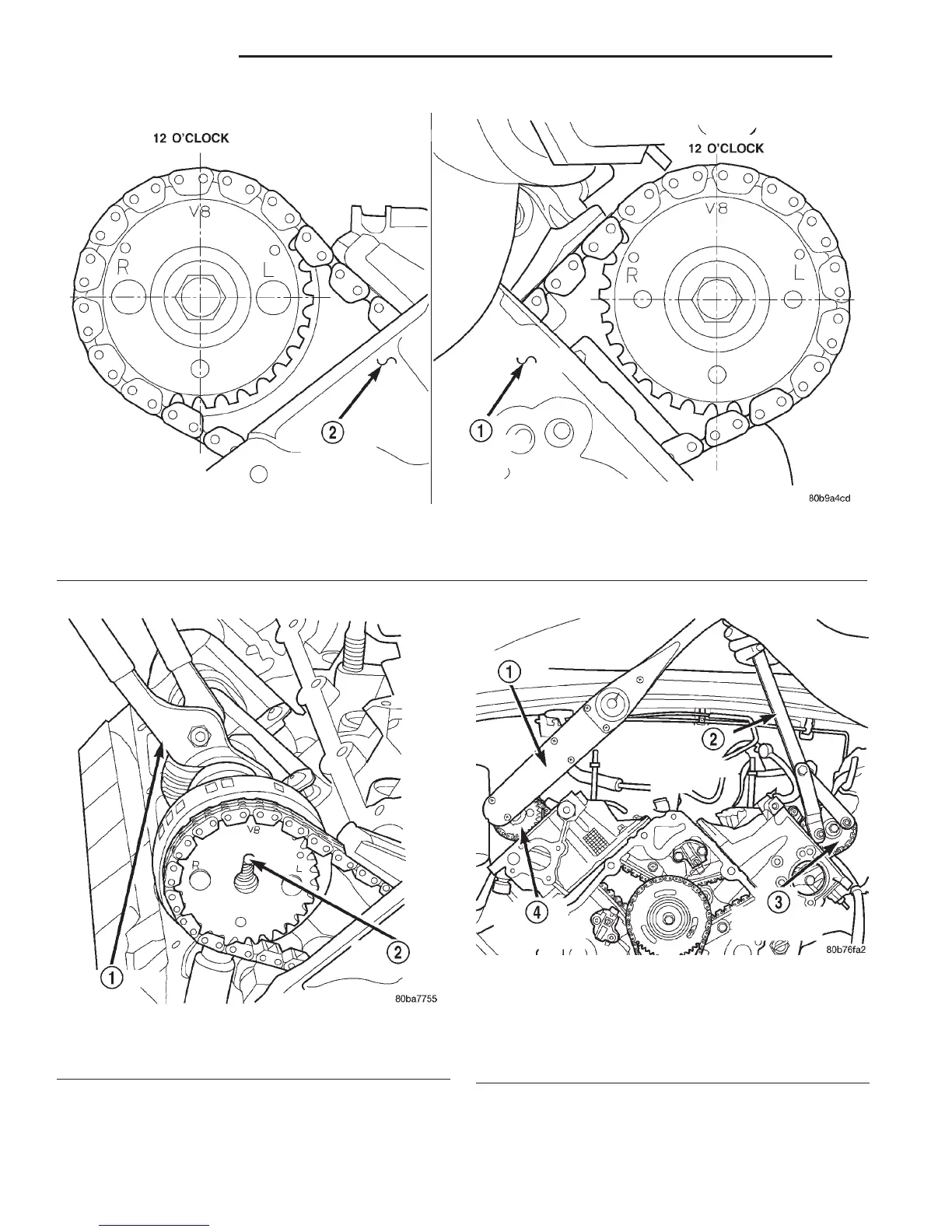

Fig. 101 Timing Chain to Sprocket Alignment
1 – LEFT CYLINDER HEAD
2 – RIGHT CYLINDER HEAD
Fig. 102 Camshaft Sprocket Installation
1 – ADJUSTABLE PLIERS
2 – CAMSHAFT DOWEL
Fig. 103 Tightening Right Side Cam Sprocket
Retaining Bolt
1 – TORQUE WRENCH
2 – SPECIAL TOOL 6958 WITH ADAPTER PINS 8346
3 – LEFT CAMSHAFT SPROCKET
4 – RIGHT CAMSHAFT SPROCKET
9 - 62 4.7L ENGINE DN
REMOVAL AND INSTALLATION (Continued)
