Dodge 2000 DURANGO - Page 579

ENGINE OIL PRESSURE SENDING UNIT
REMOVAL
(1) Disconnect the negative cable from the battery.
(2) Raise vehicle on hoist.
(3) Remove front splash shield.
(4) Disconnect oil pressure sender wire (Fig. 125).
(5) Remove the pressure sender (Fig. 125).
INSTALLATION
(1) Install oil pressure sender.
(2) Connect oil pressure sender wire.
(3) Install front splash shield.
(4) Lower vehicle.
(5) Connect the negative battery cable.
CRANKSHAFT OIL SEAL—FRONT
REMOVAL
(1) Disconnect negative cable from battery.

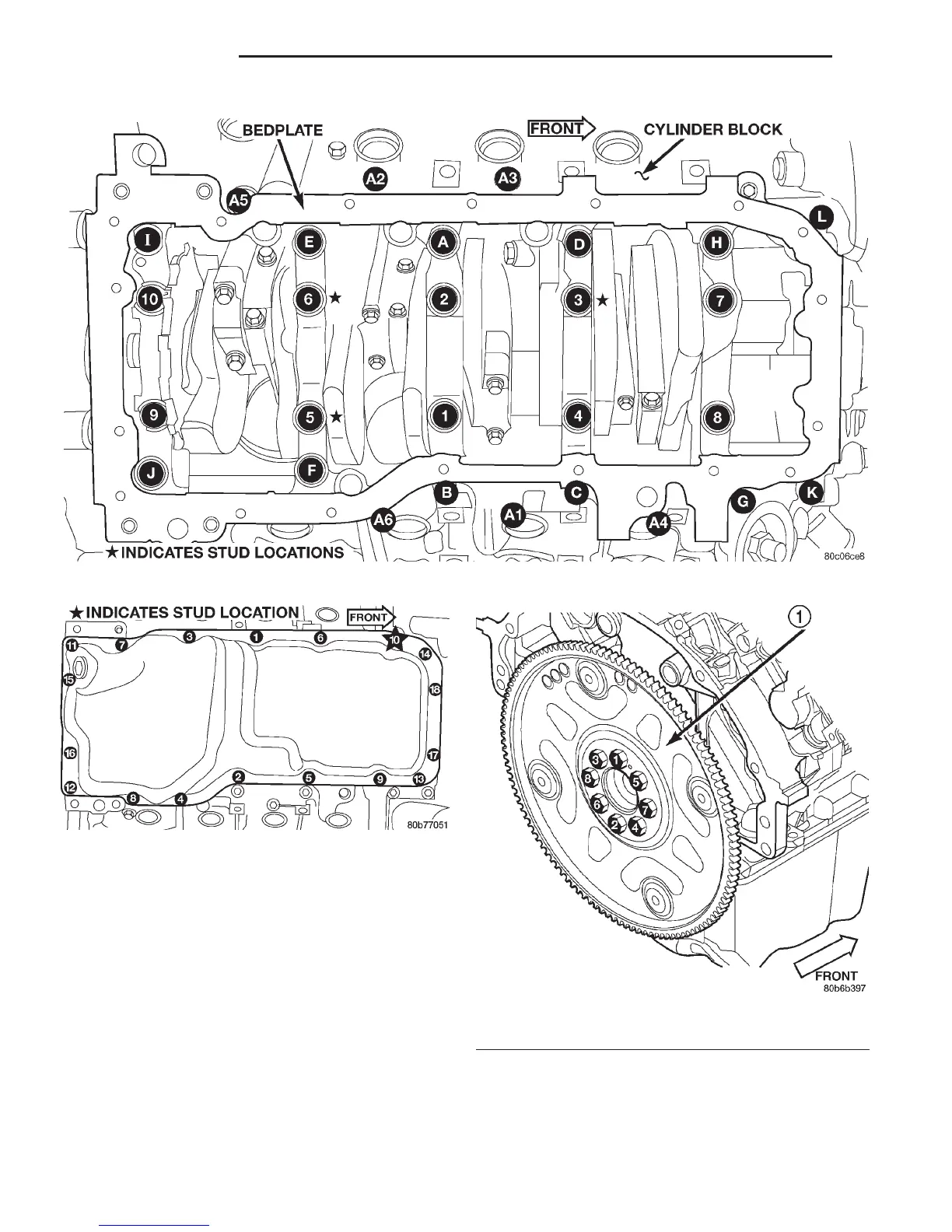

Fig. 121 Bedplate Tightening Sequence
Fig. 122 Oil Pan Tightening Sequence
Fig. 123 Flexplate Tightening Sequence
1 – FLEXPLATE
9 - 70 4.7L ENGINE DN
REMOVAL AND INSTALLATION (Continued)
