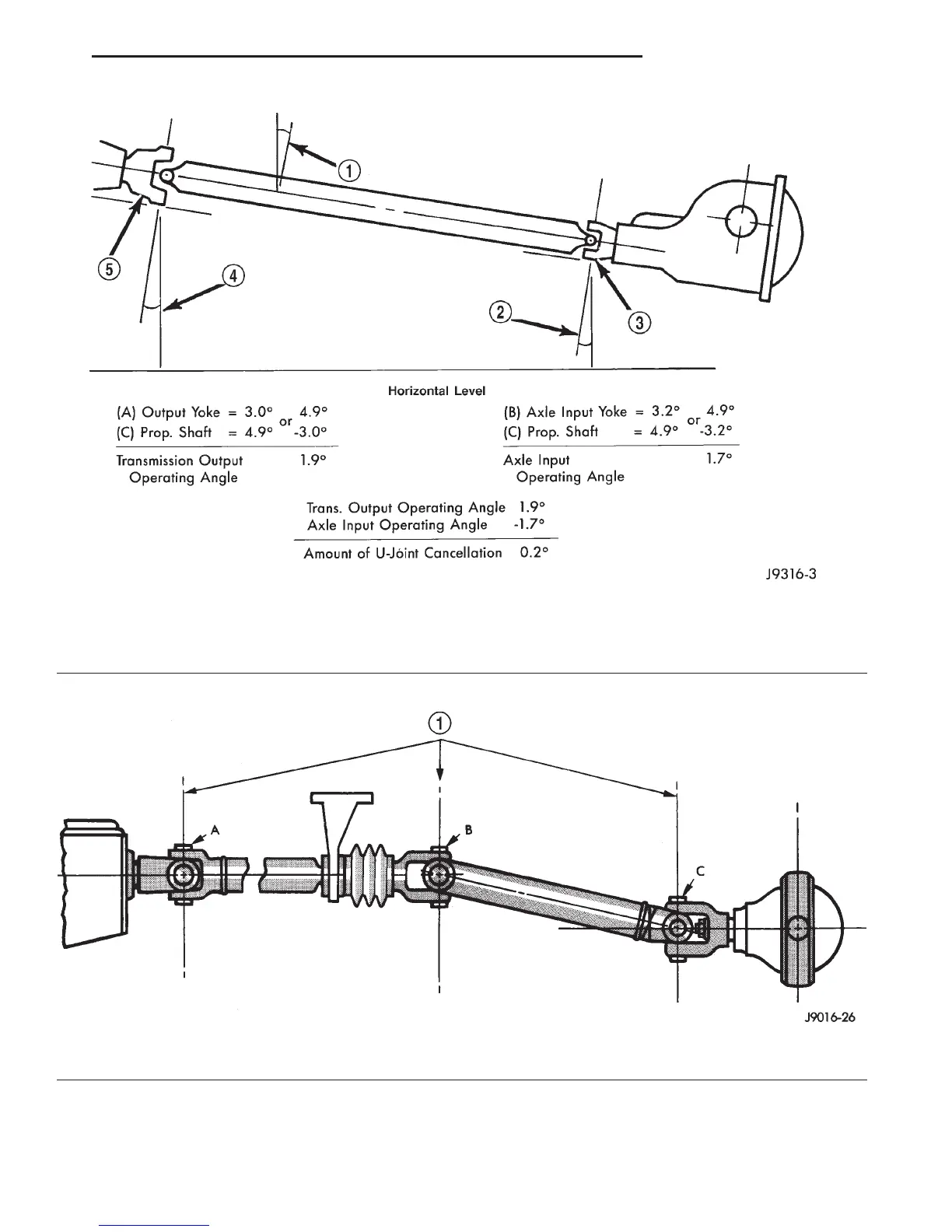

Fig. 14 Universal Joint Angle Example
1 – 4.9° Angle (C)
2 – 3.2° Angle (B)
3 – Input Yoke
4 – 3.0° Angle (A)
5 – Output Yoke
Fig. 15 Universal Joint Angle—Two-Piece Shaft
1 – YOKES MUST BE IN SAME PLANE
DN PROPELLER SHAFTS 3 - 9
REMOVAL AND INSTALLATION (Continued)
