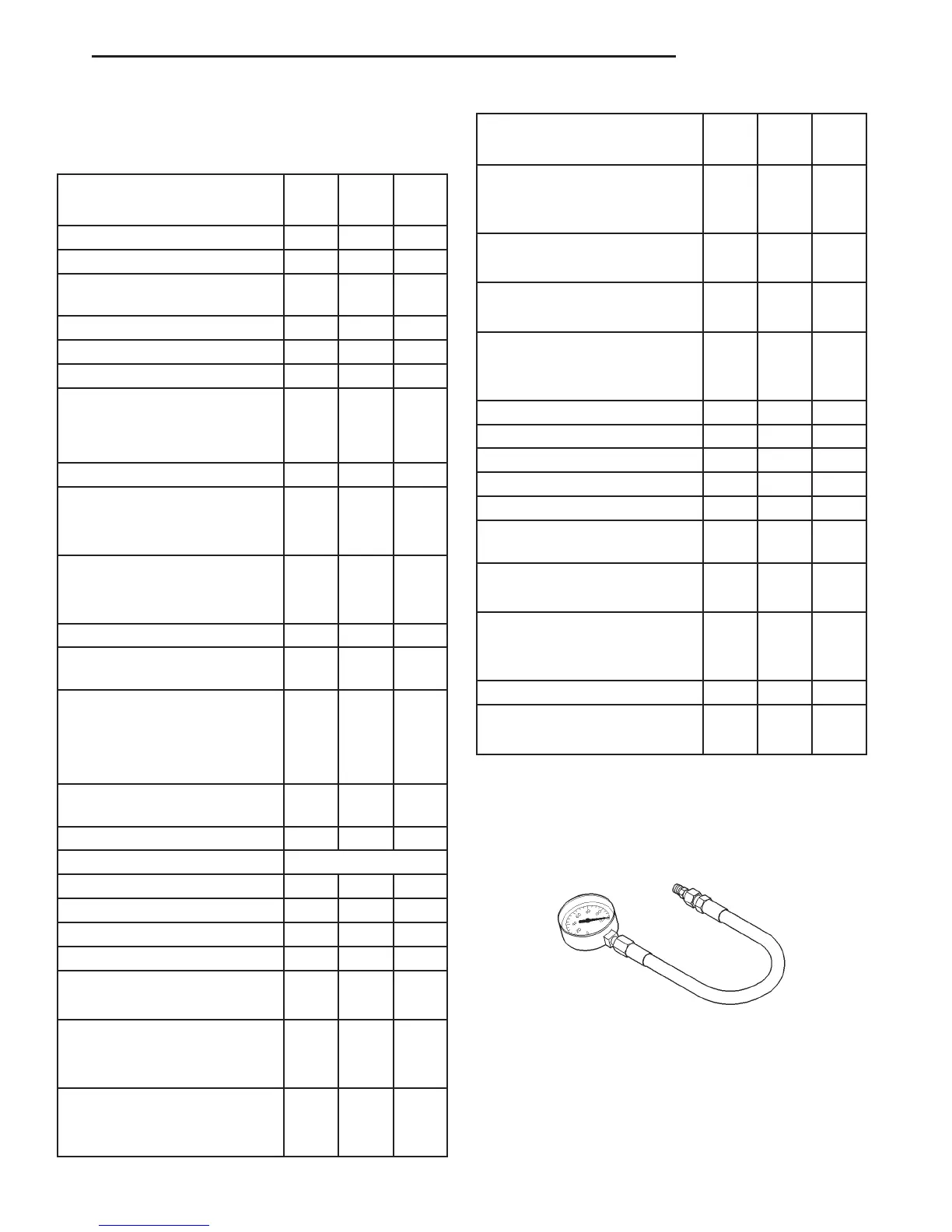

SPECIFICATIONS
TORQUE CHART 5.9L ENGINE
DESCRIPTION N·m Ft. In.
Lbs. Lbs.
Camshaft Sprocket—Bolt 68 50 —
Camshaft Thrust Plate—Bolts 24 — 210
Timing Chain Case Cover—
Bolts
41 30 —
Connecting Rod Cap—Bolts 61 45 —
Main Bearing Cap—Bolts 115 85 —
Crankshaft Pulley—Bolts 24 — 210
Cylinder Head—Bolts
Step 1 68 50 —
Step 2 143 105 —
Cylinder Head Cover—Bolts 11 — 95
Engine Support Bracket to
Block—
41 30 —
Bolts (4WD)
Exhaust Manifold to Cylinder
Head—
34 25 —
Bolts/Nuts
Flywheel—Bolts 75 55 —
Front Insulator—Through
bolt/nut
95 70 —
Front Insulator to Support
Bracket
—Stud Nut (4WD) 41 30 —
—Through Bolt/Nut (4WD) 102 75 —
Front Insulator to Block—
Bolts (2WD)
95 70 —
Generator—Mounting Bolt 41 30 —
Intake Manifold—Bolts Refer to Procedure
Oil Pan—Bolts 24 — 215
Oil Pan—Drain Plug 34 25 —
Oil Pump—Attaching Bolts 41 30 —
Oil Pump Cover—Bolts 11 — 95
Rear Insulator to Bracket— 68 50 —
Through-Bolt (2WD)
Rear Insulator to
Crossmember
41 30 —
Support Bracket—Nut (2WD)
Rear Insulator to
Crossmember—
68 50 —
Nuts (4WD)
DESCRIPTION N·m Ft. In.
Lbs. Lbs.
Rear Insulator to
Transmission—
68 50 —
Bolts (4WD)
Rear Insulator Bracket—Bolts 68 50 —
(4WD Automatic)
Rear Support Bracket to 41 30 —
Crossmember Flange—Nuts
Rear Support Plate to
Transfer
41 30 —
Case—Bolts
Rocker Arm—Bolts 28 21 —
Spark Plugs 41 30 —
Starter Motor—Mounting Bolts 68 50 —
Thermostat Housing—Bolts 25 — 225
Throttle Body—Bolts 23 — 200
Torque Converter Drive
Plate—Bolts
31 — 270
Transfer Case to Insulator 204 105 —
Mounting Plate—Nuts
Transmission Support
Bracket—
68 50 —
Bolts (2WD)
Vibration Damper—Bolt 244 180 —
Water Pump to Timing Chain 41 30 —
Case Cover—Bolts
SPECIAL TOOLS
5.9L ENGINE
Oil Pressure Gauge C-3292
DN 5.9L ENGINE 9 - 189
SPECIFICATIONS (Continued)
