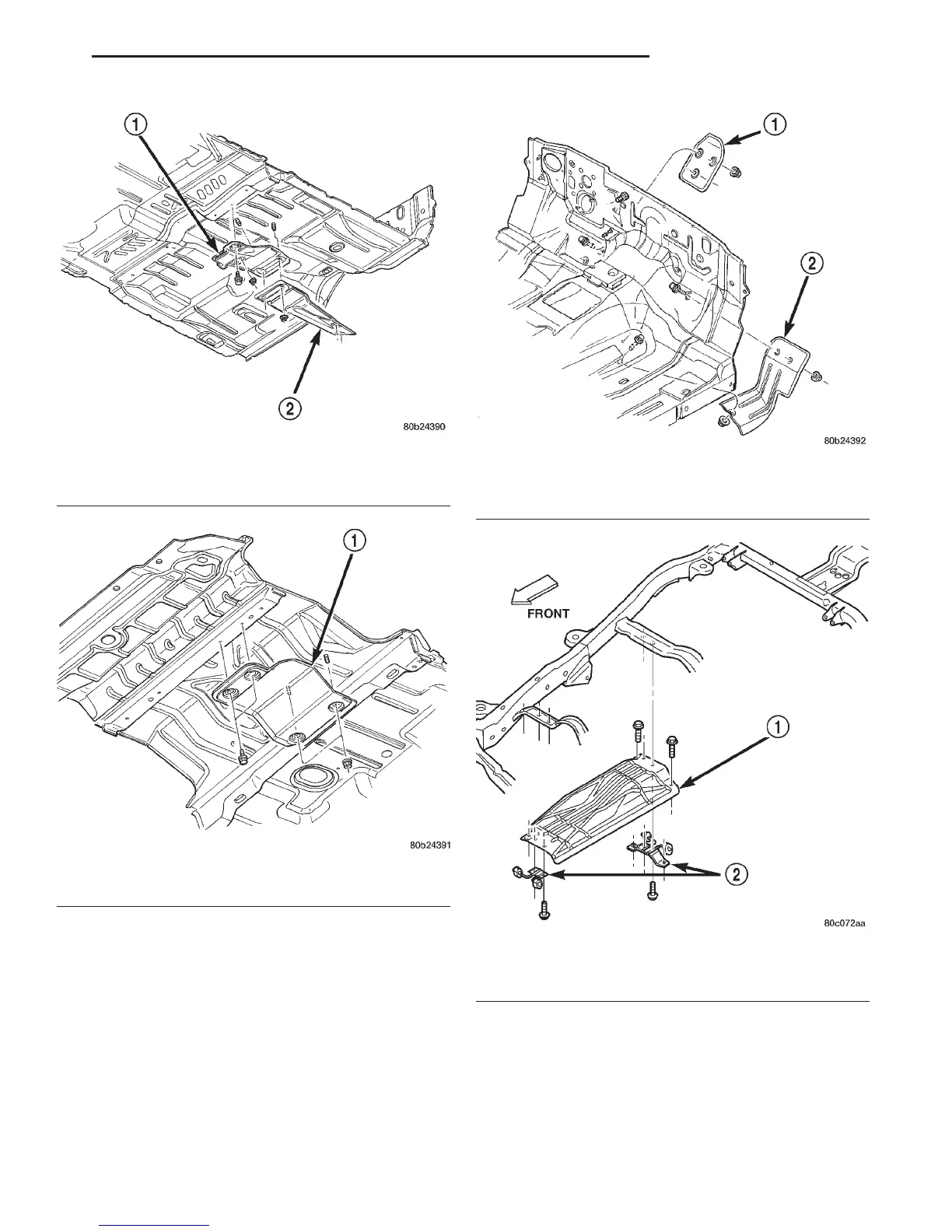

Fig. 12 Front and Rear Floor Pan/Converter Shields
1 – REAR FLOOR PAN/CONVERTER SHIELD
2 – FRONT FLOOR PAN/CONVERTER SHIELD
Fig. 13 Rear Compartment/Tailpipe Heat Shield
1 – REAR COMPARTMENT TAILPIPE SHIELD
Fig. 14 Left and Right Dash Heat Shield
1 – LEFT DASH HEAT SHIELD
2 – RIGHT DASH HEAT SHIELD
Fig. 15 Muffler Heat Shield
1 – MUFFLER HEAT SHIELD
2 – MUFFLER HANGERS
DN EXHAUST SYSTEM 11 - 7
