(6) Remove the bumper fascia from the bumper
(Fig. 2).
INSTALLATION
(1) Position the bumper fascia on the bumper (Fig.
2).
(2) Install upper push pin.
(3) Align all holes and install the lower push pins.
(4) Position step pad on fascia and press into
place.
(5) Connect license plate lamp connector.
(6) Align fascia bracket, wheel house liner shield
and fascia holes and install rivets.

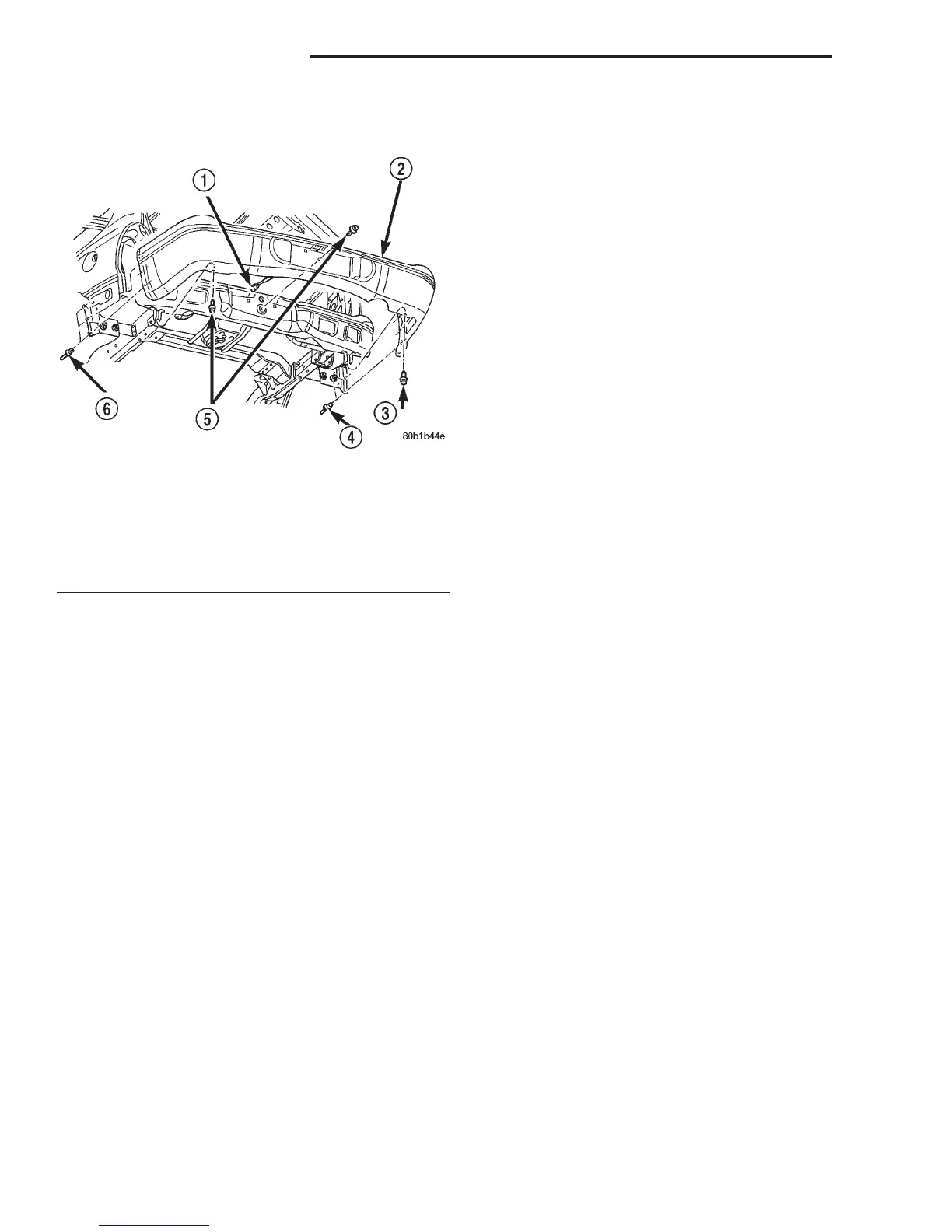

Fig. 3 Rear Fascia
1 – LICENSE PLATE LAMP CONNECTOR
2 – FASCIA
3 – PUSH PIN
4 – RIVET
5 – PUSH PIN
6 – RIVET
