The o-rings and spacer will remain in quick-con-
nect fitting connector body.
(6) Plastic Retainer Ring Type Fitting: This
type of fitting can be identified by the use of a full-
round plastic retainer ring (Fig. 17) usually black in
color.
(a) To release fuel system component from quick-
connect fitting, firmly push fitting towards compo-
nent being serviced while firmly pushing plastic
retainer ring into fitting (Fig. 17). With plastic ring
depressed, pull fitting from component. The plas-
tic retainer ring must be pressed squarely
into fitting body. If this retainer is cocked
during removal, it may be difficult to discon-
nect fitting. Use an open-end wrench on
shoulder of plastic retainer ring to aid in dis-
connection.

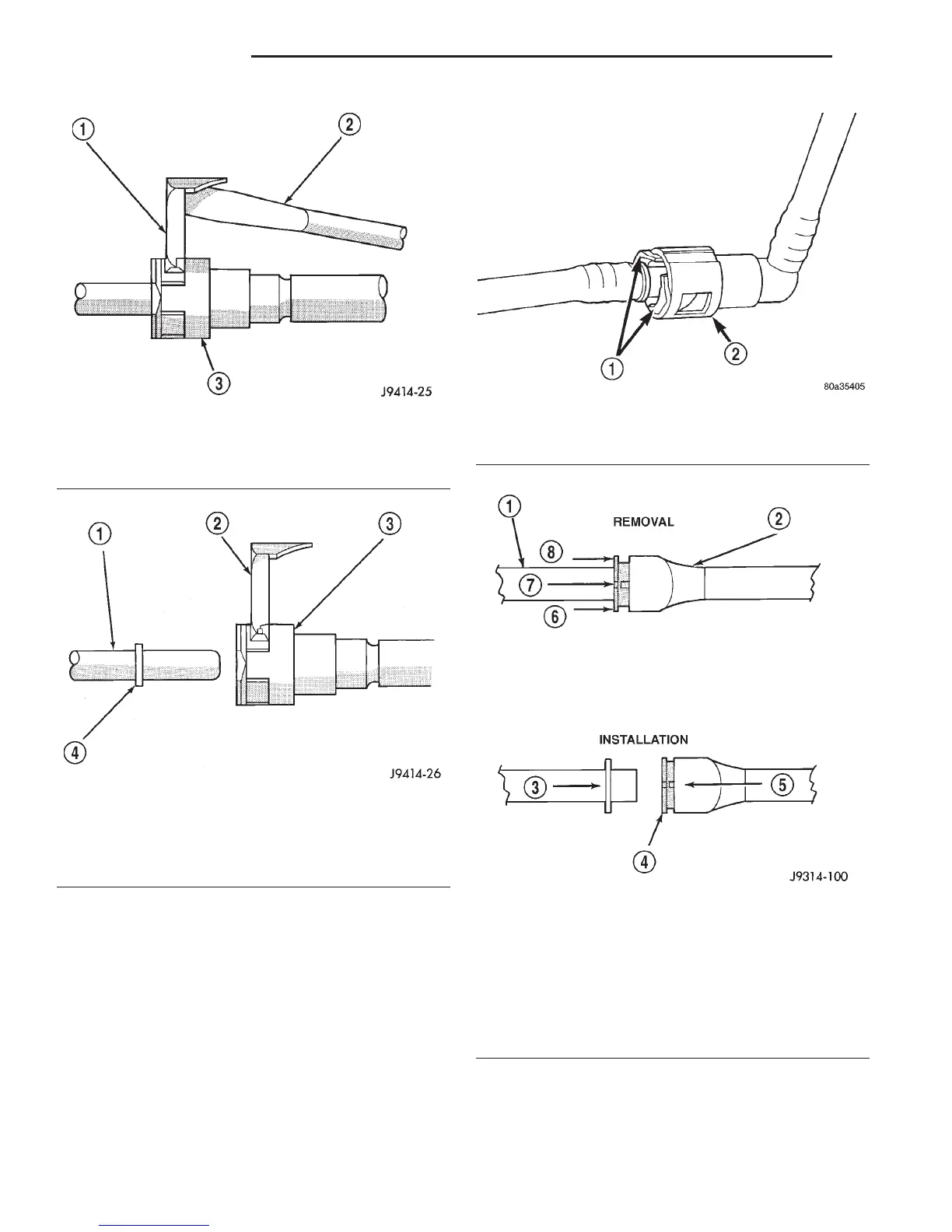

Fig. 14 Disconnecting Single-Tab Type Fitting
1 – PULL TAB
2 – SCREWDRIVER
3 – QUICK-CONNECT FITTING
Fig. 15 Removing Pull Tab
1 – FUEL TUBE OR FUEL SYSTEM COMPONENT
2 – PULL TAB
3 – QUICK-CONNECT FITTING
4 – FUEL TUBE STOP
Fig. 16 Typical Two-Tab Type Quick-Connect Fitting
1 – TAB(S)
2 – QUICK-CONNECT FITTING
Fig. 17 Plastic Retainer Ring Type Fitting
1 – FUEL TUBE
2 – QUICK CONNECT FITTING
3 – PUSH
4 – PLASTIC RETAINER
5 – PUSH
6 – PUSH
7 – PUSH
8 – PUSH
14 - 12 FUEL SYSTEM DN
SERVICE PROCEDURES (Continued)
