Domino Ax150i User Manual

MAINTENANCE
5-8 EPT019297 Issue 1 November 2016
Make-Up Module Filter Replacement
WARNING: Protective equipment such as gloves and glasses must be worn when
this procedure is carried out. Physical contact with printer ink or
make-up can cause skin or eye damage.
CAUTION: Cleanliness is of extreme importance. Ensure debris does not enter the
make-up module during this process or the printer may become damaged.
Observe good cleanliness procedures at all times.
Note: The used make-up module filter contains residual chemicals which are hazardous to
the environment. Local waste disposal regulations must be followed to safely dispose
of the filter.
Tools required: 6mm hex key.
The make-up filter is situated in the make-up module. As a user replaceable part it is coloured
yellow.
To replace the make-up filter:
(1) If the printer is on, press and hold the power button for 2 seconds and wait for the
printer to shut down.
(2) Open the access door to the printer ink compartment.
(3) If a make-up cartridge is attached to the make-up module, remove it by twisting the
cartridge in a clockwise direction and lifting it out of the printer (refer to “Ink and Make-up
Cartridge Replacement” on page 5-4).

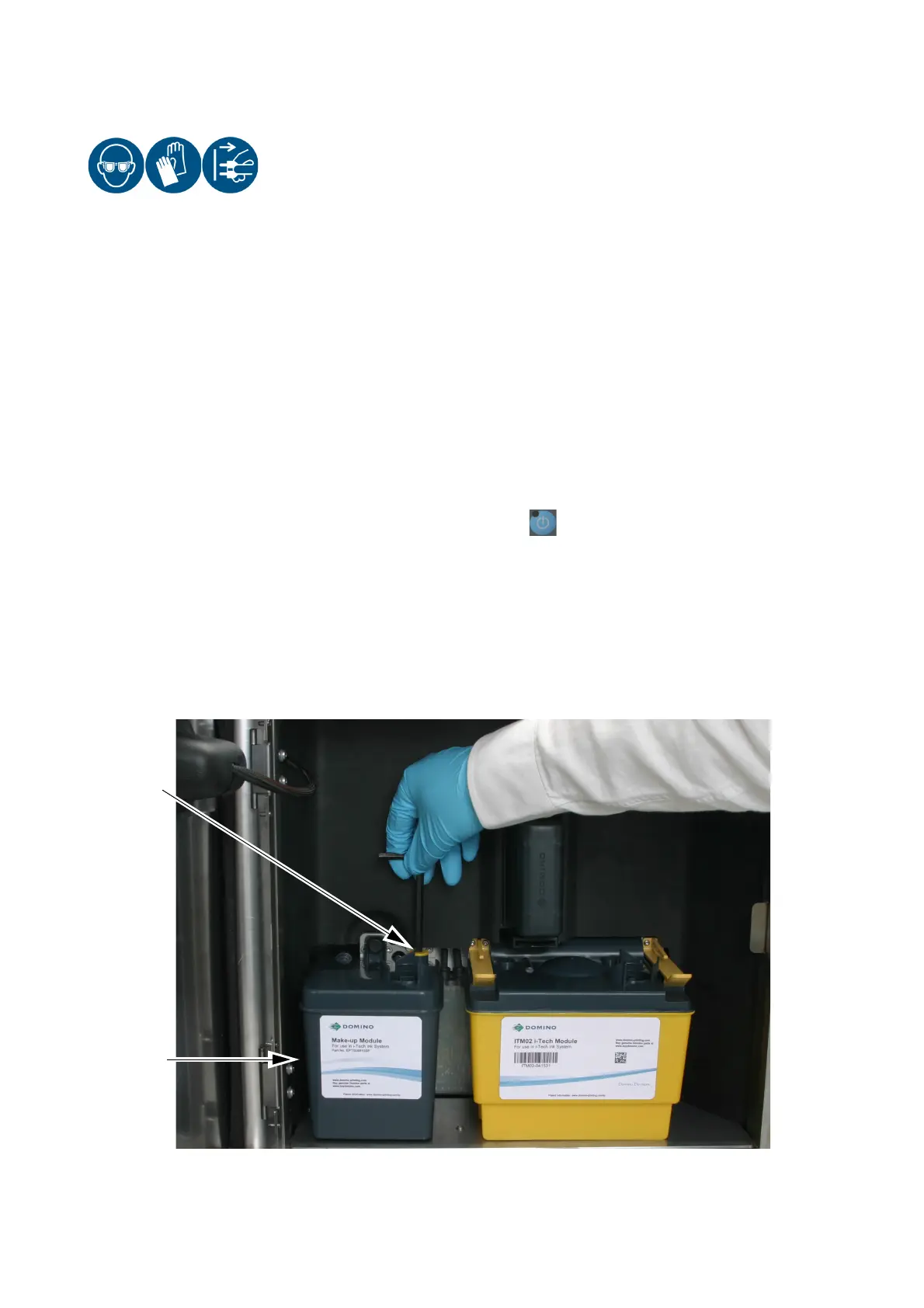

(4) Remove the old make-up filter from the module by inserting a 6mm hex key into the yellow
filter top and unscrewing the filter from the module.
Make-up
Filter
Make-Up
Module
Make-Up Module Filter Replacement

Domino Ax150i Specifications

General

Print Technology	Continuous Inkjet (CIJ)
Printhead	i-Pulse printhead
User Interface	Touchscreen
Connectivity	Ethernet, USB
Operating Temperature	5°C to 45°C
Ink Type	MEK-free options available
Maximum number of lines	5
