Domino Ax150i User Manual

INSTALLATION
EPT019297 Issue 1 November 2016 3-11
TouchPanel Mounting
The TouchPanel Type 3 and Type 4 can be mounted to the top of the cabinet using the angled
bracket and 8 screws provided.
TouchPanels can also be mounted elsewhere on the production line using a VESA 75 bracket.
CAUTION: To reduce the risk of damaging cables or equipment, securely route the
TouchPanel cable away from moving equipment and other hazards.
Tools required: 4mm hex key.

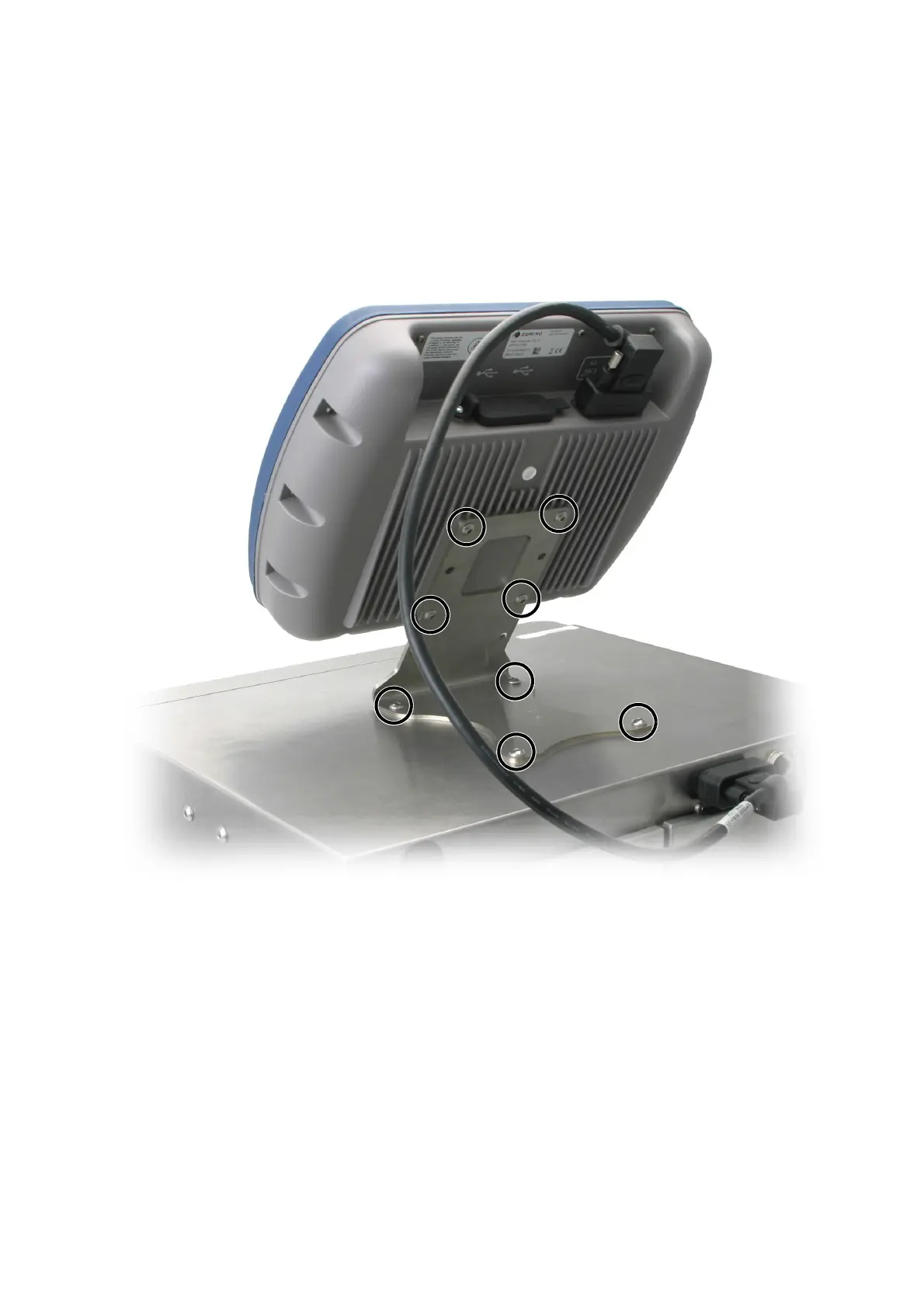

TouchPanel Bracket

Domino Ax150i Specifications

General

Print Technology	Continuous Inkjet (CIJ)
Printhead	i-Pulse printhead
User Interface	Touchscreen
Connectivity	Ethernet, USB
Operating Temperature	5°C to 45°C
Ink Type	MEK-free options available
Maximum number of lines	5
