Domino Ax150i User Manual

OPERATION
4-10 EPT019297 Issue 1 November 2016

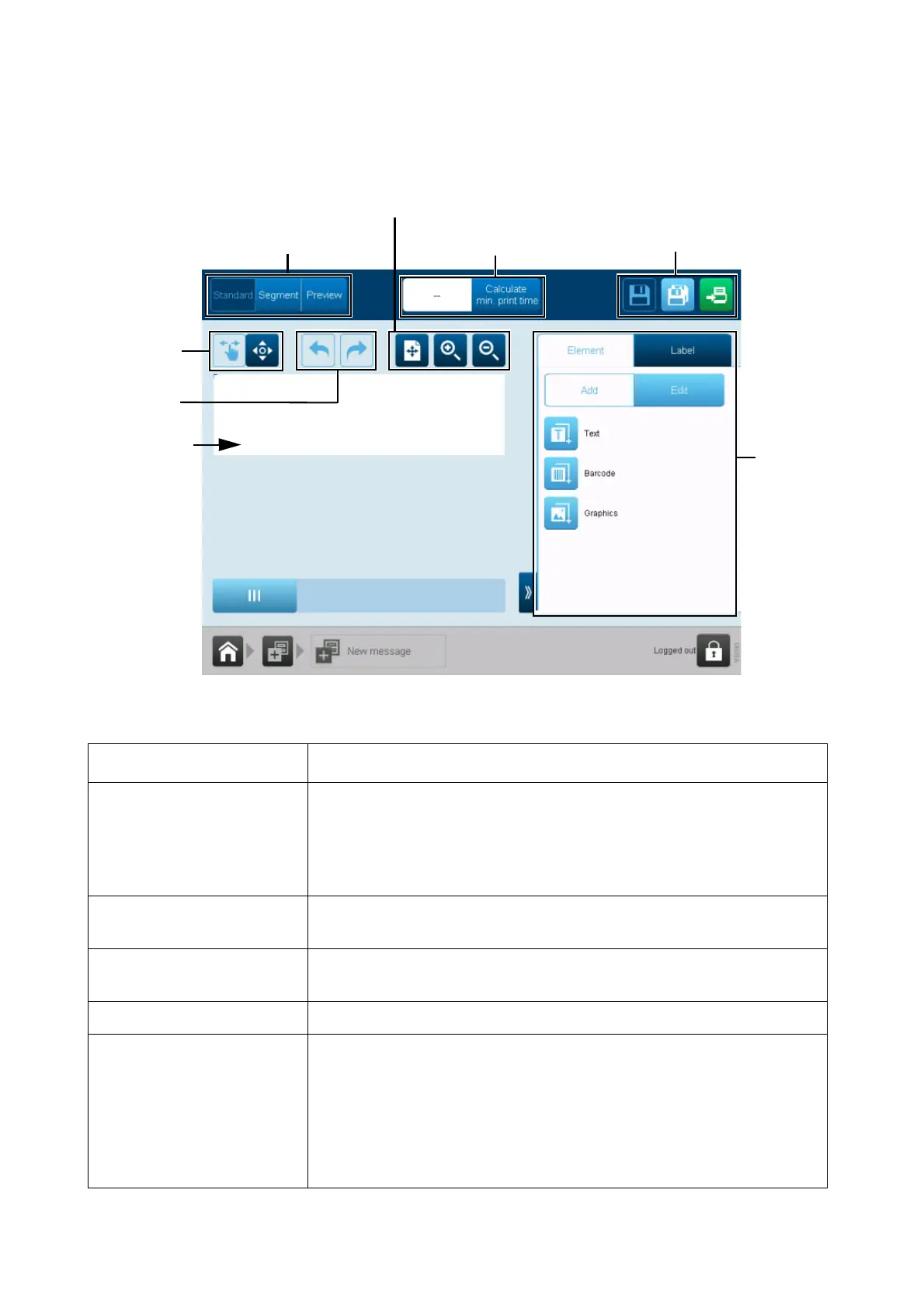

Label Creator Screen
The Label Creator screen is used in label creation and label editing.
Refer to “Creating and Editing a Label” on page 4-20.
Setting Name Explanation
Label View Options The Label Creator contains three different viewing options:
Standard - View, add and edit label elements.
Segment - View, add and edit label segments.
Preview - Preview how the label will look when printed.
Label Zoom Options Zoom in and out of the label design, or fit the label design to the
design area.
Calculate Print Time Press to calculate how long it will take to print the current label
design.
Save/Save As/Print Save the label design or send it to print.
Side Menu The Side Menu contains two tabs:
Element - Add and edit label elements such as text, barcode and
graphics.
Label - Edit the label layout. Edit label print settings such as the
label offset and label repeat. Manage label elements by locking
them.
Save/Save as/Print
Calculate Print Time
Undo/
Redo
Label Zoom Options
Label View
Side
Menu
Label Creator Screen
Label Design
Area
Element
Moving
Options

Domino Ax150i Specifications

General

Print Technology	Continuous Inkjet (CIJ)
Printhead	i-Pulse printhead
User Interface	Touchscreen
Connectivity	Ethernet, USB
Operating Temperature	5°C to 45°C
Ink Type	MEK-free options available
Maximum number of lines	5
