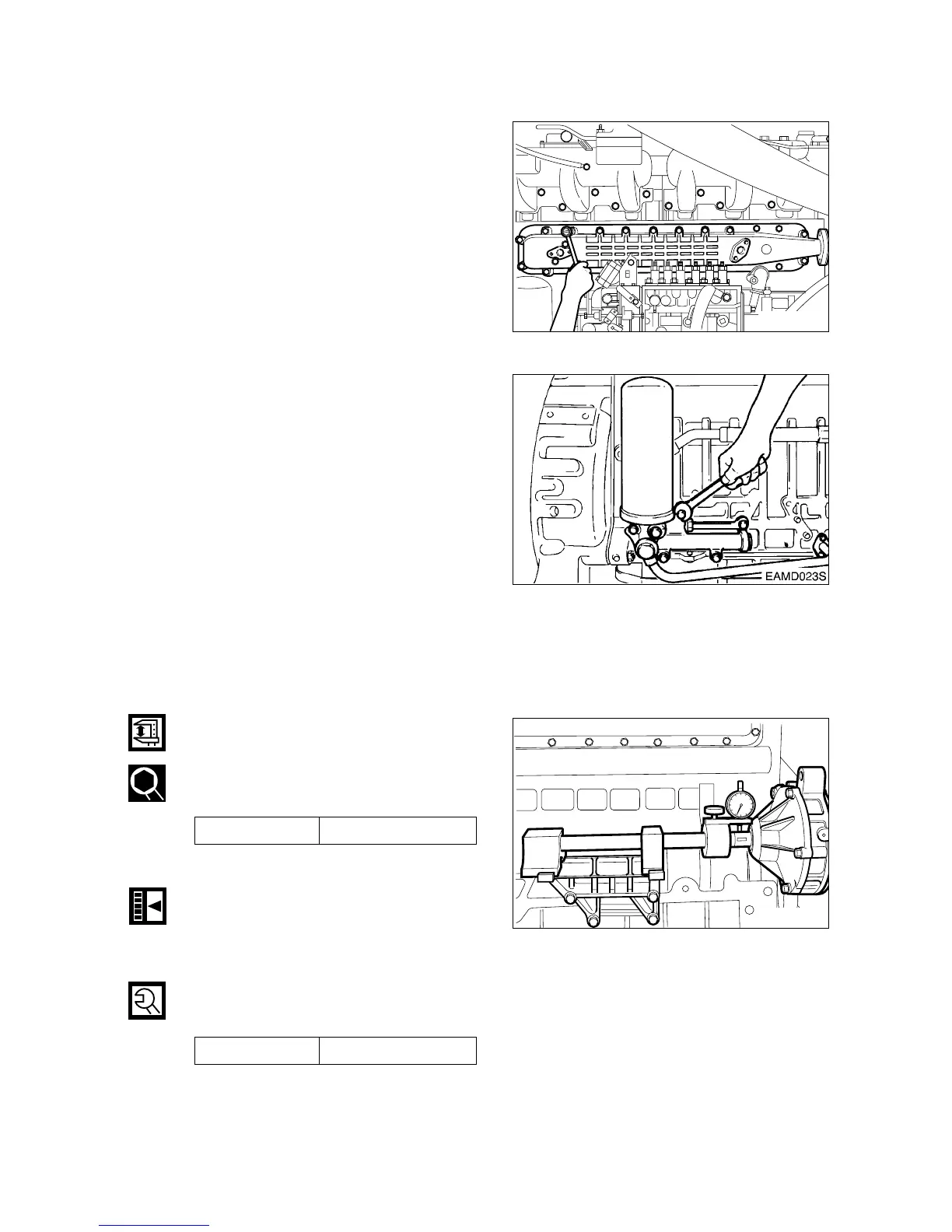

9.3.24. Oil cooler
¥
Install the oil cooler onto the oil cooler
cover.
¥
Carefully apply the gasket to prevent oil
leakage.
¥
Do not damage the gasket and install
the cover onto the cylinder block.
¥
Connect a connection pipe between the
water pump and oil cooler.
9.3.25. Oil filter
¥
Install the oil filter onto the cylinder
block, and tighten the fixing bolts.
¥
With the hollow screw, assemble the oil
pipe connected between the oil cooler
and cylinder block.
¥
Install a connection pipe between the oil
cooler and oil filter.
¥
Install the oil cooler connecting pipe.
¥
Install packing and assemble the car-
tridge using a filter wrench.
9.3.26. Injection pump
¥
Install the injection pump bracket in the
cylinder block.
¥
After measuring the amount of run-out
with an alignment setting jig, disassem-
ble the bracket, adjust the shims, then
reassemble it.
¥
Mount the top/bottom adjusting shims in
the bracket and then mount the fuel
injection pump.
¥
Tighten the fixing bolts in a diagonal
sequence to specified torque.
- 106 -
