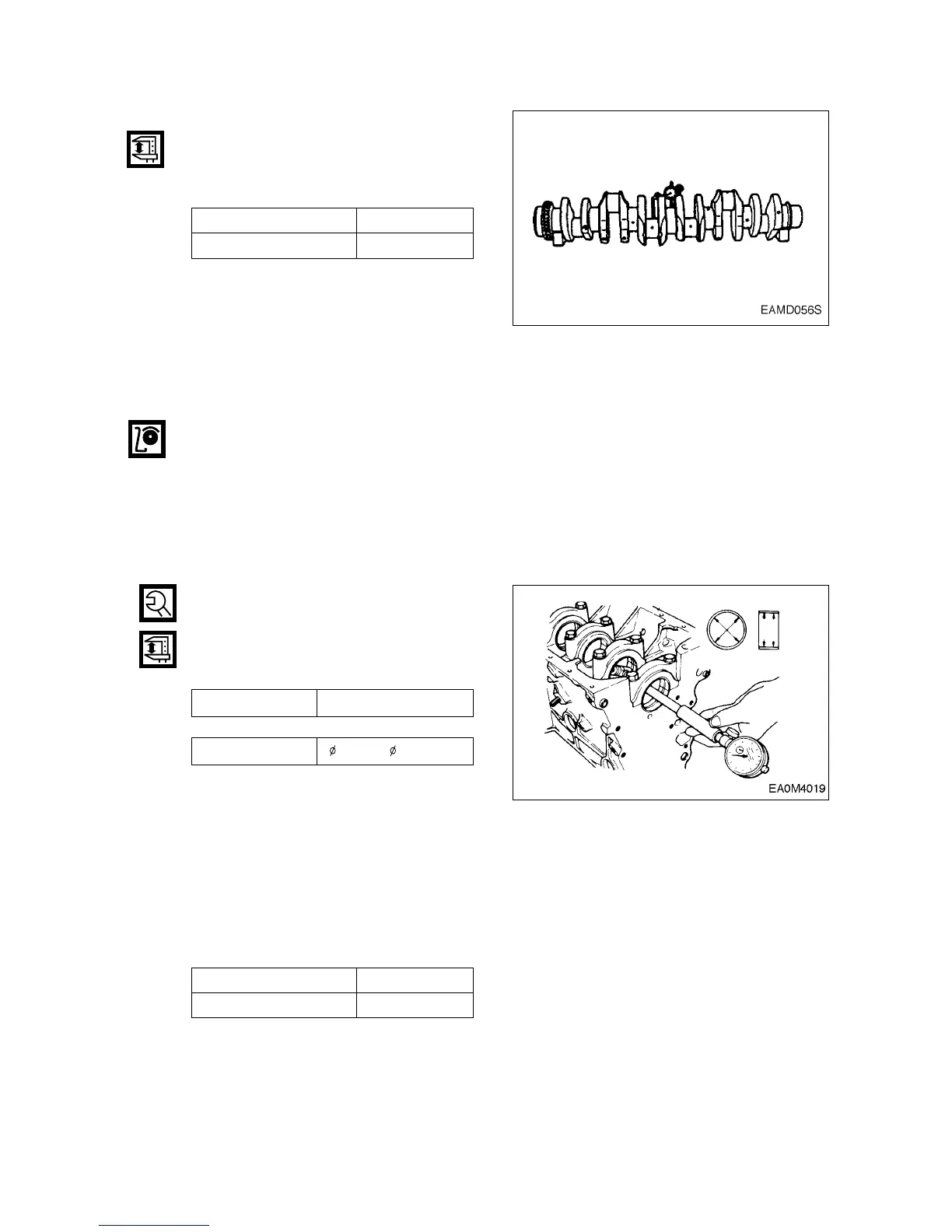

3) Crankshaft run-out
•
Support the crankshaft on V blocks.
•
Turn the crankshaft with a dial indicator
placed on the surface plate and take the
amount of crankshaft run-out.
9.2.7. Crank shaft bearing and connection rod bearing
1) Visual check
Visually check the crankshaft bearing and
connecting rod bearing for scores, uneven
wear or damage.
2) Oil clearance between crankshaft and bearing.
•
Main bearing clearance (Method 1)
Install the main bearing in the cylinder
block, tighten the bearing cap to speci-
fied torque, then measure the inside
diameter.
Compare the two values obtained
through measurement of main bearing
inside diameter with the outside diame-
ters of crankshaft journals to determine
the oil clearance.
<Main bearing oil clearance>
- 84 -
Standard Limit
0.05 mm 0.1 mm
Torque 30 kg
•
m
Standard Dia.
96.06 ~ 96.108 mm
Standard Limit
0.072 ~ 0.142 mm 0.25 mm
