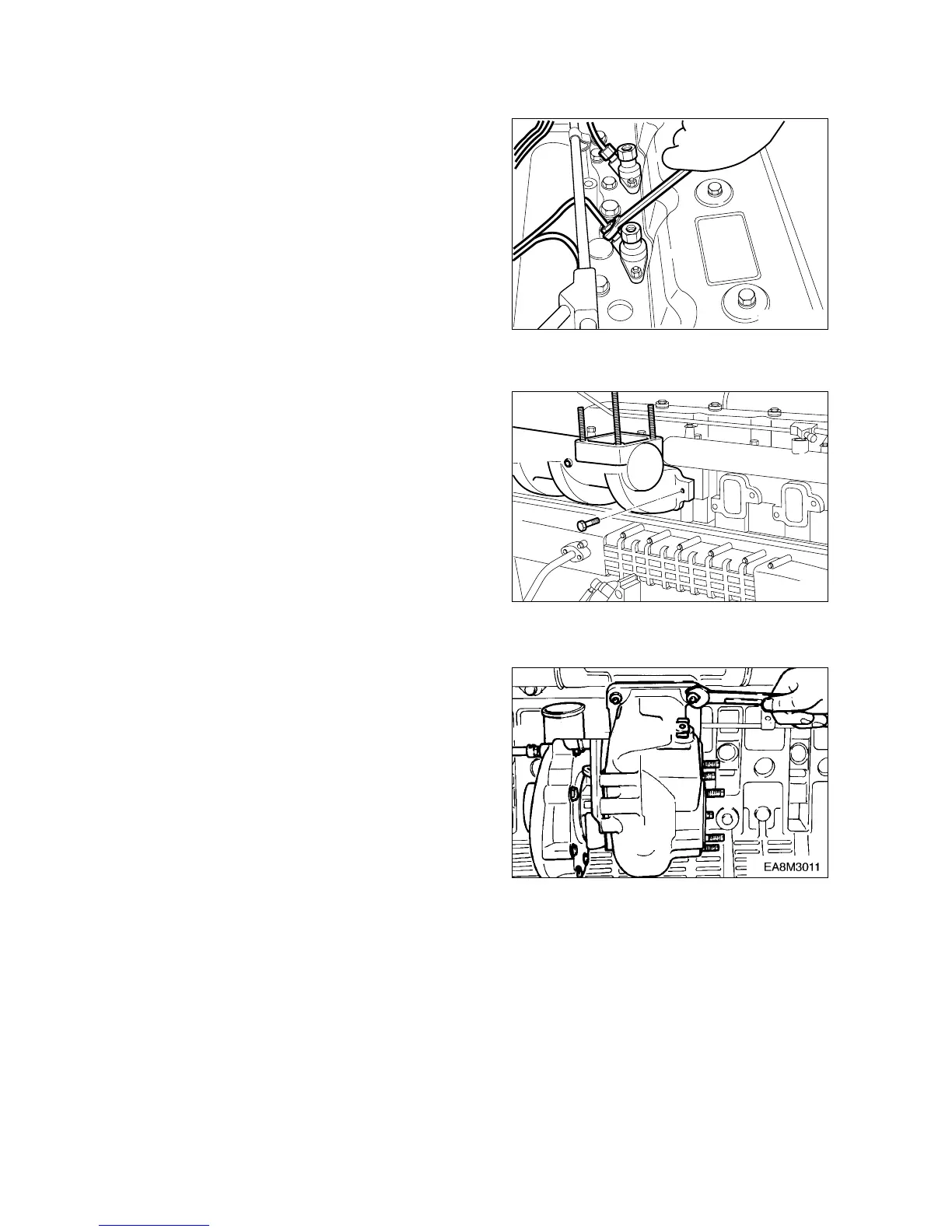

9.1.11. Injection pipe
¥
Unscrew the hollow screws to disassem-
ble the fuel return pipe.
¥
Remove the nuts installed on the fuel
injection pump and nozzles, then disas-
semble the injection pipe.
9.1.12. Intake manifold
¥
Remove the air hose connected to the
fuel injection pump.
¥
Loosen the intake manifold fixing bolts,
then disassemble the intake manifold.
9.1.13. Turbo charger
¥
Release the clamp screw of the rubber
hose connected to the intake manifold,
and take off the intake pipes both simul-
taneously.
¥
Unscrew the exhaust pipe bracket fixing
bolts, release the nuts installed on the
turbocharger, then disassemble the
exhaust pipe.
¥
Remove the turbocharger after removing
the oil supply pipe and return pipe and
releasing the fixing nuts.
- 63 -
