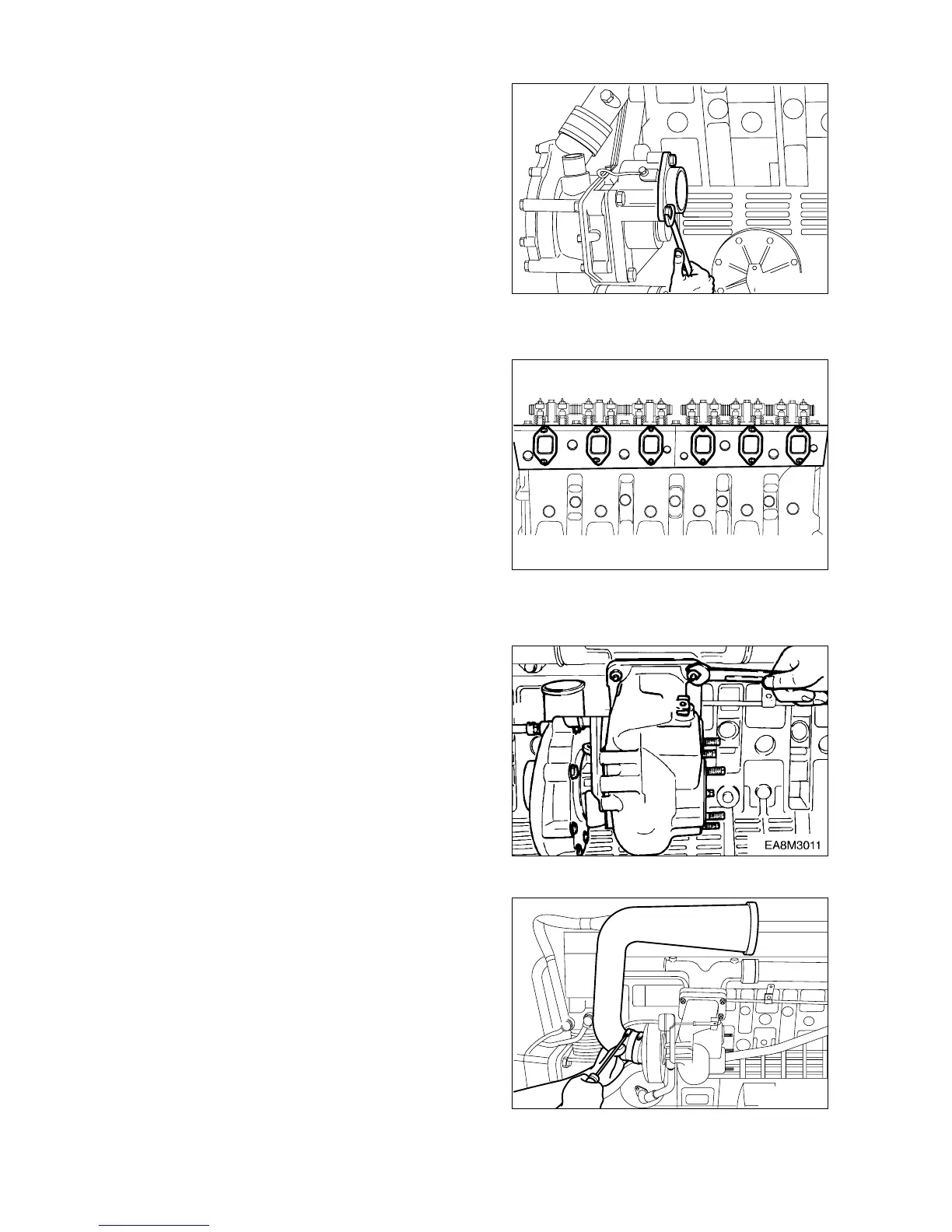

9.3.30. Power take-off
¥
Assemble the power take-off sub assem-
bly.
9.3.31. Exhaust manifold
¥
Install the exhaust manifold gasket over
the stud bolts by aligning the gasket with
the exhaust port on the cylinder head so
that the face and back of the gasket can
be positioned correctly.
¥
Semi-assemble the exhaust manifold
and install the heat resisting plate.
¥
First, install the nuts and then place an
additional nut on each of them to prevent
looseness.
9.3.32. Turbocharger
¥
Fit a new gasket over the stud bolts of
the exhaust manifold before tightening
those turbocharger fixing bolts.
¥
Install the oil supply pipe and return pipe.
¥
Semi-assemble the bracket to the intake
pipe, connect a rubber hose between the
turbocharger and intake pipe using rub-
ber hose, then assemble the bracket
completely.
- 109 -
