2. General Information
2.1. Engine Assembly

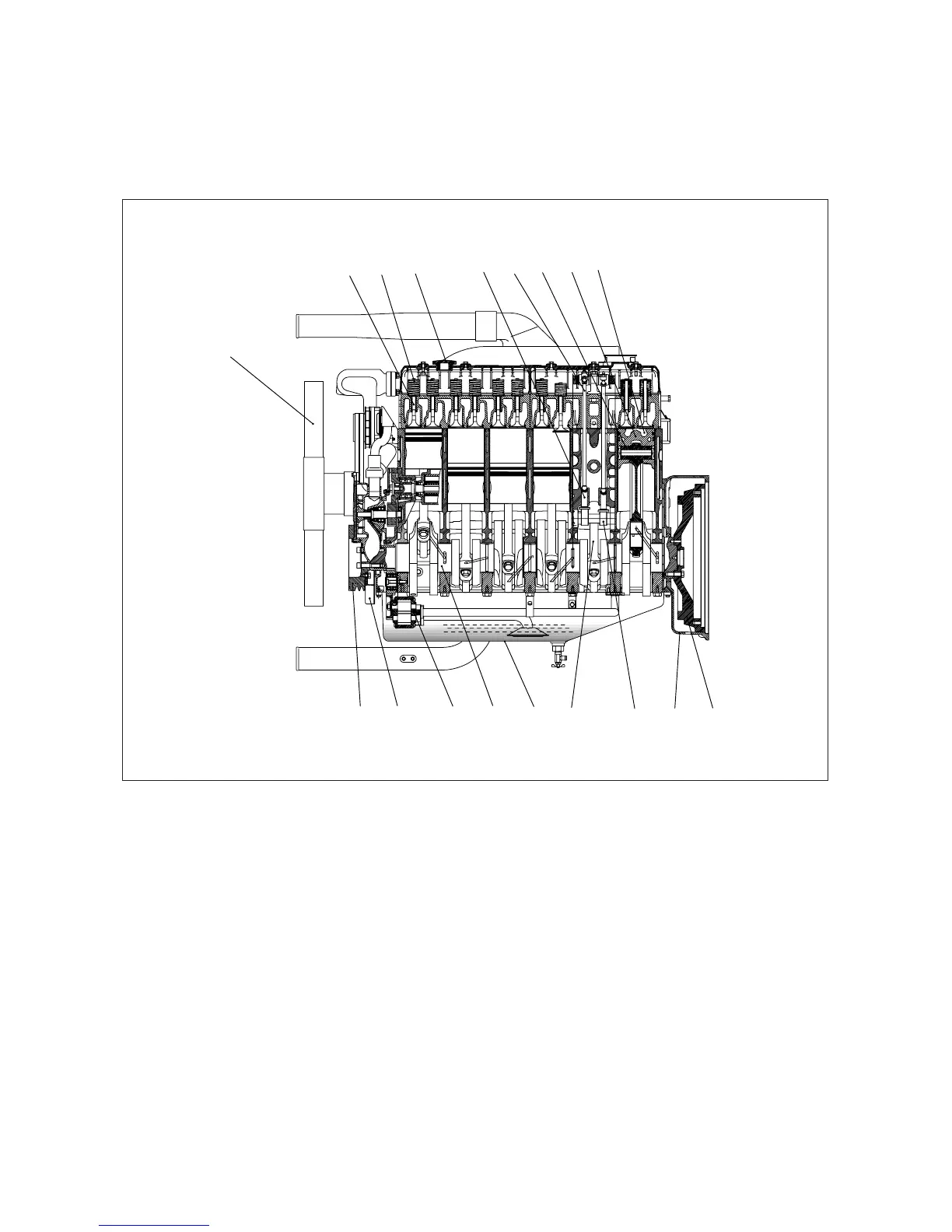

2.1.1. Engine sectional view (Longitudinal)
- 5 -
EA8M1002
1
2
10 11 12 13 14 15 16 17 18
3 4 56789
1. Cooling fan
2. Exhaust valve
3. Valve spring
4. Oil filter
5. Tappet
6. Push rod
7. Piston pin
8. Piston
9. Combustion chamber
10. Crankshaft pulley
11. Vibration damper
12. Oil pump
13. Crankshaft
14. Oil pan
15. Connecting rod
16. Camshaft
17. Flywheel housing
18. Flywheel
