Doosan DE12T - Timing Gear

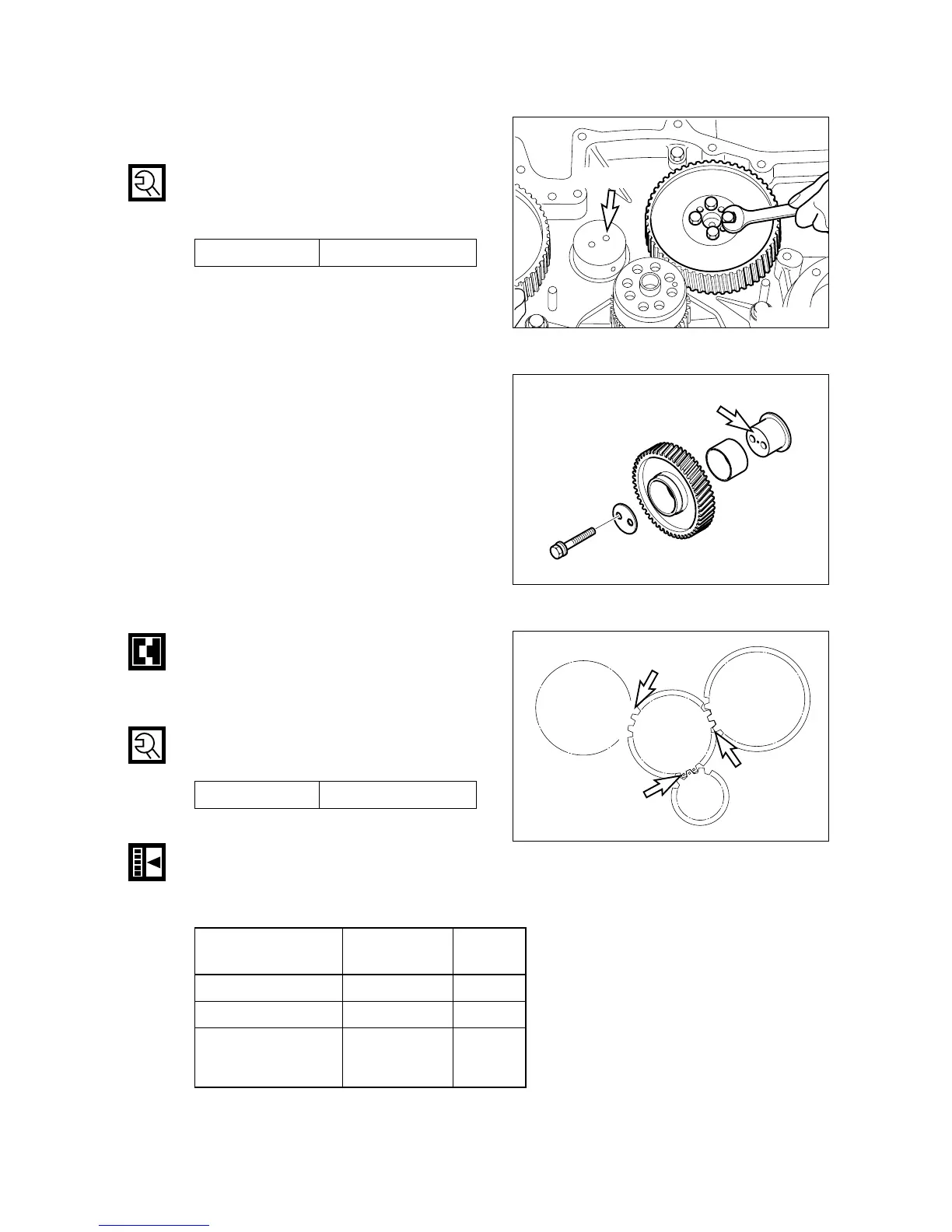

9.3.11. Timing gear
¥
Install the oil pump idle gear onto the
No.7 bearing cap.
¥
Install a thrust washer over the camshaft
and assemble the cam gear by aligning
it with camshaft key groove.
¥
With the oil port on the idle gear pin fac-
ing the cylinder block, install the idle
gear pin.
¥
Install the idle gear by coinciding the
marks impressed on the crank gear,
cam gear, fuel injection pump drive gear,
and idle gear.
¥
Install a thrust washer on the idle gear
and tighten to specified torque.
¥
Check and adjust the amount of back-
lash between gears using a feeler
gauge.
- 96 -
Torque 3.1 kg
¥ m
Torque 7.4 kg ¥ m
EAMD083I
Idle gear pin
EA8M3004
Idle gear pin
EA8M3005
Fuel injection
pump drive gear
Idle gear
Cam gear
Crank
gear
Mark "0"
Mark "2"
2
2
2
Mark "1"
1
1
1
Measuring position
Backlash Limit
(between)
Cam gear & idle gear 0.16 ~ 0.28 mm 0.35 mm
Crank gear & idle gear 0.16 ~ 0.28 mm 0.35 mm
Injection pump &
0.16 ~ 0.28 mm 0.35 mm
idle gear
