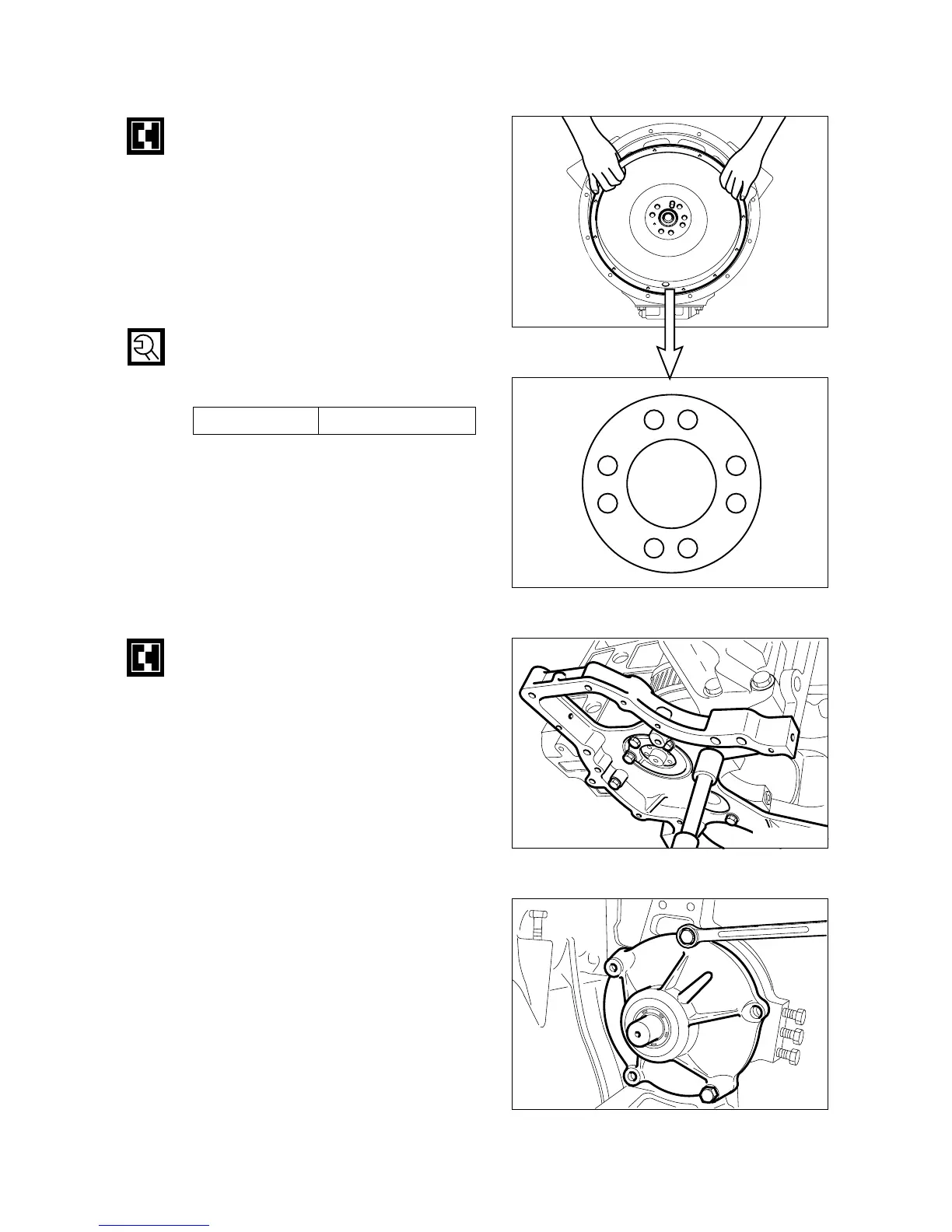

9.3.8. Flywheel
¥
Install a guide bar into a bolt hole on the
crank shaft, and lift the flywheel to align
the dowel pin with the pin hole on the fly-
wheel for temporary assembly opera-
tion.
¥
Install bolts in the remaining holes, take
out the guide bar, then install a bolt in
the hole where the guide bar had been
inserted.
¥
Tighten the fixing bolts using a torque
wrench in a diagonal sequence to spec-
ified torque.
9.3.9. Timing gear case
¥
Mount gasket using dowel pin on the
cylinder block.
¥
Install the timing gear case by aligning
the dowel pin with the dowel pin hole on
the timing gear case.
9.3.10. Fuel injection pump drive gear
assembly
¥
Mount gasket by aligning the bolt holes
with the pin holes on the bearing hous-
ing.
¥
Tighten up the fixing bolts in the direc-
tion of fuel injection pump.
- 95 -
