Doosan DE12T - Page 12

2) P126TI / P126TI-
- 8 -
EA8M1005
12
768910
14 15 16 17 18 19
20 21
22
23
24
25
11
345 12 13

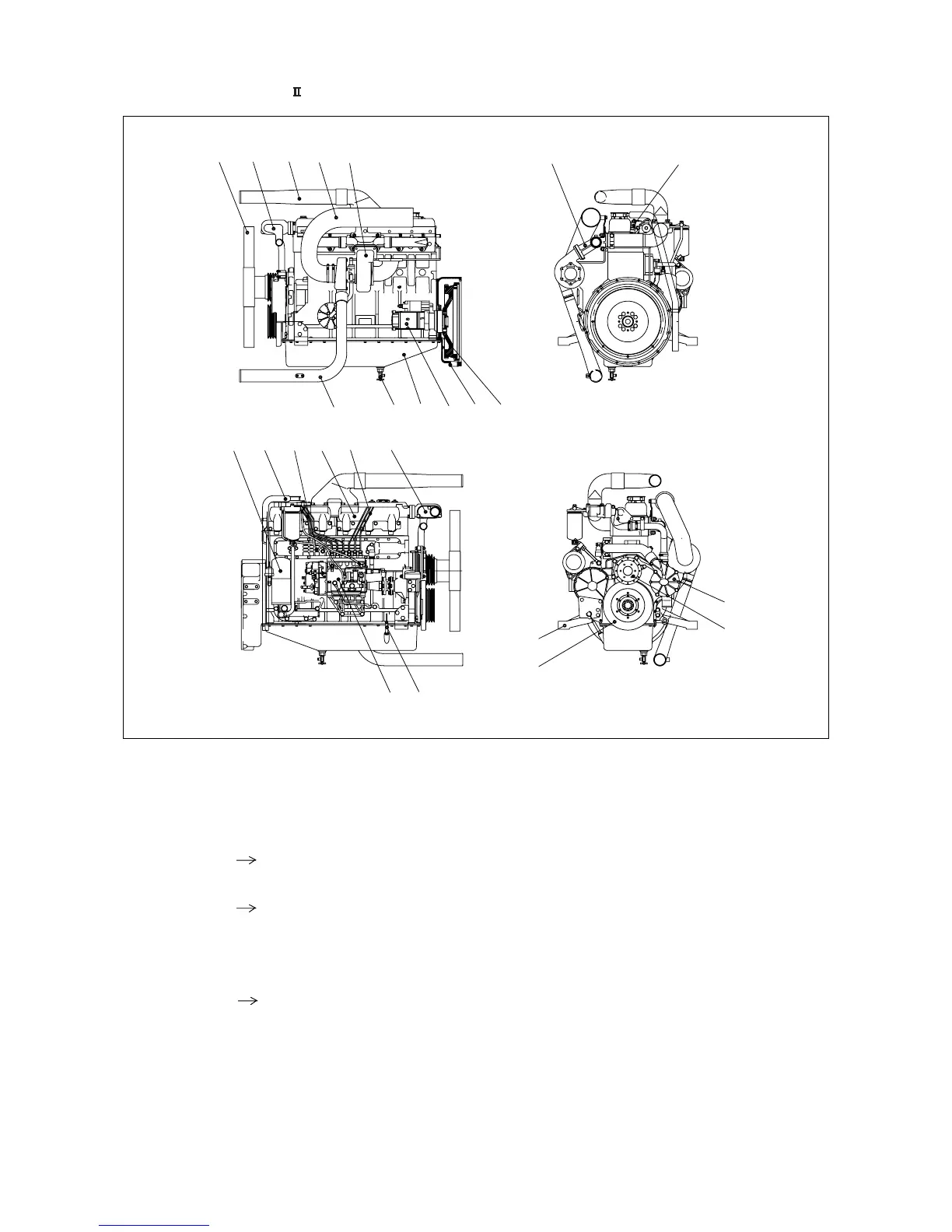

1. Cooling fan
2. Cooling water pipe
3. Air pipe
(Intercooler Intake manifold)
4. Air pipe
(Air cleaner Turbocharger)
5. Turbocharger
6. Oil drain valve
7. Air pipe
(Intercooler Intake manifold)
8. Oil pan
9. Starter
10. Flywheel housing
11. Flywheel
12. Exhaust manifold
13. Injection nozzle assembly
14. Oil filter
15. Breather hose
16. Oil cooler
17. Intake manifold
18. Injection pipe
19. Thermostat
20. Injection pump
21. Oil level gauge
22. Mounting bracket
23. Vibration damper
24. Water pump
25. Fan drive
