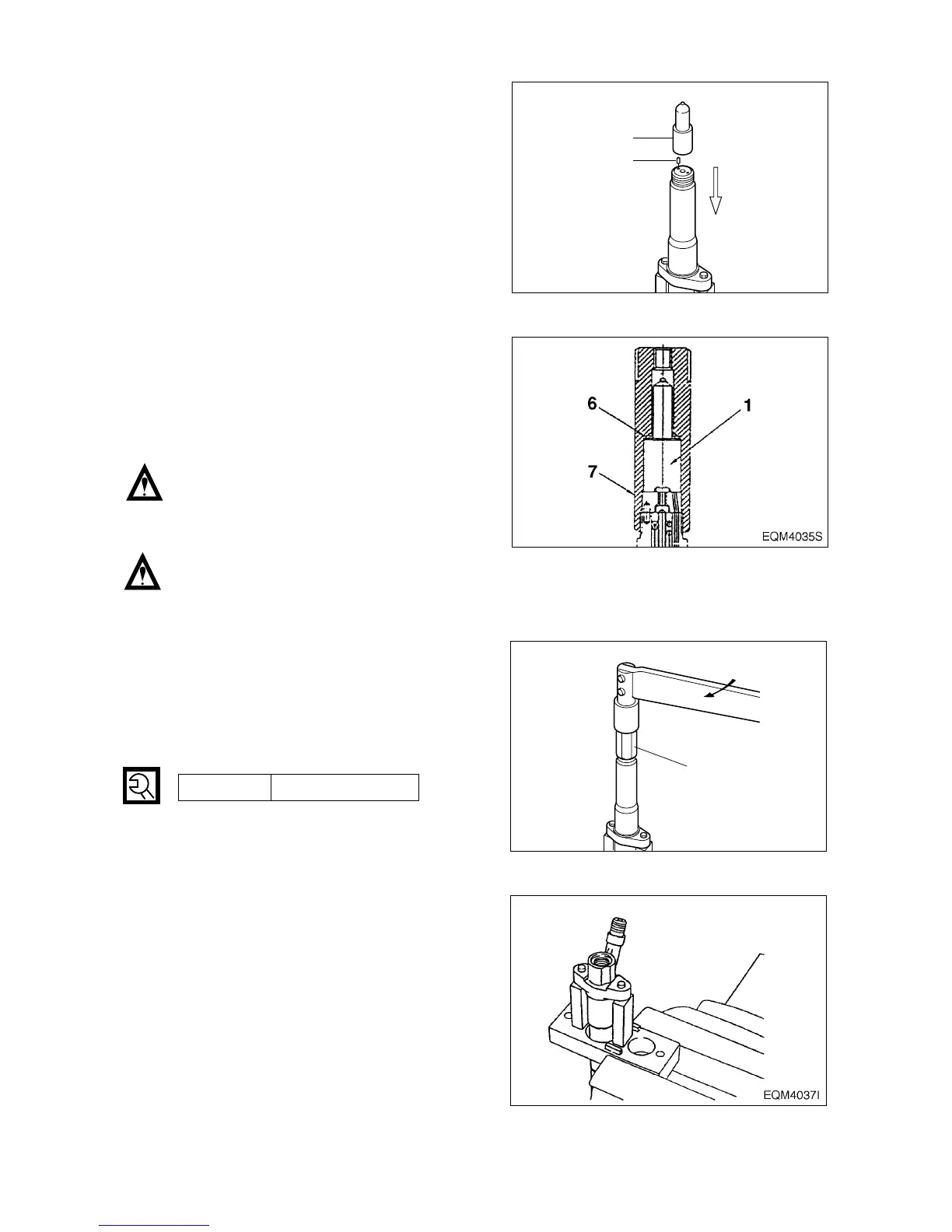

f. Install the pin (16) and nozzle (A) onto the
spacer.
g. After installing the gasket (6:157892-1500)
on the nozzle, use the cap nut (7:157892-
4000 : SW22mm) to fix the nozzle onto the
nozzle holder.
Note : While tightening the cap nut,
keep checking to see if the lock pin
comes all the way into the nozzle.
Note : Tighten the retaining nut until
it resists hand tightening, then fur-
ther tighten it using a torque
wrench.
h. Be sure to follow the specified torque rat-
ing when tightening the adjusting retaining
nut.
i. With the cap nut facing upward, install the
nozzle holder on the plate.
- 145 -
