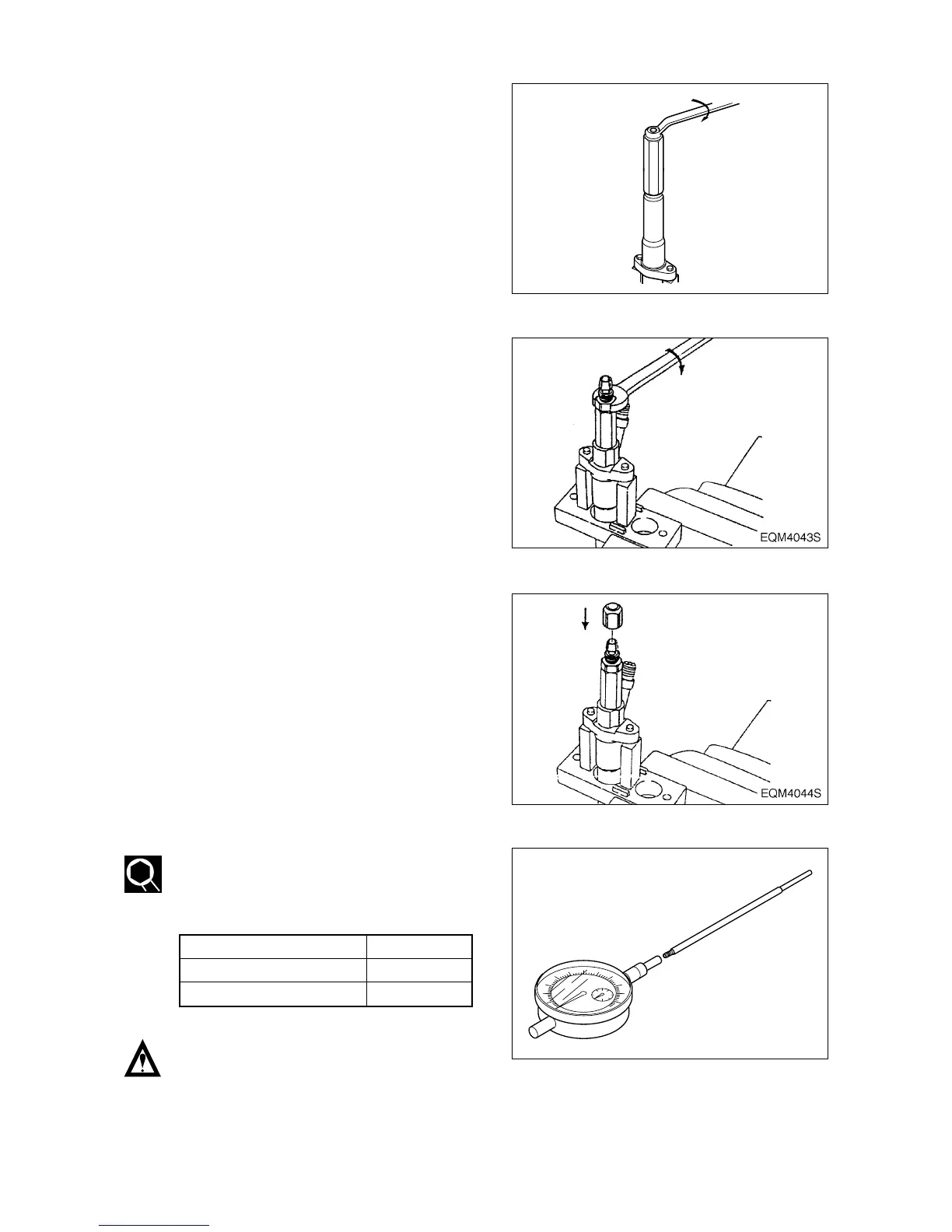

Inspecting the needle valve for full lift
a. Install gasket (026508-1140) and plug
(157892-1600 : SW12mm) onto the
adjusting retaining nut (157892-1400).
b. Install the nozzle holder on the plate
with the cap nut facing upward.
c. Install the holder(157892-4100: SW12
mm) into the cap nut.
d. Install a nut (157892-1000 : SW 17mm)
on the holder.
e. Assemble the pin (157892-4200 or
157892-4300) to the dial gauge
(157954-3800).
Note : ÒLÓ means the length of the pin
except the threaded portion.
