Doran 7000 - Serial Cable Assembly Details

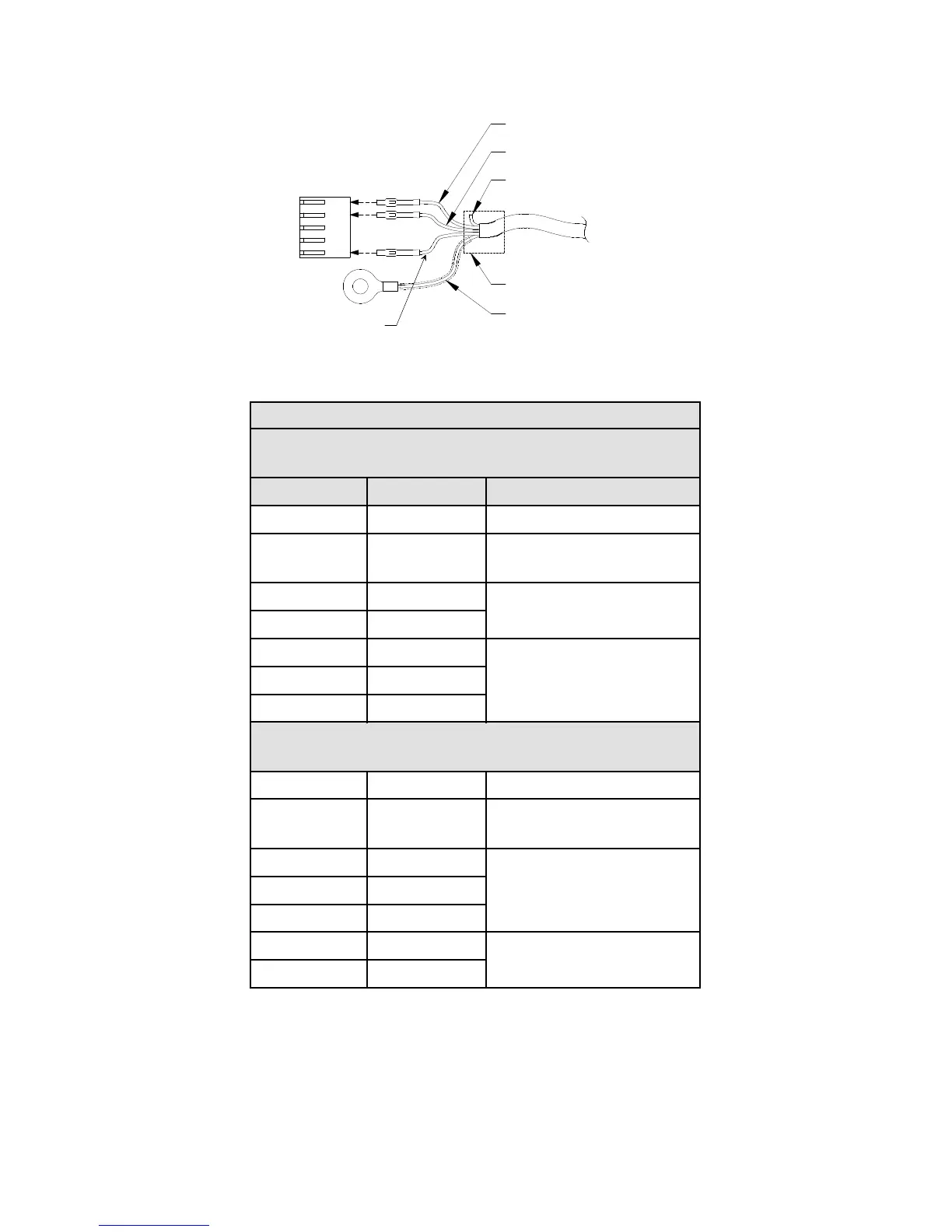

Fig. 2: Connector J2; Serial cable assembly
Serial Cable Assembly
DB25 Female connector w/ hardware
handshaking
Function Pin Wire Color
RXD 2 White
Signal
Gnd
7 Black
RTS 4 Red
Jumper 4 to 5
CTS 5
DSR 6
Jumper 6 to 8 to 20
DCD 8
DTR 20
DB9 Female Connector w/ Hardware
Handshaking
RXD 3 White
Signal
Gnd
5 Black
DCD 1
Jumper 1 to 4 to 6
DTR 4
DSR 6
RTS 7 RED
Jumper 7 to 8
CTS 8
Table 5: Serial Cable assembly with Hardware Handshaking
38
WHITE
RED
GREEN
BLACK
SHRINK TUBING
SHIELD WITH
SHRINK TUBING
