22

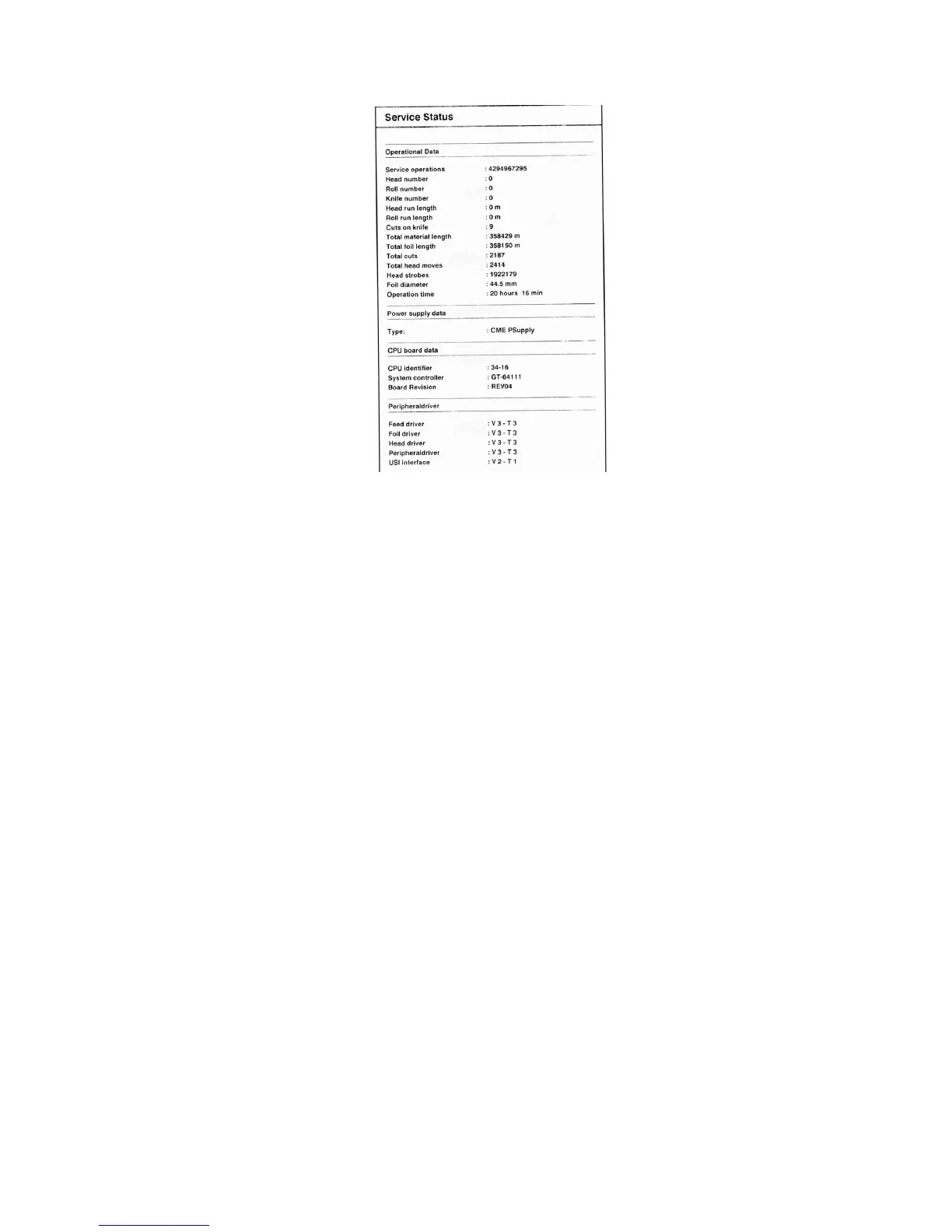

Figure 5A: Sample Service Data printout
Dottest endless
Not for use with Thermaprint 64. See Dottest punched.
Dottest punched
Dot test for application with punched label stock. This function prints a pattern which
enables trained personnel to check the adjustment as well as the function of the print
head. The Dottest endless or Dottest punched prints a pattern consisting of 33 rows
filled with vertical lines on the upper label area. All lines have a constant distance of
4 dots. With every new row, the line pattern is shifted one dot. The resulting line-
pattern repeats every four rows. The test pattern shows missing dots clearly as white
vertical lines running through the pattern.
Reference label
Prints a label with some examples of barcodes, fonts, logos.
