Punch offset
The zero position can be determined offset in millimeter units from the detected gap
position, as shown in Figure 7A.

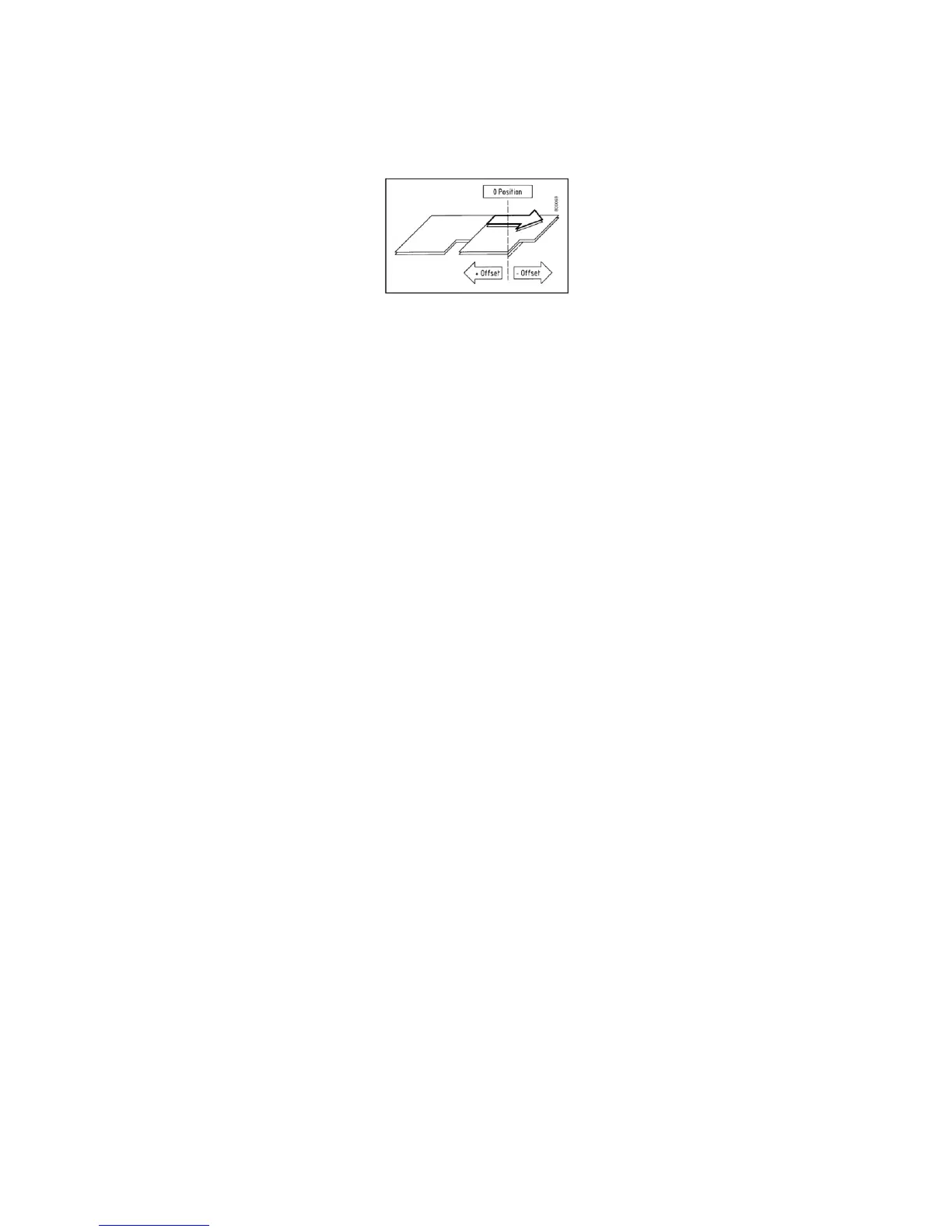

Figure 7A: Visual representation of Punch offset setting.
xxx mm: Setting range: -5 to +max. label length; Unit interval: 0.1mm
Default setting: 0 mm
Maximum offset in feed direction: -5 mm
Minimum offset against feed direction: +max. label length
Bar code multip.
Bar code multiplication factor. Alters the bar code height by multiplication by a factor
of 1 to 10 (BCHI factor).
xxx mm: Setting range: 1 to 10; Unit interval: 1; Default setting: 1
The actual bar code height is calculated by multiplying the value defined in the label
layout by the bar code height enlargement factor.
Actual bar code height = (layout value + 1) * bar code height
Example: The bar code height value is set = 3. With the command in the label layout,
the value 4 is given as the bar code height (1 is standard). Result: (4 + 1) * 3 = 15
mm. The bar code is printed with a height of 15 mm.
UPC plain-copy
The position of the first and last digit in the plain-copy line underneath the bar code
can be adjusted as required.
Raised First and last digit of the UPCA or first digit with the UPCE are raised
(default setting).
In line All digits in the decoded line are in line under the code.
EAN Read line
<>Signs Read line enclosed in "<>" signs or terminated by a ">"-Sign (EAN
13).
Standard Read line without "<>" or ">" signs (default).
