E7900 Series
7
2 Checklist and Exploded Views
For Right Hand Lock
Autodeadbolt
Right Hand
Autodeadbolt
Left Hand
ASM Right &
Left Hand
M2
M2

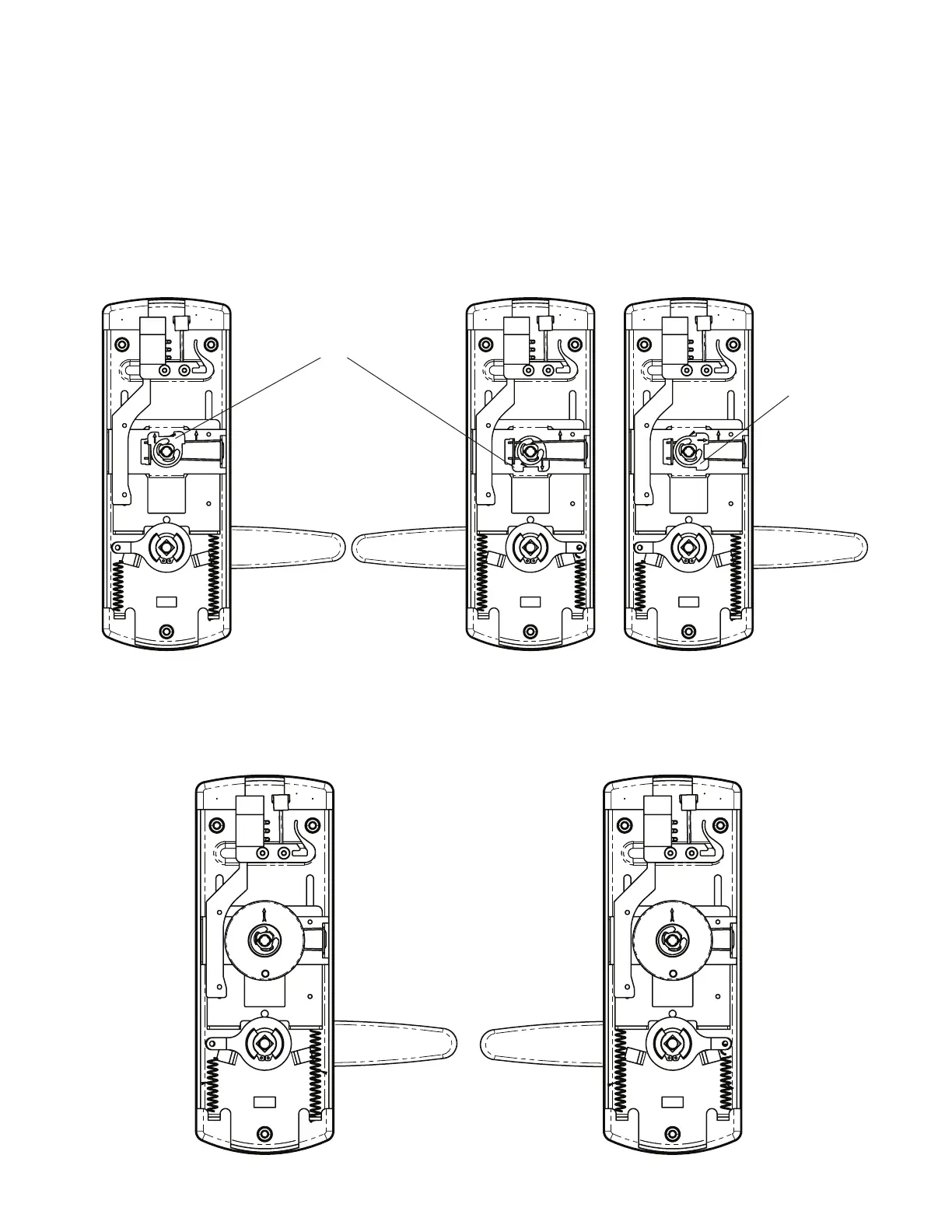

2.5 Autodeadbolt - ASM Inside Trim Assembly for 79T (Toggle Mode)
(for 79M standard mode with Autodeadbolt; ASM Office and ASM Storeroom models, use parts (M) as shown
in Appendix A.2. and A.3)
NOTE: The inside trim assembly (E) for ASM and ADB on 79T models includes the parts (M) as shown below. Position of
stopper M2 is very important
2.6 Cylindrical Unit and Inside Trim Assembly for 79M Standard Mode (see Appendix B)
2.7 Inside Trim Assembly 79T Toggle Mode Cylindrical
For Left Hand Lock
KD10114-E-1122
