Body Controller Software
144

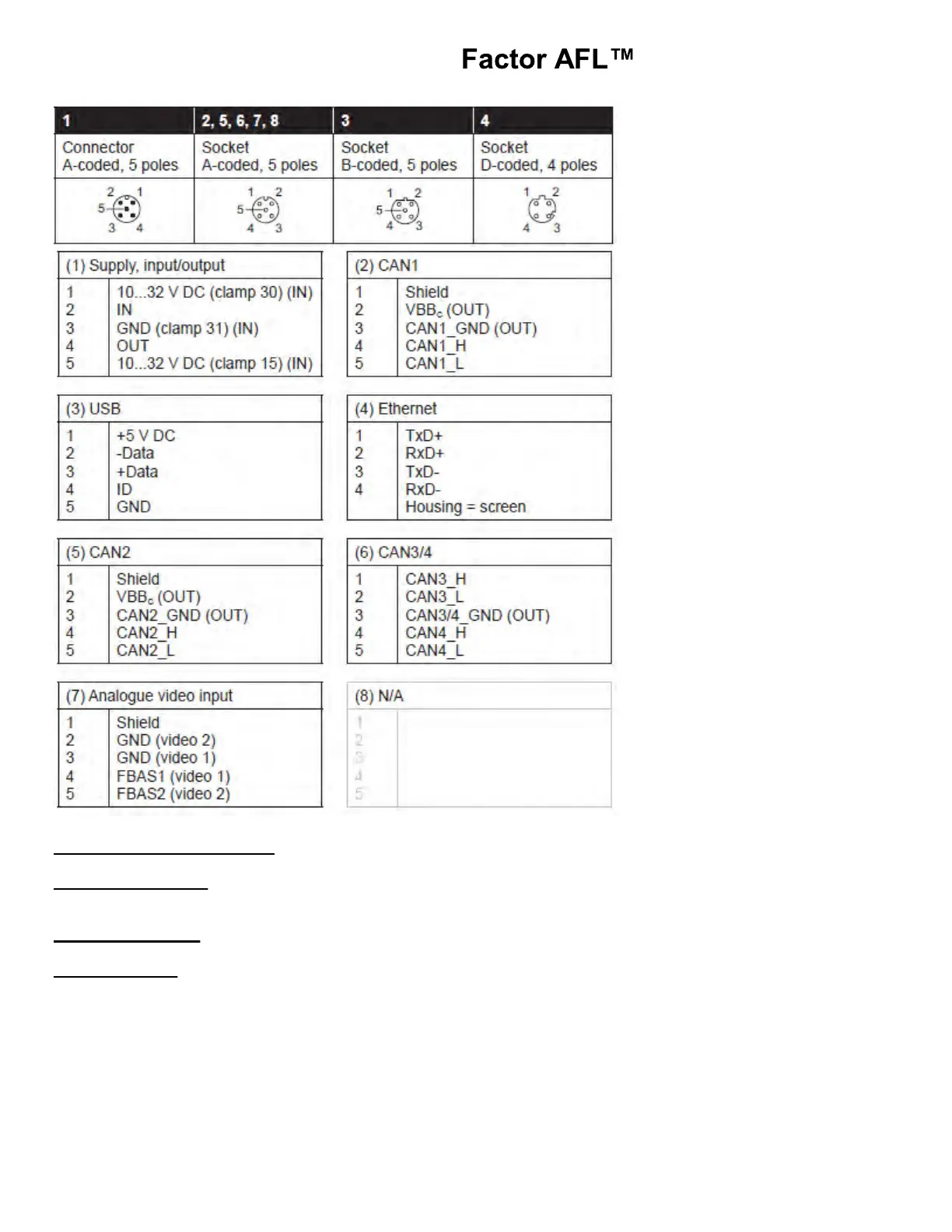

5.04.04:Interface details:
1. Ethernet Interface: Use a Shielded CAT5 cable (Shielded Twisted Pair - STP) for connection with maximum lebgth of
25 mts.
2. Ethernet Camera: The device supports Ethernet cameras.
3. USB Interface: The USB interfaces are used for temporary connection of an external keyboard, mouse or a USB
memory stick during servicing or maintenance. The USB device is connected to the display unit using a M12 connector.
NOTE: They are not intended for actual operation (Remove the USB device after their use).
